Lenovo IdeaPad Z475 (AMD) schematic, Quanta KL6B/KL6C

The motherboard schematic for Lenovo IdeaPad Z475 laptop/notebook, Quanta KL6B/C, DAKL6CMB8D0.
CPU: AMD Socket FS1-LIano APU ( CPU + GPU )
Chipset: AMD FCH Hudson-M3
OEM: Quanta Computer Inc.
PROJECT: KL6B/C
REV: 1A
Format: PDF
Total Pages: 49
File size: 1.45MB
Sale Price: 11.5$

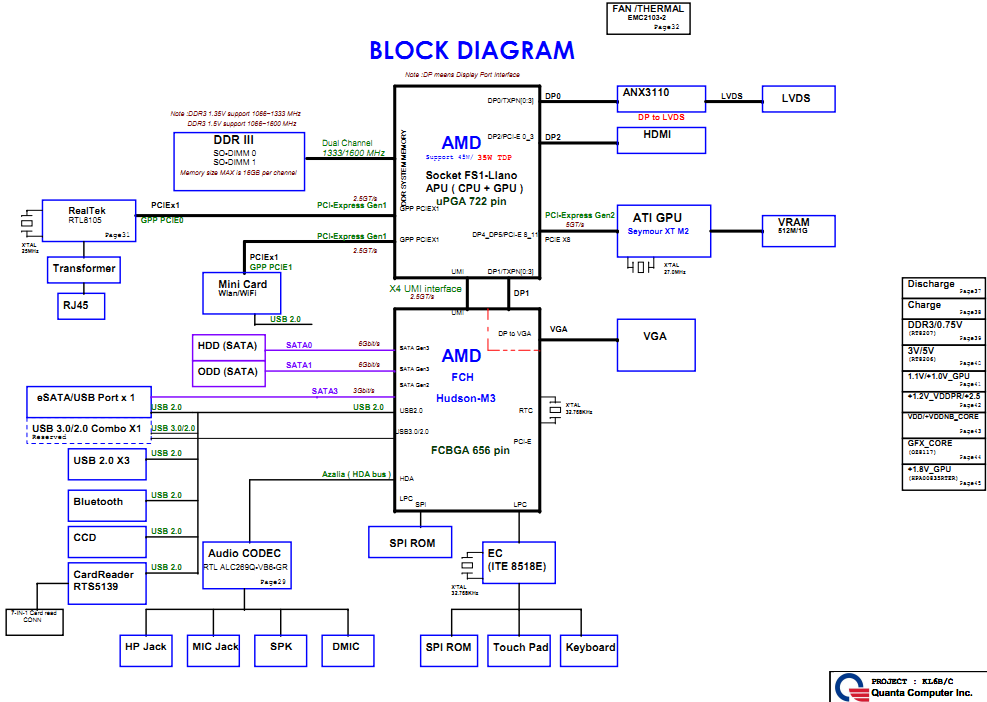

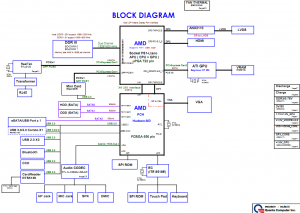

Lenovo IdeaPad Z475(AMD) Block Diagram:
