Sony MS22 Mainboard (MBX-167) schematic

The motherboard schematic for Sony MS22 Mainboard (MBX-167) laptop/notebook.
CPU: Yonah
North Bridge: Calistoga 945GM/PM/955XM + nVIDIA G72/73/73M-U
South Bridge: ICH7-M
OEM: Foxconn
Document Number: (MS22-1-01 )MainBoard (MBX-167)
PCB P/N: 1P-0068100-80SA
Format: PDF
Total Pages: 78
Sale Price: 9.5$

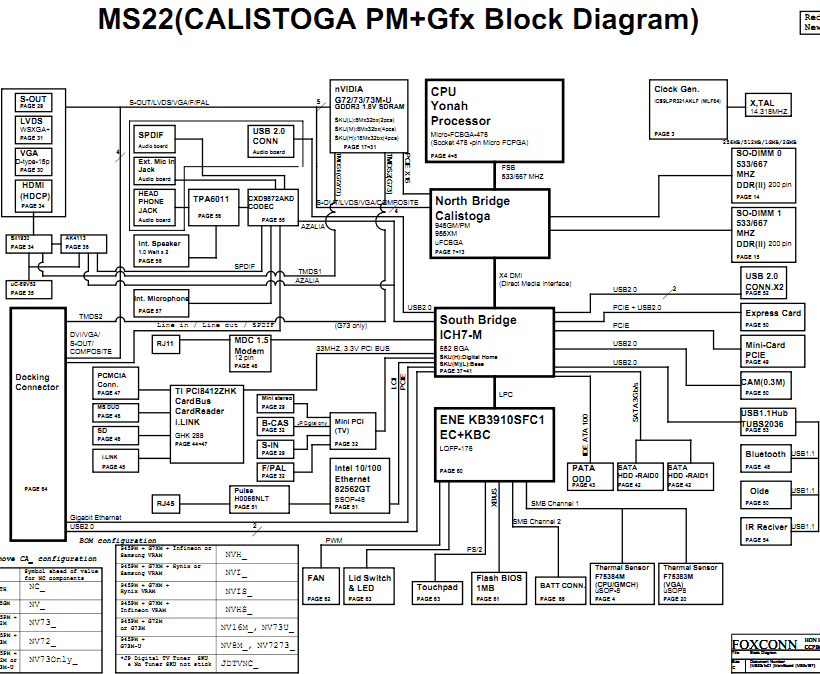

Sony MS22 MBX-167 Block Diagram:
