SONY VAIO VGN-AR130G, VGN-AR Series schematic, MS20 MBX-156

The motherboard schematic for Sony Vaio VGN-AR Series laptop/notebook, MS20 Mainboard MBX-156
for SONY VAIO VGN-AR130G, Sony VGN-AR….
CPU: Yonah
North Bridge: Calistoga 945Gm/PM/955XM + nVIDIA G72/73/73M-U
South Bridge: ICH7-M
OEM: FOXCONN
Document Number: (MS20-1-01) MainBoard (MBX-156)
PCB P/N:
1P-0064100-8011 (FUBAI)
1P-1064506-8011 (HANSTAR)
Rev: 1.00
Format: PDF
Total Pages: 80
Sale Price: 12.5$


include:

  • MS20_DVTMB_0121_1200-NETIN-FINAL.pdf
  • MS20_MP_AUDIO_1.pdf
  • MS20_MP_B-CAS_1.pdf
  • MS20_MP_CIR_1.pdf
  • MS20_MP_HDD_1.pdf
  • MS20_MP_LED_1.pdf
  • MS20_MP_MB_1(mbx-156).pdf
  • MS20_MP_POWER_1.pdf
  • MS20_MP_TP_1.pdf

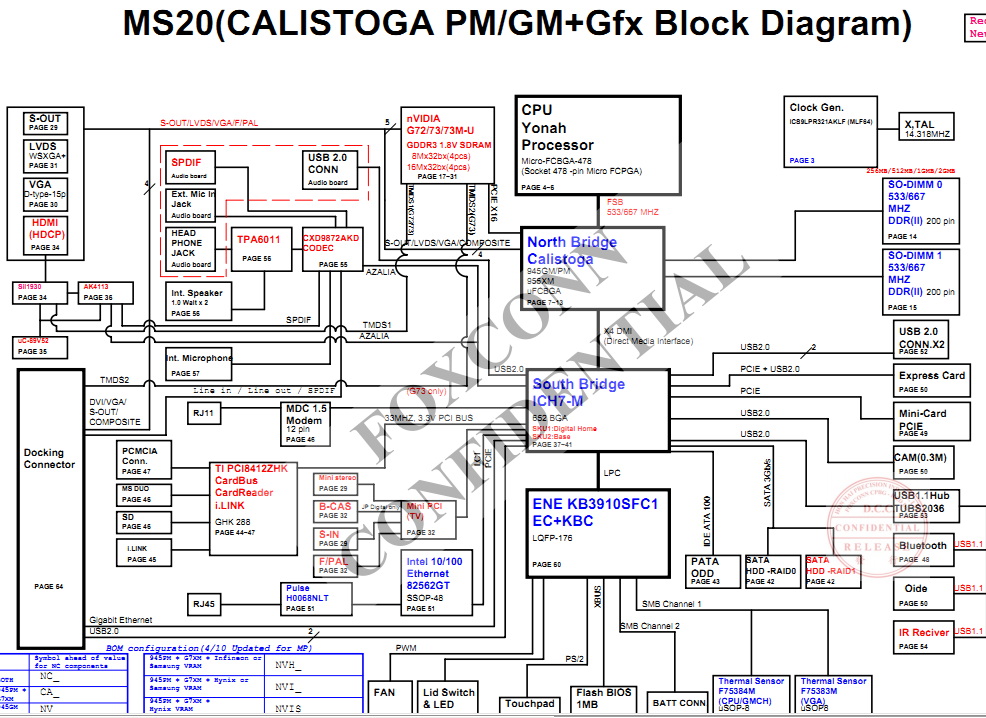

SONY VAIO VGN-AR130G (MS20 MBX-156) Block Diagram

SONY VAIO VGN-AR130G (MS20 MBX-156) Block Diagram

SONY VAIO VGN-AR130G (MS20 MBX-156) Block Diagram:
