Sony MS12 (MBX-149) Mainboard schematic

The motherboard schematic for Sony MS12 (MBX-149) laptop/notebook, MS12 Main Board
Project Code & Schematics Subject: MS12 Main Board
PCB P/N:
1P-0067100-8M11(FUBAI)
1P-0067200-8M11(NAN YA)
1P-0067500-8M11(HANSTAR)
CPU: Yonah
North Bridge: Calistoga 945GM/GML/PM + nVIDIA G73M GDDR Video-RAM
South Bridge: ICH7-M
OEM: FOXCONN
Document Number: MS12-1-01 ( MBX-149 )
Rev: 2.0
Format: PDF
Total Pages: 66
File size: 1.73MB
Sale Price: 12.5$

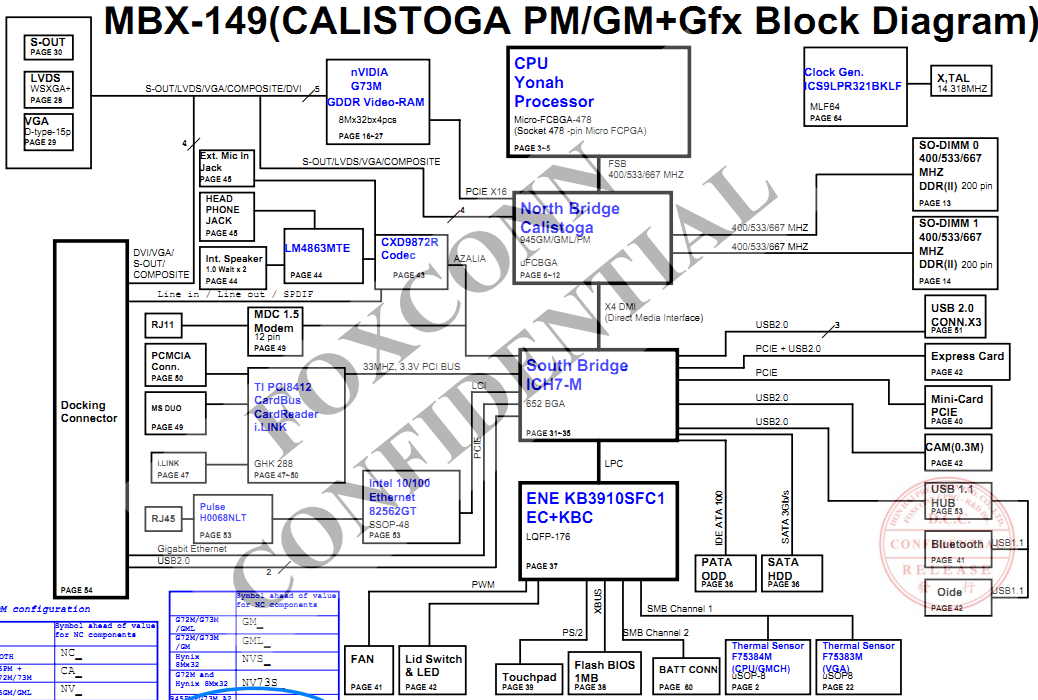

Sony MS12 (MBX-149) Block Diagram:
