Sony Vaio VGN-FE Series schematic, MS51 MBX-152

The motherboard schematic for Sony Vaio VGN-FE series, MS51 MBX-152 Main Board.
CPU: Yonah/Celeron-M/Merom
North Bridge: Calistoga + n-VIDIA G72M / G73M
South Bridge: ICH7-M
OEM: Foxconn
Project Code & Schematics Subject: MS31/51 Main Board
Document Number: MS51(MBX-152)
Rev: 0.30
Format: PDF
Total Pages: 67
File size: 1.66MB
Sale Price: 10.5$

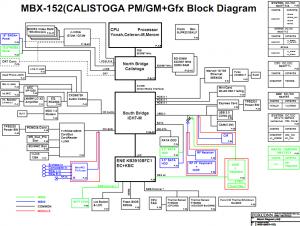

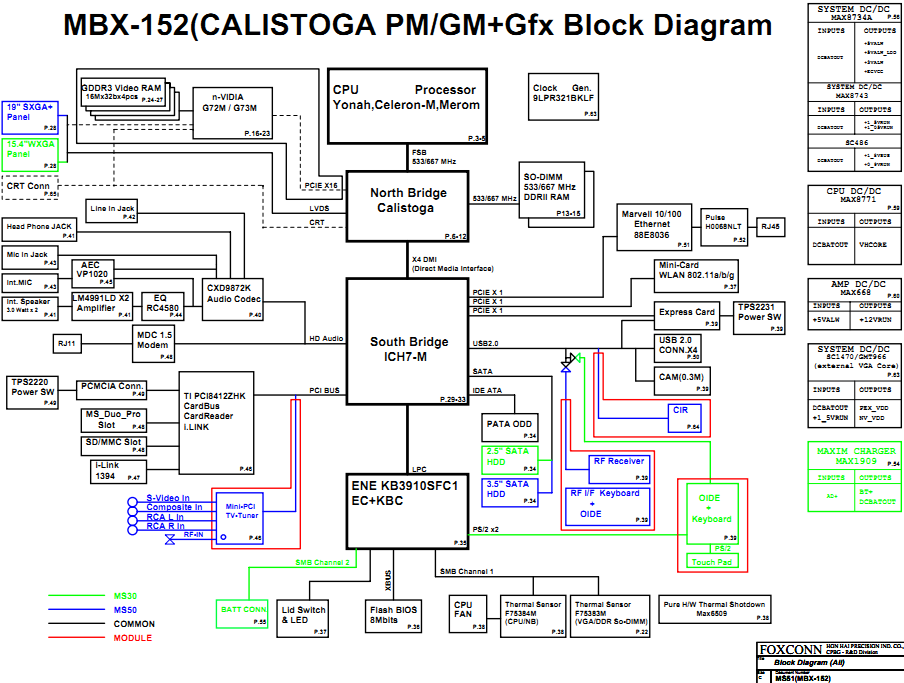

MS51 MBX-152 Block Diagram:
