Sony Vaio VGN-FE Series schematic, MS30-1-01 MBX-152

Sony Schematics

The motherboard schematic for Sony Vaio VGN-FE series, MBX-152 MS30-1-01 MainBoard.
CPU: Yonah/Celeron-M/Merom
North Bridge: Calistoga
South Bridge: ICH7-M
OEM: Foxconn
Project Code & Schematics Subject: MS30 Mainboard
PCB P/N: 1P-0063100-6011
Document Number: MS30-1-01
Rev: 1.00
Format: PDF
Total Pages: 67
File size: 1.98MB
Gift:

  • mbx-152 POWER STRUCTURE DIAGRAM & Block Diagram.pdf
  • ms30 pvt sch_db_swx228-0302_.pdf (KB I/F BOARD)
  • MS30_PVT_status_bd_swx-227_0302.pdf (STATUS LED BOARD)
  • ms30-pvt_lid_bd_swx-236_0209.pdf (LID Switch)

Sale Price: 11.5$

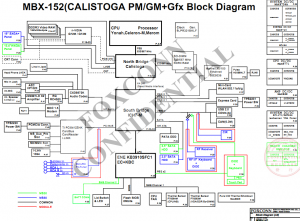

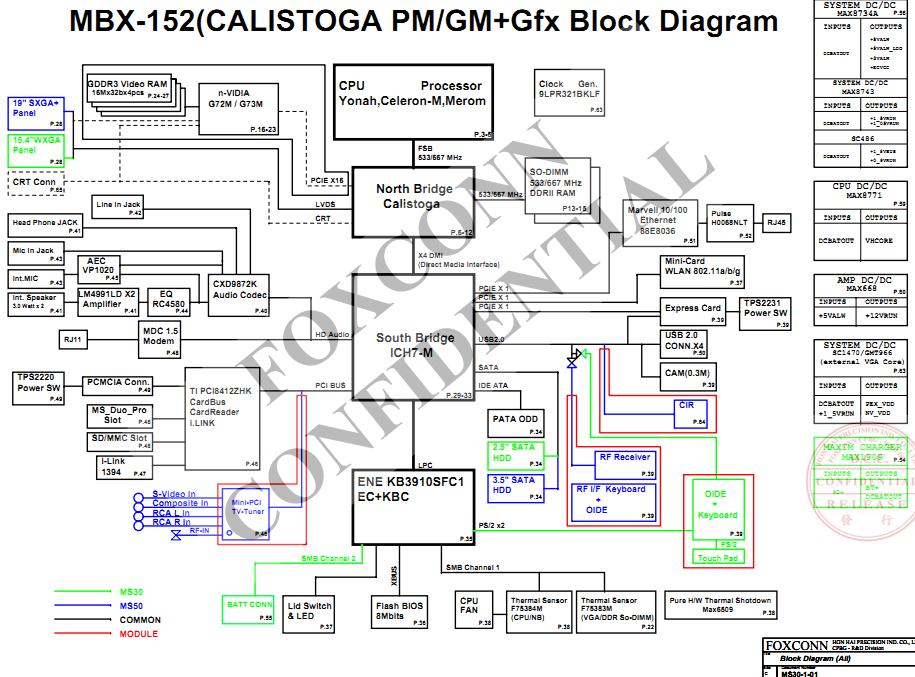

MS30-1-01 MBX-152 Block Diagram:
MS30-1-01 MBX-152 Block Diagram

MS30-1-01 MBX-152 Block Diagram
