Sony VGN-AR130,VGN-AR320E schematic, MS21 MBX-164

The motherboard schematic for Sony Vaio VGN-AR130, Sony Vaio VGN-AR320E laptop/notebook, MS21 MP Main Board, MBX-164.
Project Code & Schematics Subject: MS21 MP Main Board
PCB P/N:1P-0068500-8011 (Hannstar), 1P-0068100-8011 (FUBAI)
CPU: Yonah
North Bridge: 945GM/PM 955XM + nVIDIA G72/73/73M-U
South Bridge: ICH7-M
OEM: FOXCONN
Document Number: (MS21-1-01 )MainBoard (MBX-164) TYPE2
Rev: 1.1
Format: PDF
Total Pages: 78
Sale Price: 12.5$

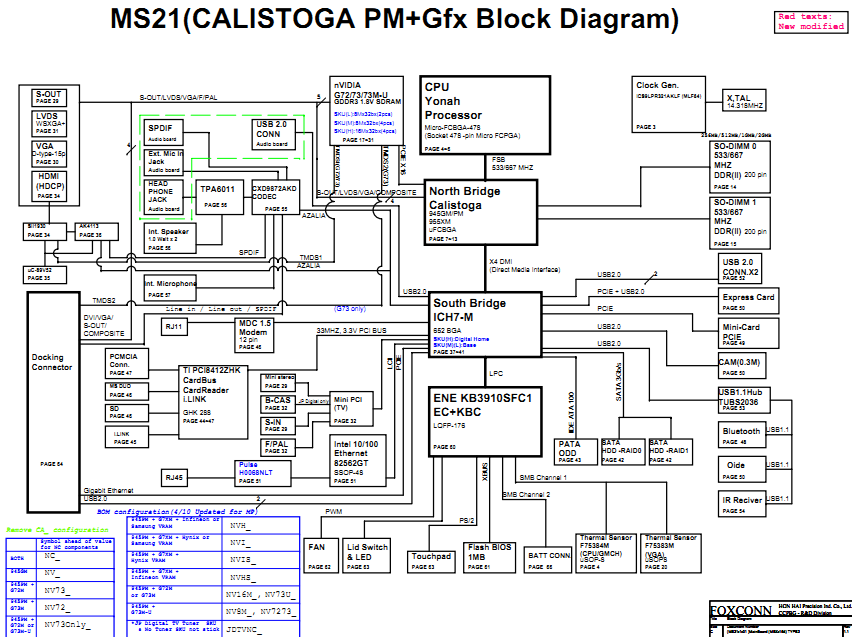

Sony VGN-AR130,VGN-AR320E(MS21 MBX-164) Block Diagram:

Sony VGN-AR130,VGN-AR320E(MS21 MBX-164) Block Diagram

Sony VGN-AR130,VGN-AR320E(MS21 MBX-164) Block Diagram
