Toshiba Satellite M65 schematic diagram(Discrete)

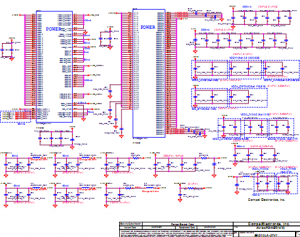

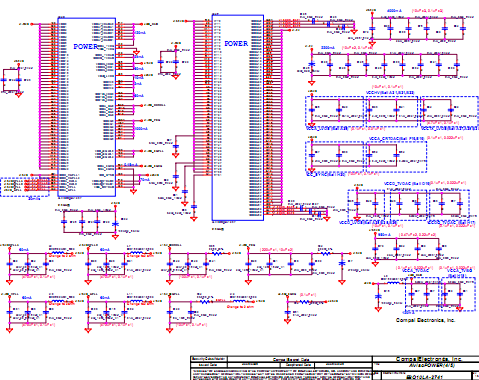

The motherboard schematic diagram(PDF) for Toshiba Satellite M65 laptop/notebook. EBQ10 LA-2741 Schematics Document. Intel Dothan with 915PM(GM)/910GML + DDRII + ICH6M (nVidia NV43M or ATi M24/M26).
CUP: Pentium-M/Celeron-M Processor
North Bridge: Intel 915PM/GM, 910GML
South Bridge: Intel ICH6-M
OEM: Compal Electronics, Inc.
File Name: LA-2741
Model Name: EBQ10
Document Number: EBQ10 LA-2741
Format: PDF
Total Pages: 49
File size: 1.25MB
Language: English
Sale Price: 9.5$

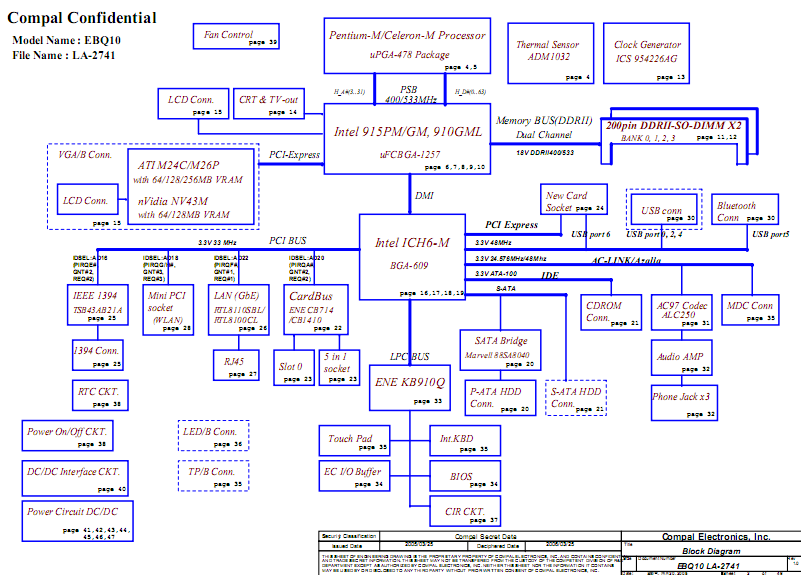

Toshiba Satellite M65 Block Diagram:
