Toshiba Satellite P775D schematic, QHRAE LA-7213P

The schematic diagram for Toshiba Satellite P775D notebook/laptop, QHRAE Mainboard, Compal LA-7213P, Superior 10AS/10ASG.
CPU: AMD APU FS1
AMD GPU AMD Whistler PRO, 128bit with 1GB/2GB DDR3 / AMD Whistler LP, 128bit with 1GB/2GB DDR3
Chipset: AMD FCH Hudson M2/M3
OEM: Compal Electronics, Inc.
Title: SCHEMATIC, MB A7213
Document Number: 4019D8
Rev: B
Format: PDF
Total Pages: 51
File size: 835KB
Sale Price: 11.5$

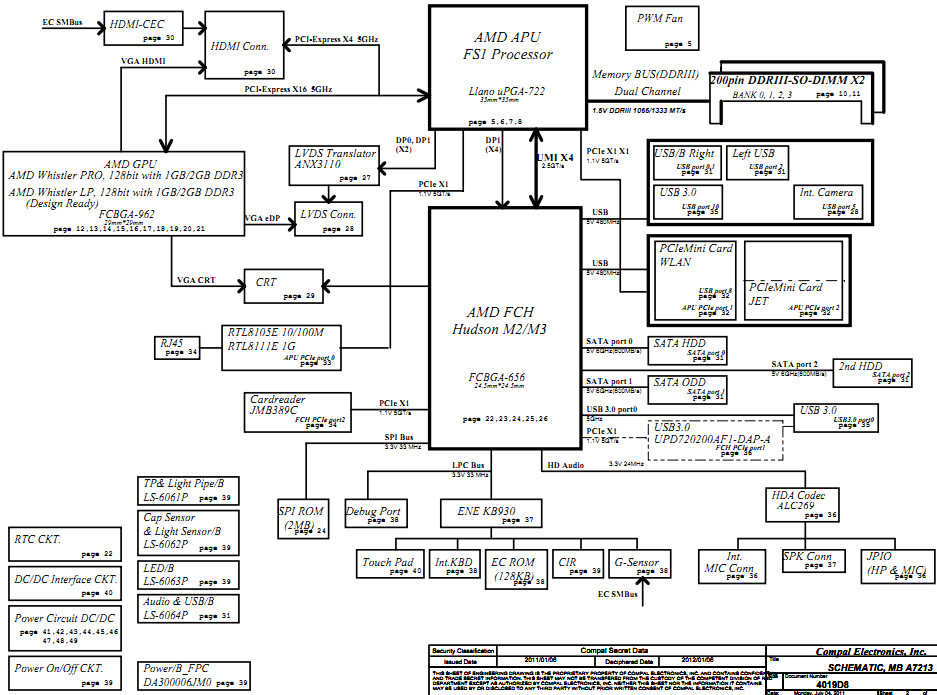

Toshiba Satellite P775D Block Diagram:
