Toshiba Satellite U940/U945 schematic, VCUAA LA-9161P

The schematic diagram for Toshiba Satellite U940, Toshiba Satellite U945 notebook/laptop, VCUAA Mainboard, Compal LA-9161P, Metis 10F/10FG.
CPU: Intel Ivy Bridge 17W + DDRIII
VGA (DDR3) nVIDIA N13P-GL with 2GB
Chipset: Intel PCH Panther Point
OEM: Compal Electronics, Inc.
Document Number: VCUAA
Rev: 1.0
Format: PDF
Total Pages: 53
File size: 785KB
Sale Price: 11.5$

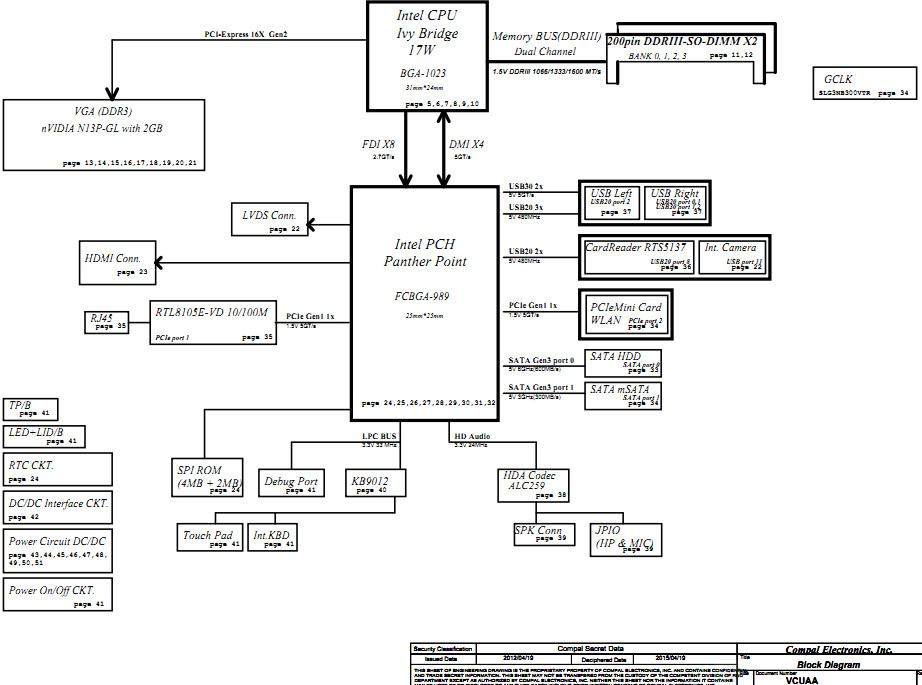

Toshiba Satellite U940/U945 Block Diagram:
Toshiba Satellite U940 U945 Block Diagram

Toshiba Satellite U940 U945 Block Diagram
