Xiaomi RedmiBook Pro 15 2022 RMA2202-BD BitLand BM5124 Schematic

Xiaomi Schematics

Motherboard Schematic (*.pdf) for Xiaomi RedmiBook Pro 15 2022 RMA2202-BD BitLand BM5124, Intel Comet Alder-P Platform with LPDDR54+NV GN20-S5/GN18-S5 GPU.
Model: Xiaomi RedmiBook Pro 15 2022 RMA2202-BD
Motherboard: BitLand BM5124_V1.3
Format: PDF
Total Sheet: 65
Language: English
Sale Price: 9.5$ (include Boardview)

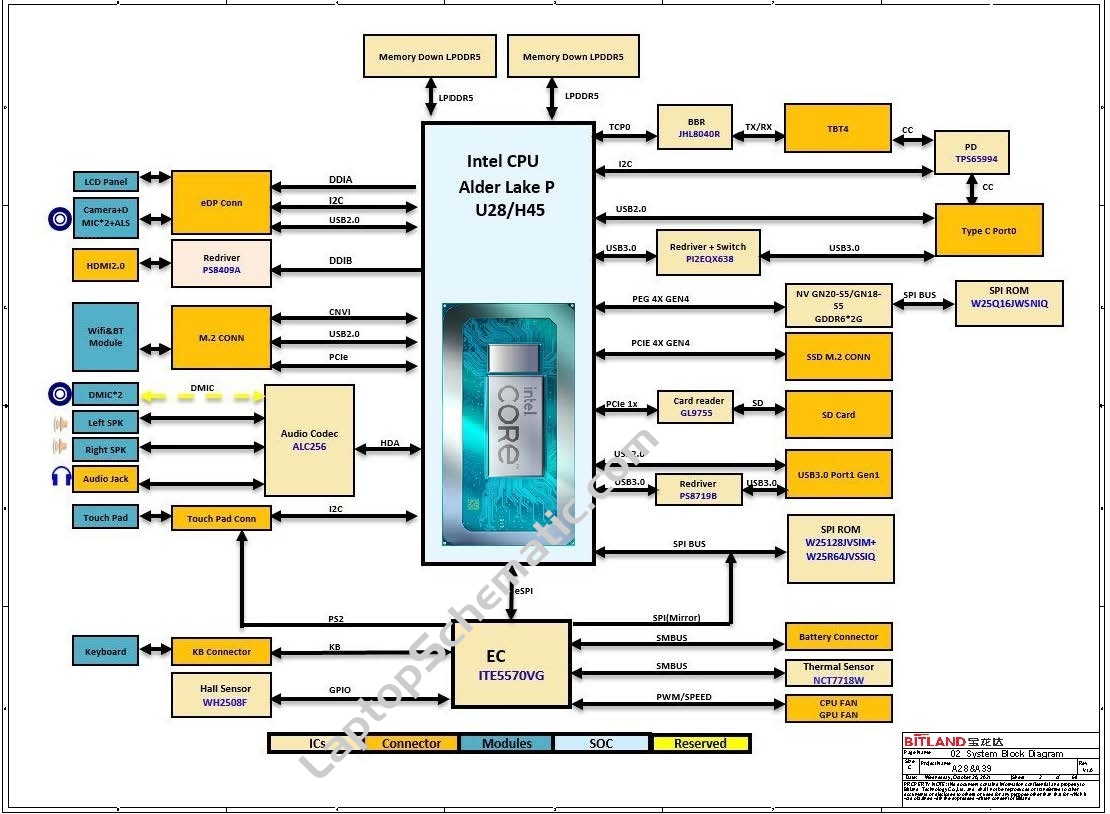

Xiaomi RedmiBook Pro 15 2022 RMA2202-BD BitLand BM5124 Schematic
