Lenovo Legion 5-15ACH6H R7000P R9000P 2021H Schematic & Boardview NM-D562

Lenovo Schematics

Schematic (*.pdf), Boardview file (*.tvw) for Lenovo Legion 5-15ACH6H R7000P R9000P 2021H laptop, LCFC HY660 HY661 HY561 HY572 HY56C HY57K NM-D562 Motherboard.

CPU/HUB/RAM: AMD-Cezanne-FP6 / DDR4
GPU: DIS (nVidia GN20-E3/E5 (GeForce RTX 3060/3070) + GDDR6)
EC/SIO : ITE IT8227
PCB: NM-D562
OEM: LCFC
Language: English
Format：PDF, TVW
Sale Price: 13.5$

Boardview Software

  • Open Boardview(*.tvw) file with BoardViewer (Download)

Original document, no irrelevant watermark.

What’s included:

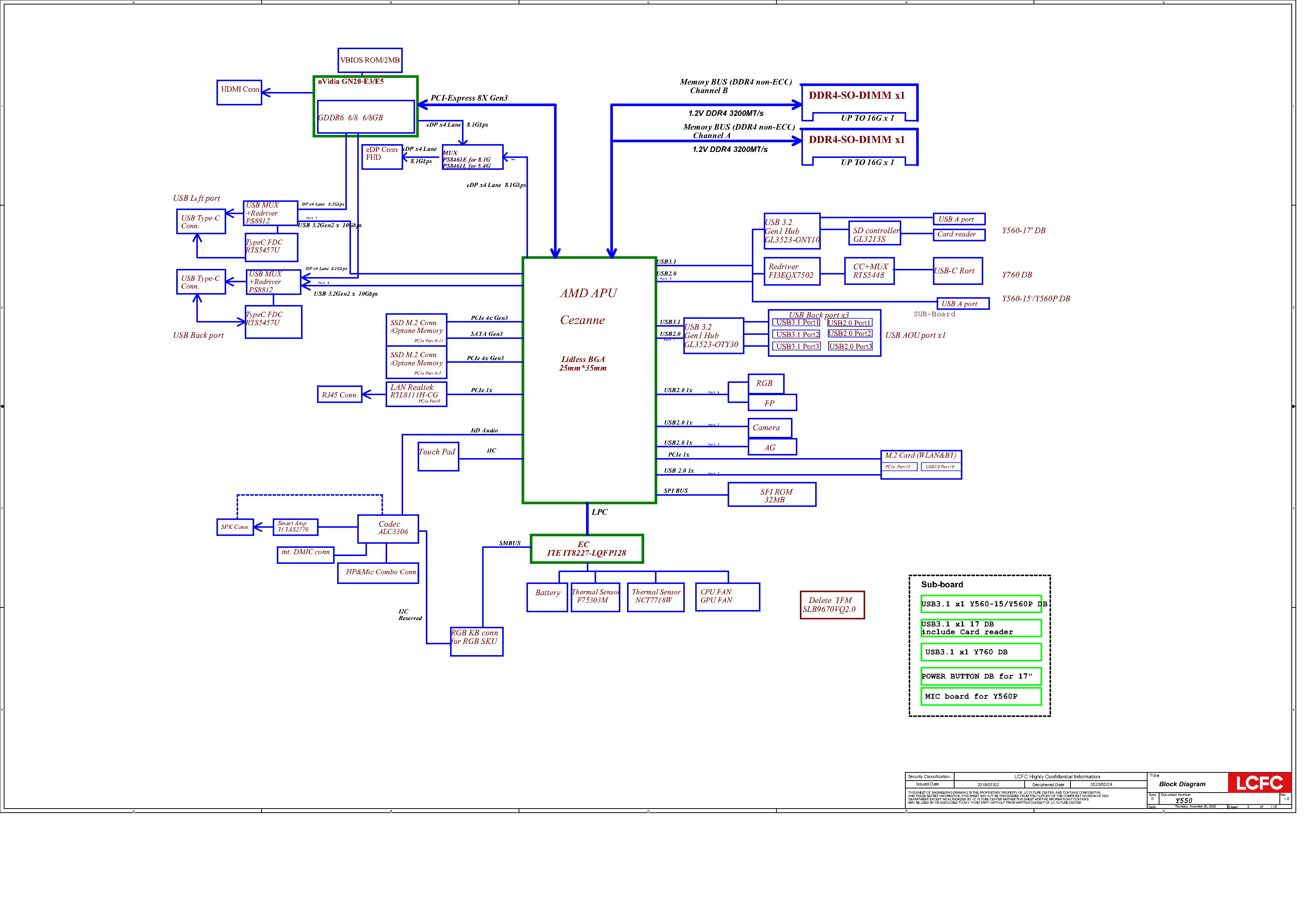

— Schematic Diagram (*.pdf) for Motherboard

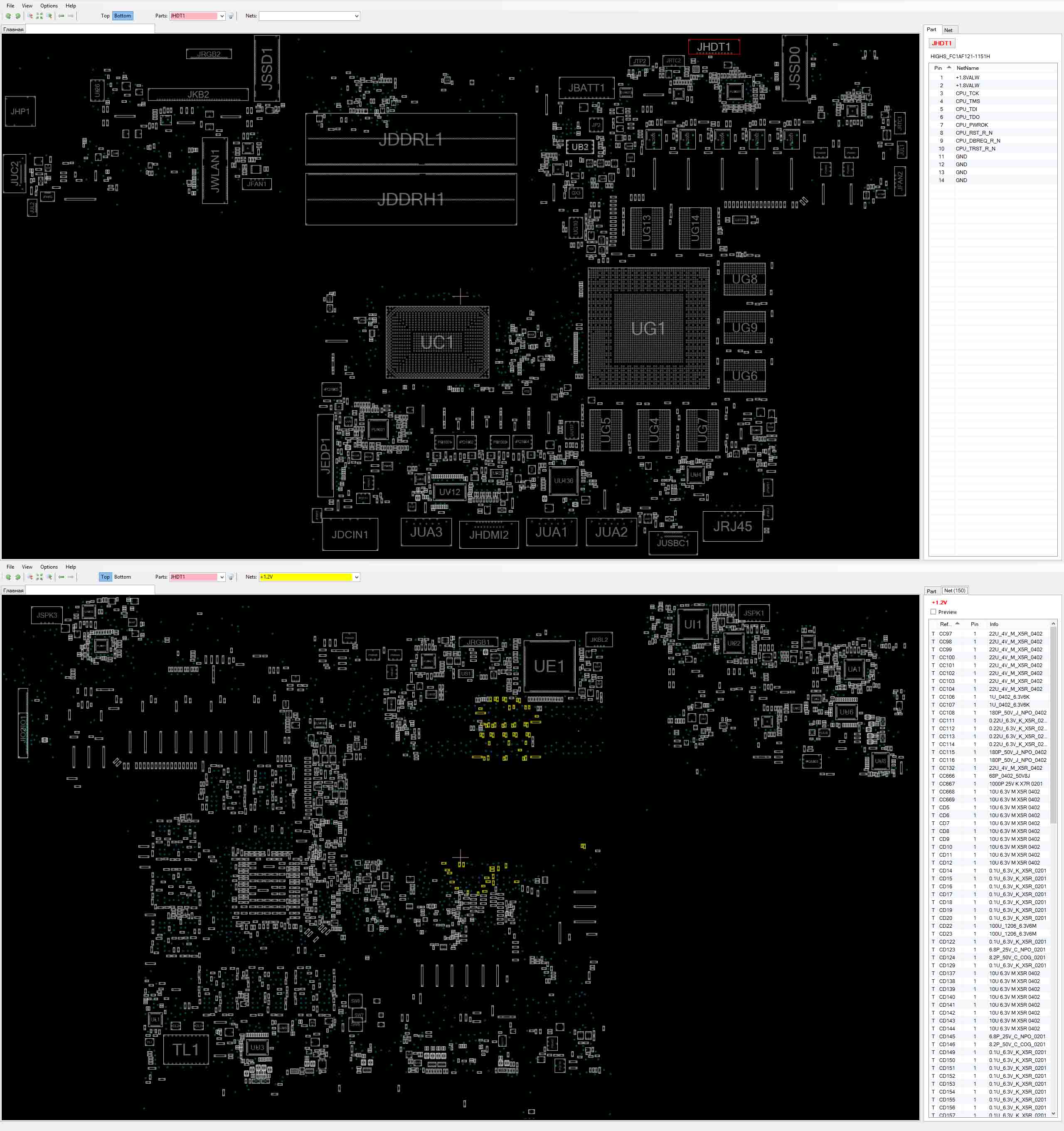

— BoardView file (*.tvw) for Motherboard
