Acer Aspire 5750, Gateway NV57H schematic, LA-6901P

The motherboard schematic for Acer Aspire 5750, Gateway NV57H series laptop/notebook, Compal LA-6901P, P5WE0 M/B Schematics Document.
CPU: Intel Sandy Bridge + Nvidia N12P GS/GV
Chipset: Intel Cougar Point-M PCH
OEM: Compal Electronics, Inc.
Model Name : P5WE0
File Name : LA-6901P
BOM P/N:43
Document Number: P5WE0 M/B LA-6901P Schematic
Rev: 0.1
Format: PDF
Total Pages: 59
File size: 1.47MB
Sale Price: 11.5$

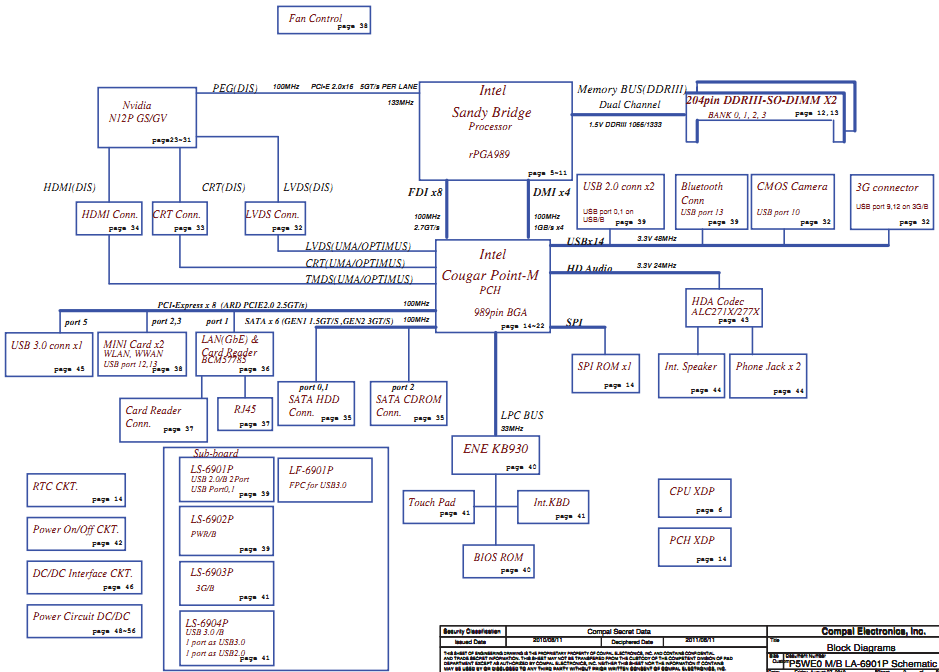

Acer Aspire 5750 Gateway NV57H Block Diagram:
