HP Envy Sleekbook 6 schematic,COMPAL QAU30 LA-8661P

The schematic diagram for HP Envy Sleekbook 6 laptop/notebook, Compal LA-8661P Mainboard, Lotus M/B Schematic Documents, Intel Ivy Bridge ULV Processor with DDRIII + Panther Point.
CPU: Intel IVY Bridge ULV + DDR3
VGA AMD Thames-XT
Chipset: Intel Panther Point PCH
OEM: Compal Electronics, Inc.
Model name: Lotus
File name: LA8661P
Document Number: LA-8661P
Rev: 0.1
Format: PDF
Total Pages: 66
File size: 1.50MB
Sale Price: 11.5$

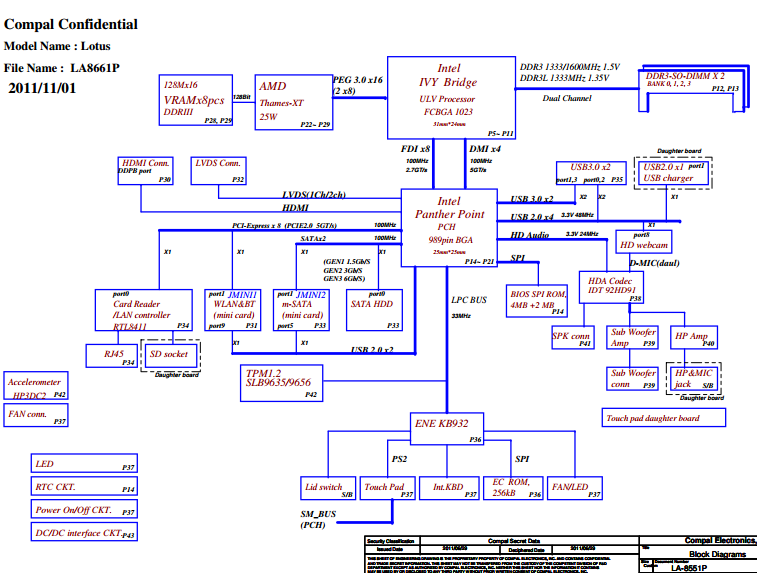

HP Envy Sleekbook 6 Block Diagram:
