Lenovo Ideapad 300-15ISK NM-A711 Schematic Circuit Diagram
The motherboard schematic for Lenovo Ideapad 300-15ISK laptop/notebook, CY420/CY510 NM-A711 motherboard.
CPU: Intel Skylake H
Project Name: SuperX 5B
SCH Vertion: VB
Format: PDF
Total Pages: 71
Sale Price: 13.5$
Lenovo Ideapad 300-15ISK NM-A711 Cover Sheet:
Lenovo NM-A711 Cover Sheet

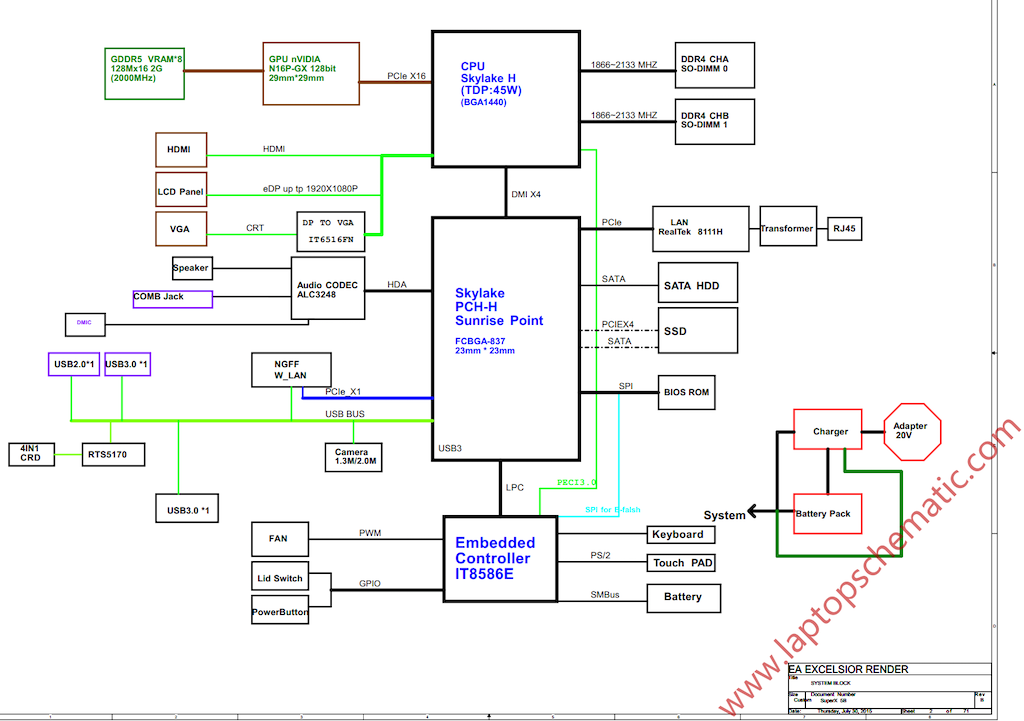

Lenovo Ideapad 300-15ISK NM-A711 Block Diagram:
Lenovo NM-A711 Block Diagram
