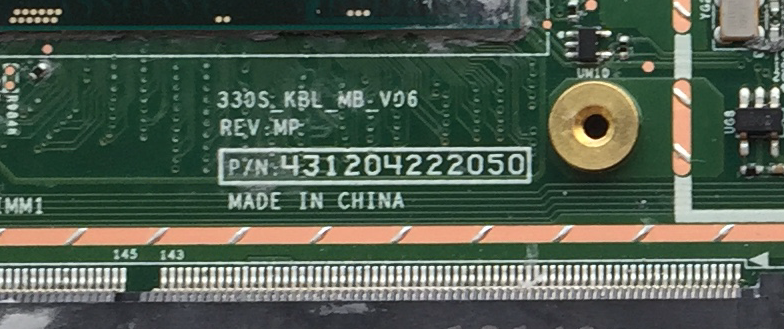

Lenovo IdeaPad 330S-14IKB 330S-15IKB Schematic & Boardview & BIOS 330S-KBL-MB-V06

Schematic (*.pdf), Boardview (*.pdf), BIOS (*.bin) for Lenovo IdeaPad 330S-14IKB, Lenovo IdeaPad 330S-15IKB laptop, 330S-KBL-MB-V06 Motherboard.
CPU/HUB: Intel KabyLake-U + DDR4
GPU: UMA or DIS (AMD R17M-P1-50) + GDDR5
EC: ENE KB9028
Format: Schematic (*.PDF, Searchable) / Boardview (*.PDF) / BIOS (*.bin)
Sale Price: 15.5$

Original document, no irrelevant watermark.

File list:
ENE.bin.zip
330S-14IKB, 330S-15IKB 7SCN20WW.BIN.zip

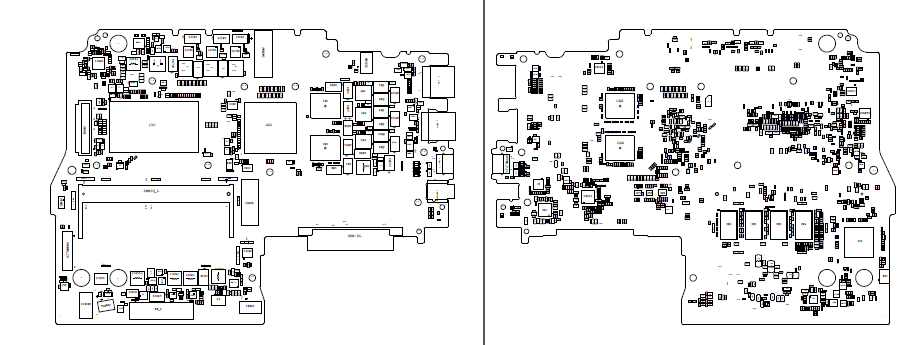

330S-KBL Silkscreen_LO-boardview.pdf

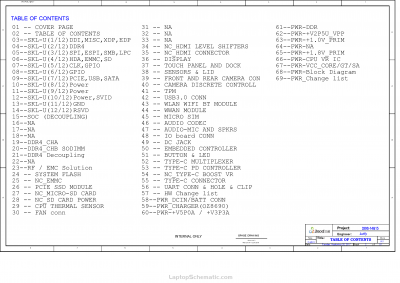

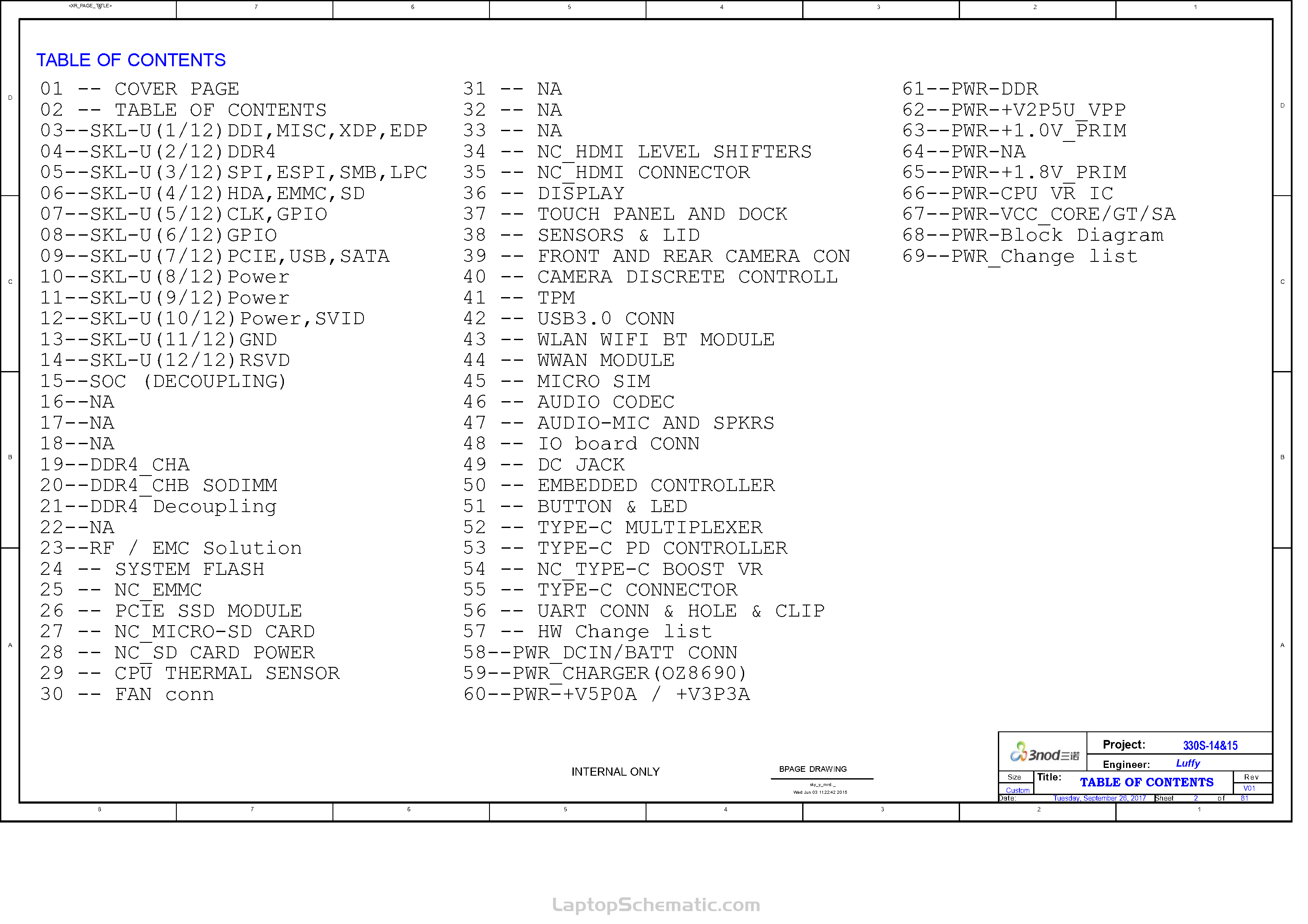

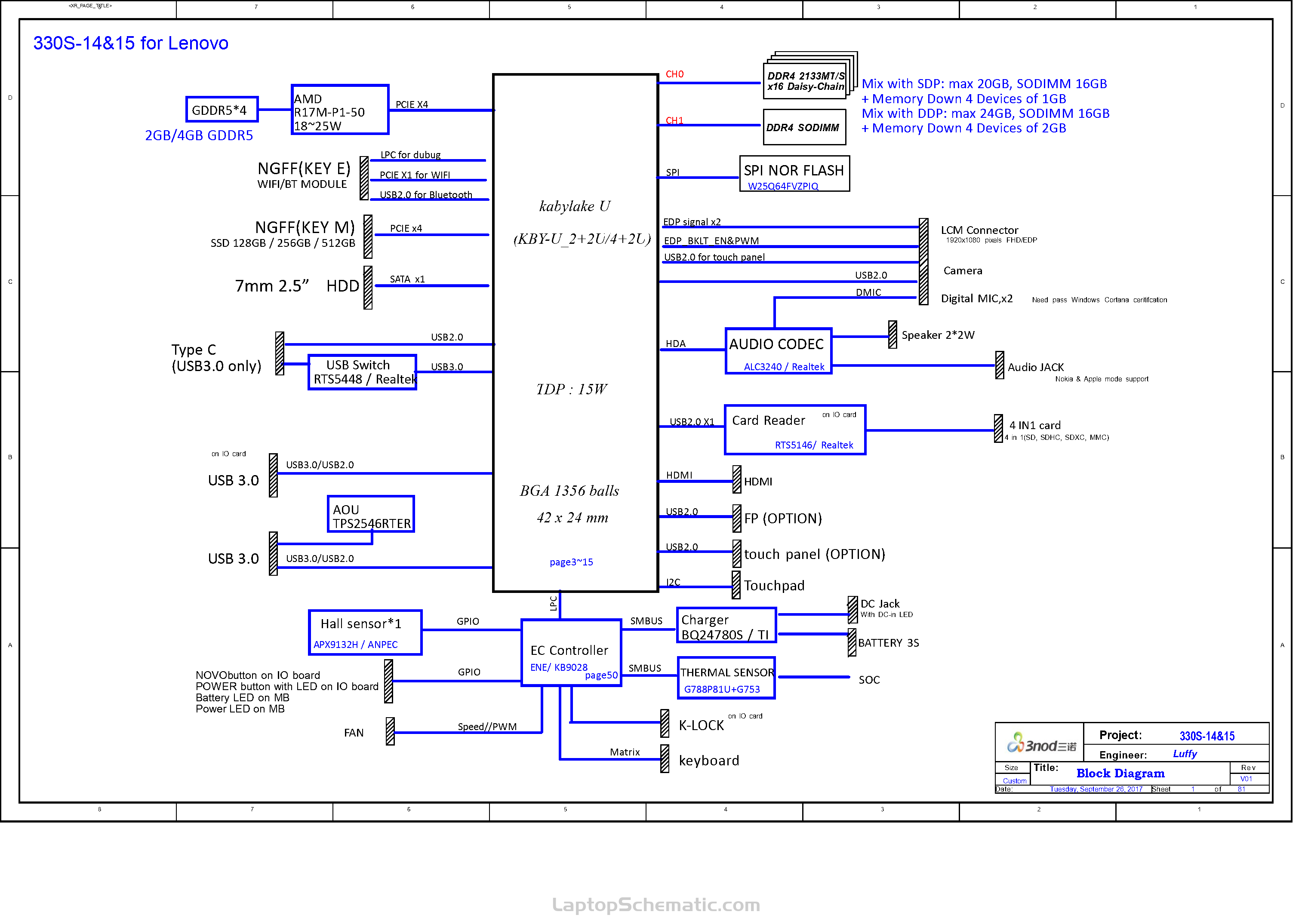

330S-KBL Schematic Diagram.pdf
