Lenovo IdeaPad 300-17ISK Schematic diagram, BMWD1 NM-A491

The motherboard schematic diagram for Lenovo IdeaPad 300-17ISK laptop/notebook, BMWD1 M/B Schematics Document, Intel Skylake U22 with DDRIIIL + AMD Exo-Pro-S3 GPU, BMWD1 NM-A491 motherboard.
CPU: Intel SKL-U
GPU AMD Exo-Pro (DIS) /(UMA)
Document Number: BMWD1
Format: PDF
Searchable PDF file, No watermark of website
Total Pages: 68
Language: English
Sale Price: 12.5$

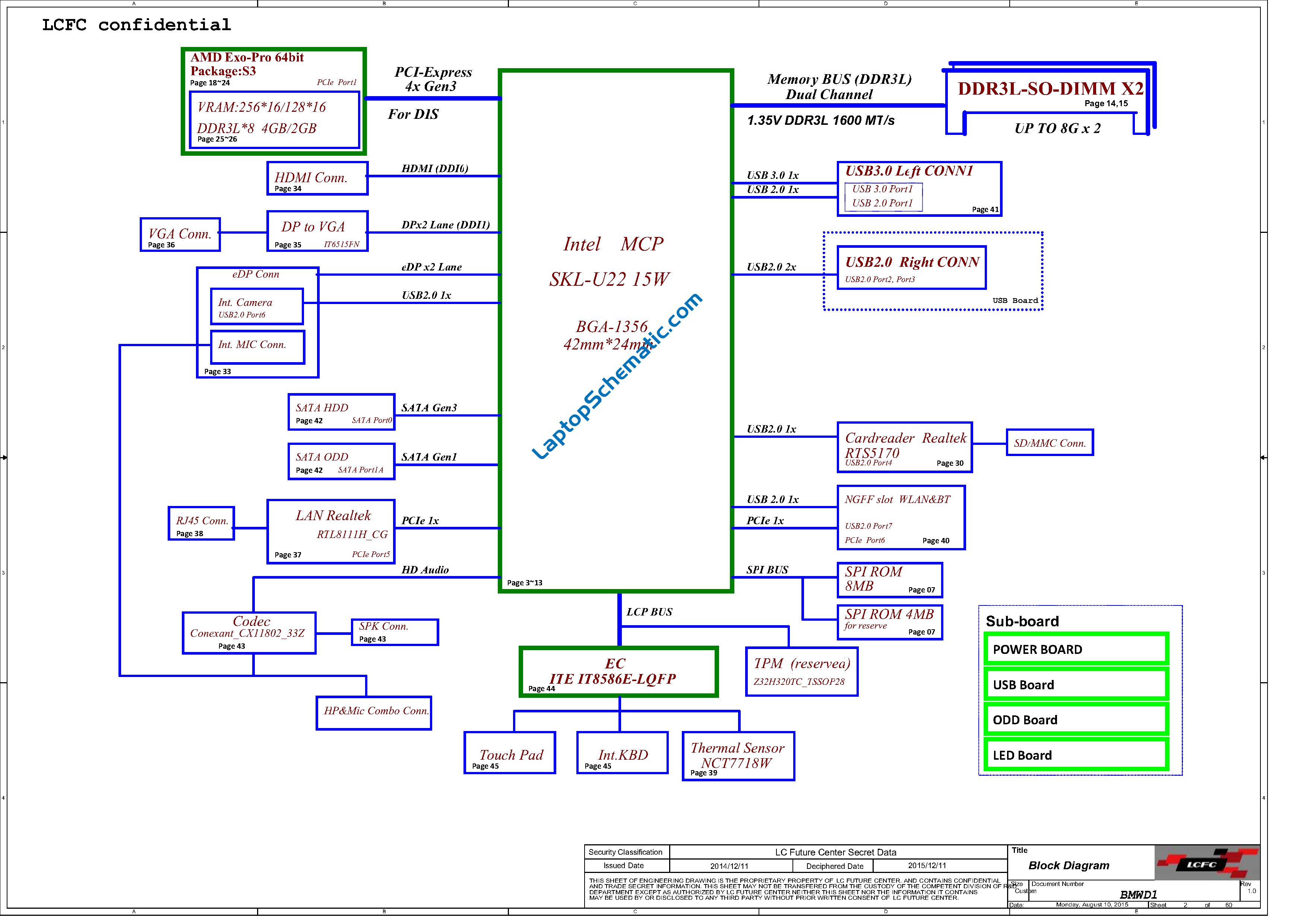

Lenovo IdeaPad 300-17ISK BMWD1 NM-A491 Block Diagram:
Lenovo IdeaPad 300-17isk LCFC BMWD1 NM-A491 Rev 1.0 Schematic
