Lenovo IdeaPad 330-15IGM 330-14IGM Schematic & Boardview, EG431/EG532 NM-B661

Lenovo Schematics

The motherboard schematic diagram and Boardview (.TVW) for Lenovo IdeaPad 330-15IGM, Lenovo IdeaPad 330-14IGM laptop/notebook, 330-IGM M/B EG431/EG532 Schematics Document, Intel Geminilake M-Processor with DDR4 + AMD LV2-R17M-M1-70 GPU, EG431/EG532/FG5N2 NM-B661 motherboard.
CPU/RAM: Intel Geminilake-M / DDR4
GPU: UMA or DIS (AMD LV2-R17M-M1-70 + GDDR5)
EC: ITE IT8986E/BX
Document Number: EG431/EG532
Board Number: NM-B661
PN: DA600013W00
OEM: LCFC
Format: PDF, TVW
Searchable PDF file, No watermark of website
Language: English
Total Pages: 60
Sale Price: 16.5$ (include Boardview)

Also included:
— BoardView file and BoardView software
— Power Block Diagram

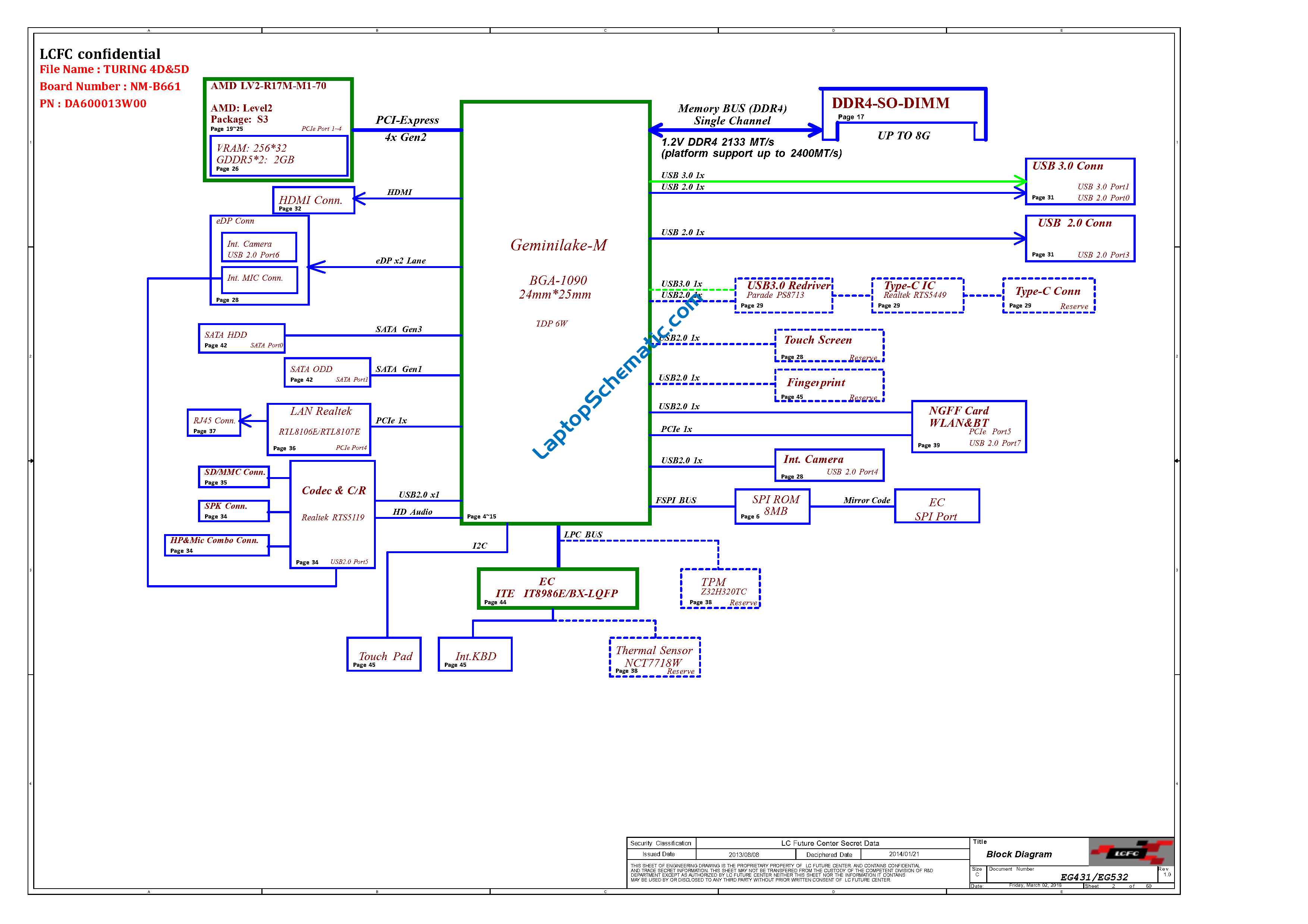

Lenovo IdeaPad 330-15IGM 330-14IGM NM-B661 Schematic:
Lenovo 330-15IGM 330-14IGM LCFC NM-B661 Schematic

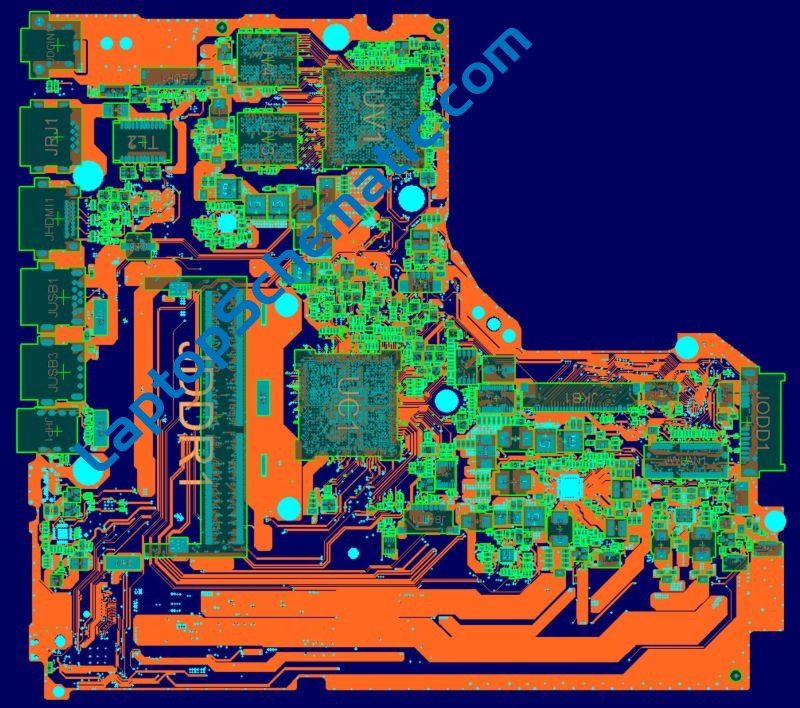

Lenovo IdeaPad 330-15IGM 330-14IGM NM-B661 BoardView:

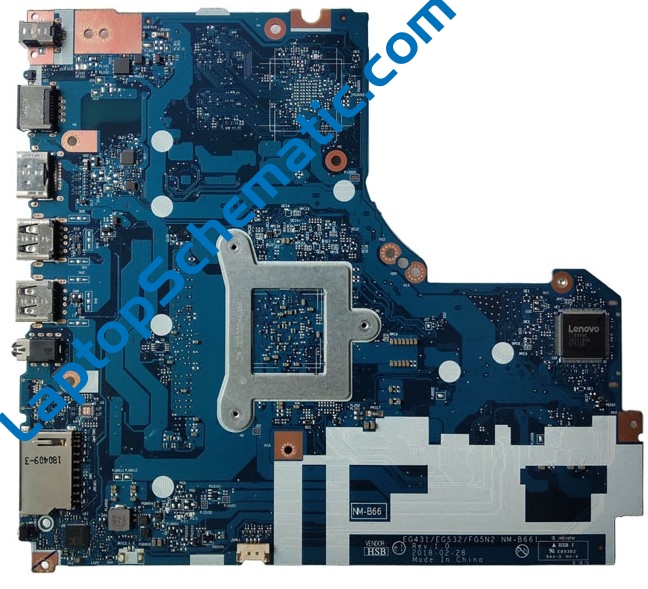

Lenovo IdeaPad 330-15IGM 330-14IGM NM-B661 Motherboard:
