Lenovo Thinkpad SL400 schematic,Rocky40/50 Discrete
The motherboard schematic for Lenovo Thinkpad SL400 notebook/laptop, Rocky40/50 Discrete.
CPU: Intel Penryn
North Bridge: Cantiga PM
South Bridge: ICH9M
nVIDIA NB9M-GS
OEM: ASUS
Project Name: Rocky40/50
Format: PDF
Total Pages: 94
File size: 1.61MB
Language: English
Sale Price: 15.5$

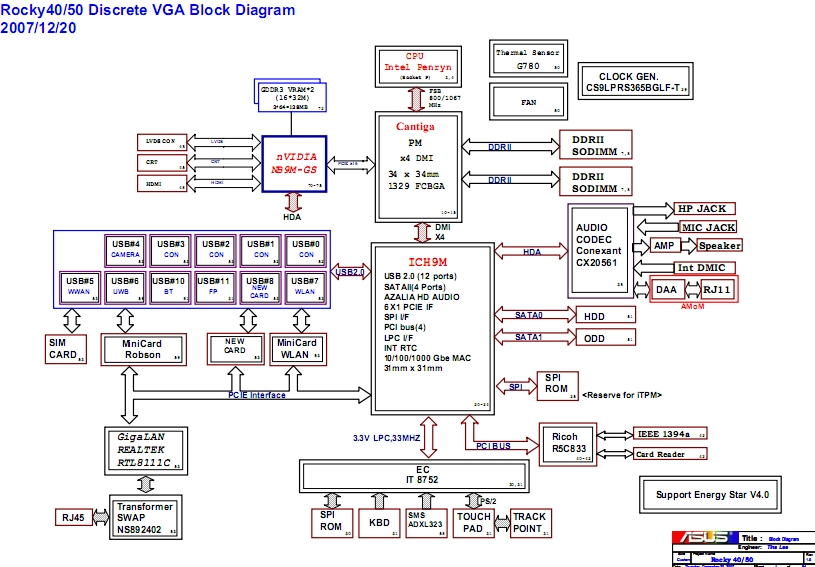

Thinkpad SL400,Rocky40/50 Discrete Block Diagram:
Thinkpad SL400 (Discrete) Block Diagram

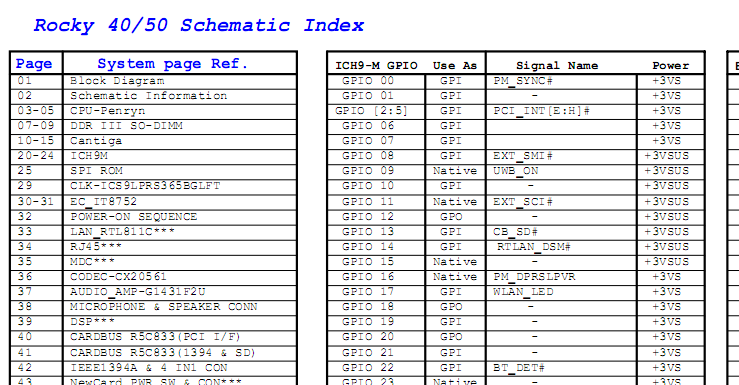

Rocky 40/50 Schematic Index:
SL400 Schematic Index
