Lenovo ThinkPad Yoga S1 Schematic & BIOS, ZIPS1 LA-A341P

Lenovo Schematics

The Schematic (*.pdf) & BIOS (*.bin) for Lenovo ThinkPad Yoga S1 laptop, ZIPS1 LA-A341P Motherboard.
CPU/RAM: Intel Haswell / DDR3L
GPU: UMA)
EC: KB9012QF
Format：PDF (Searchable) / BIN
Language: English
Sale Price: 12.5$

Original document, no irrelevant watermark.

BIOS (MAIN SBA)
Model: Lenovo ThinkPad Yoga S1

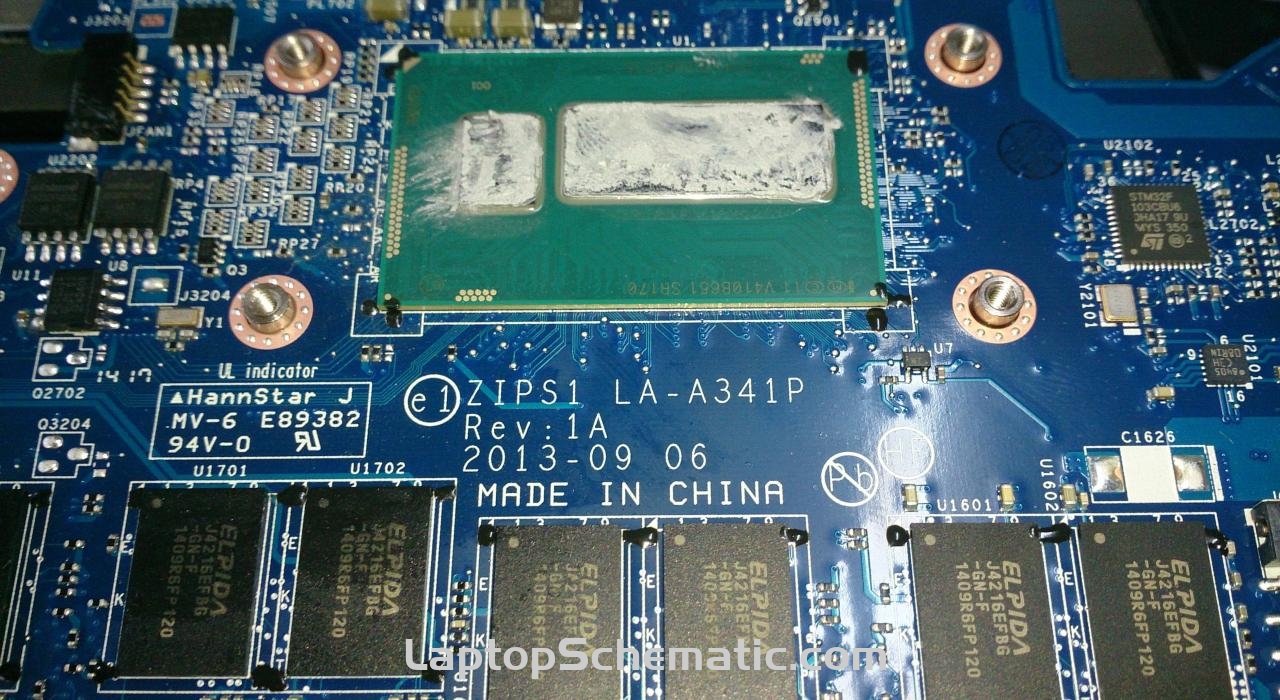

Motherboard: Compal ZIPS1 LA-A341P Rev: 1A
CPU: Intel Core i5-4210U SR1EF
EC: ENE KB9012QF
BIOS IC: U8 W25Q64FVSSIQ (8MB) U2202 W25Q32FVSSIQ (4MB)

Lenovo ThinkPad Yoga S1 Schematic & BIOS, ZIPS1 LA-A341P

File list

thinkpad S1 YOGA_LA-A341P_U2202.bin.zip
thinkpad S1 YOGA_LA-A341P_U8.bin.zip

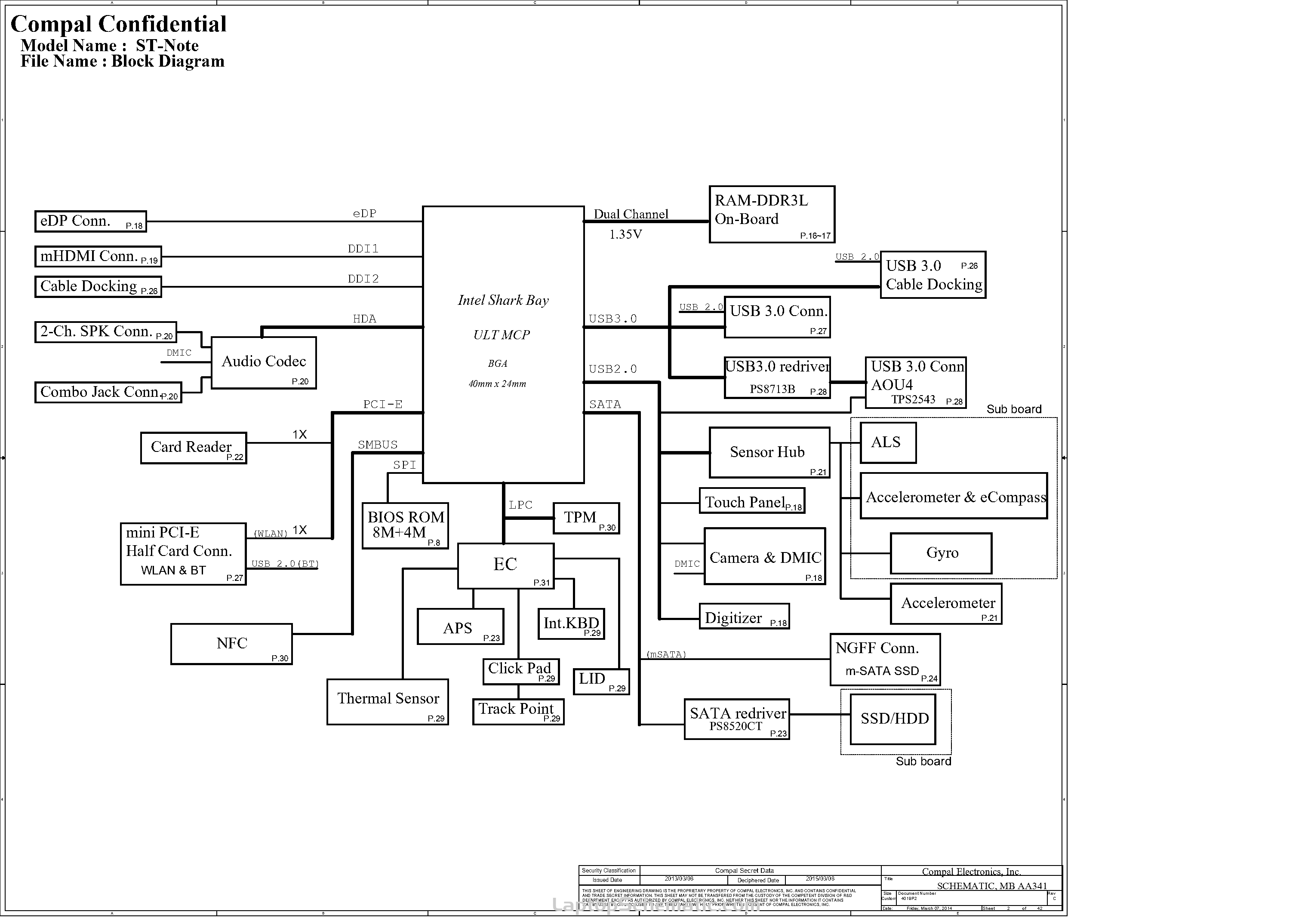

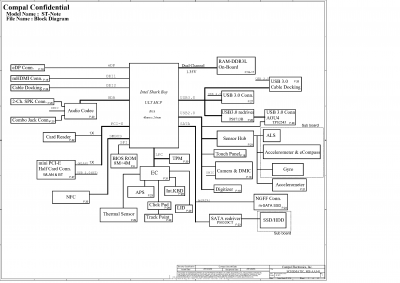

Lenovo ThinkPad S1 Yoga LA-A341P ZIPS1 R1A_nowatermark.pdf
