Acer Aspire 1520 1522WLMi schematic diagram

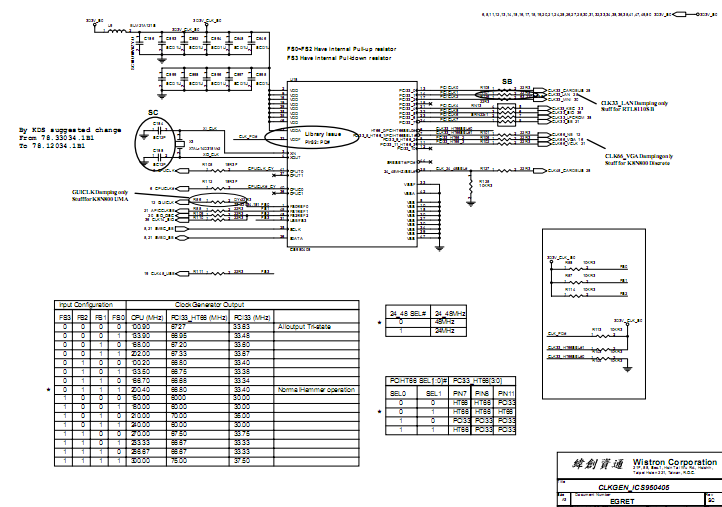

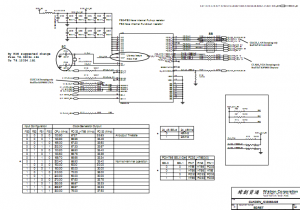

The motherboard schematic/circuit diagram(pdf) for Acer Aspire 1520 laptop/notebook, 1522wmli motherboard egret.
CUP: AMD CPU Claw Hammer K8
North Bridge: VIA K8N800
South Bridge: VIA VT8235CE
OEM: Wistron Corporation
Document Number: EGRET
Format: PDF
Total Pages: 50(Motherboard), 7 (egret graphic_nv36mv-128mb_-1)
File size: 1.37MB & 208KB
Language: English
Sale Price: 12.5$ (2 pdf files)

Acer Aspire 1520 1522WLMi Block Diagram:
