acer Aspire 5551/5552/5321 schematic, NEW75 LA-5911P

The motherboard schematic for Acer Aspire 5321, Acer Aspire 5551, Acer Aspire 5552 laptop/notebook, NEW75 Mainboard Compal LA-5911P, NEW75 Schematics Document.
CPU: AMD S1G4 Champlain
North Bridge: ATI RS880M + ATI M97 Madisan/Park
South Bridge: ATI SB820M
OEM: Compal Electronics, Inc.
Model Name : NEW75/85/95
Document Number: NEW75 LA-5911P
Rev: 1.0 & 2A
Format: PDF
Total Pages: 55
File size: 1.62MB & 1.53MB
Sale Price: 12.5$ (2 pdf files)

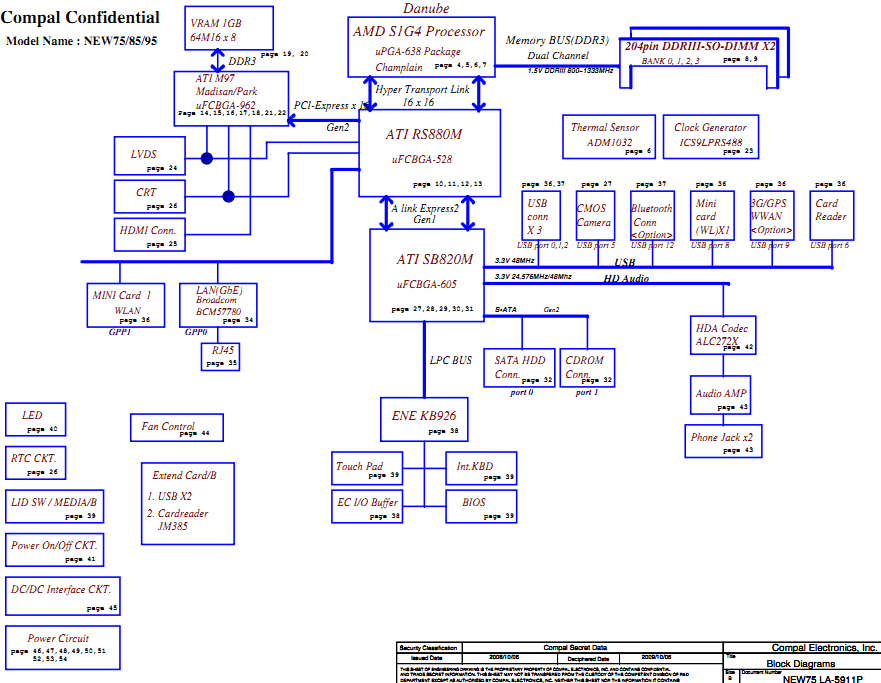

acer Aspire 5551/5552/5321 Block Diagram:
