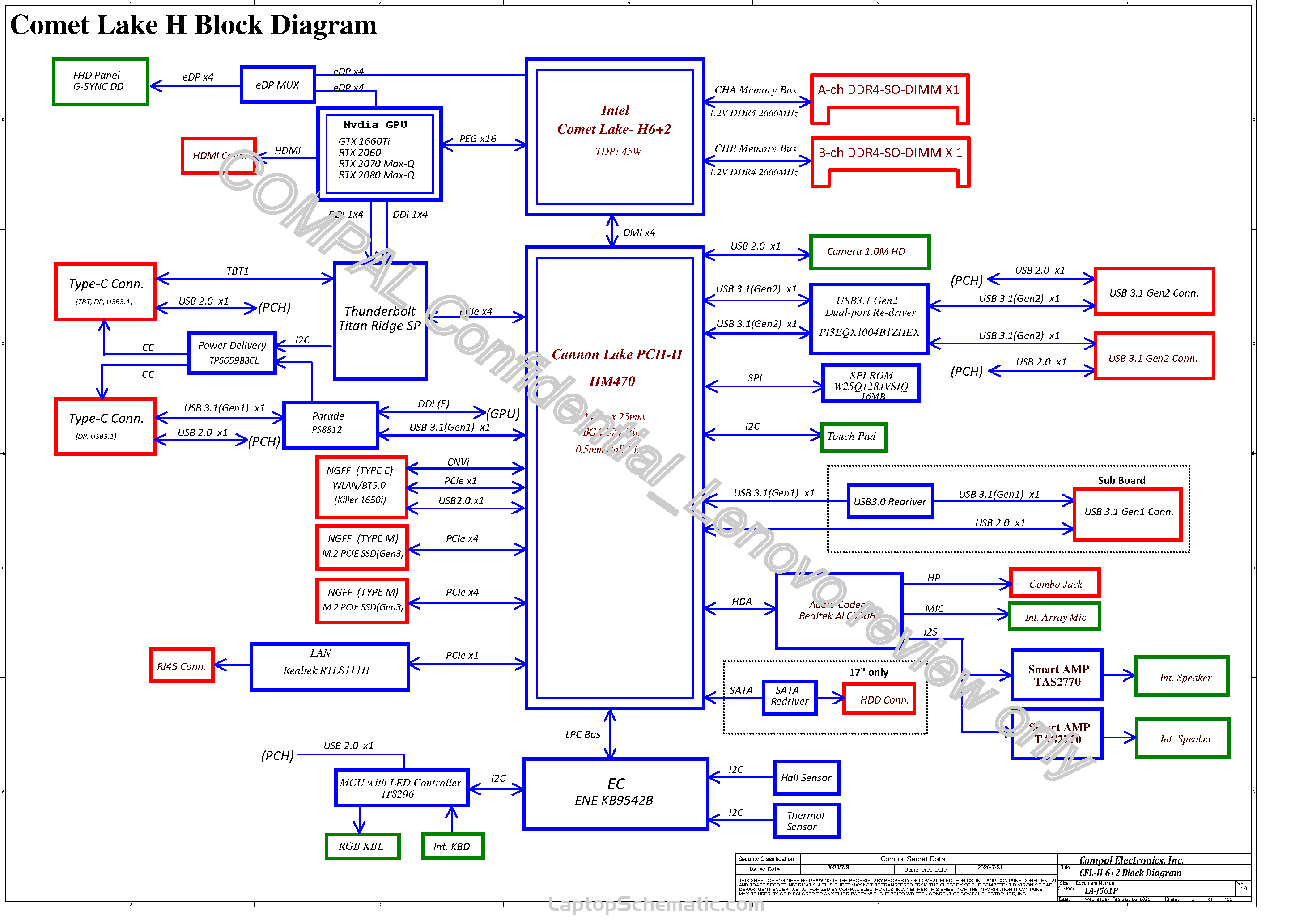

Lenovo Legion 7-15IMH05 (Type 81YT) Schematic FLY00 LA-J561P

The Motherboard Schematic (*.PDF) for Lenovo Legion 7-15IMH05 (Type 81YT) laptop, FLY00 LA-J561P Motherboard.
CPU/HUB/RAM Intel Comet Lake-H / Cannon Lake HM470 / DDR4
GPU: DIS (nVidia GTX 1660Ti / RTX 2060/ RTX 2070 Max-Q / RTX 2080 Max-Q)
(GTX1660TI_6G / RTX2060_6G / RTX2070S_8G / RTX2080S_8G)
EC: ENE KB9542B
Format: PDF
Language: English
Searchable PDF file, No watermark of website
Sale Price: 12.5$
