Apple MacBook 12 2017 A1534 820-00687 820-00244 Schematic & Boardview

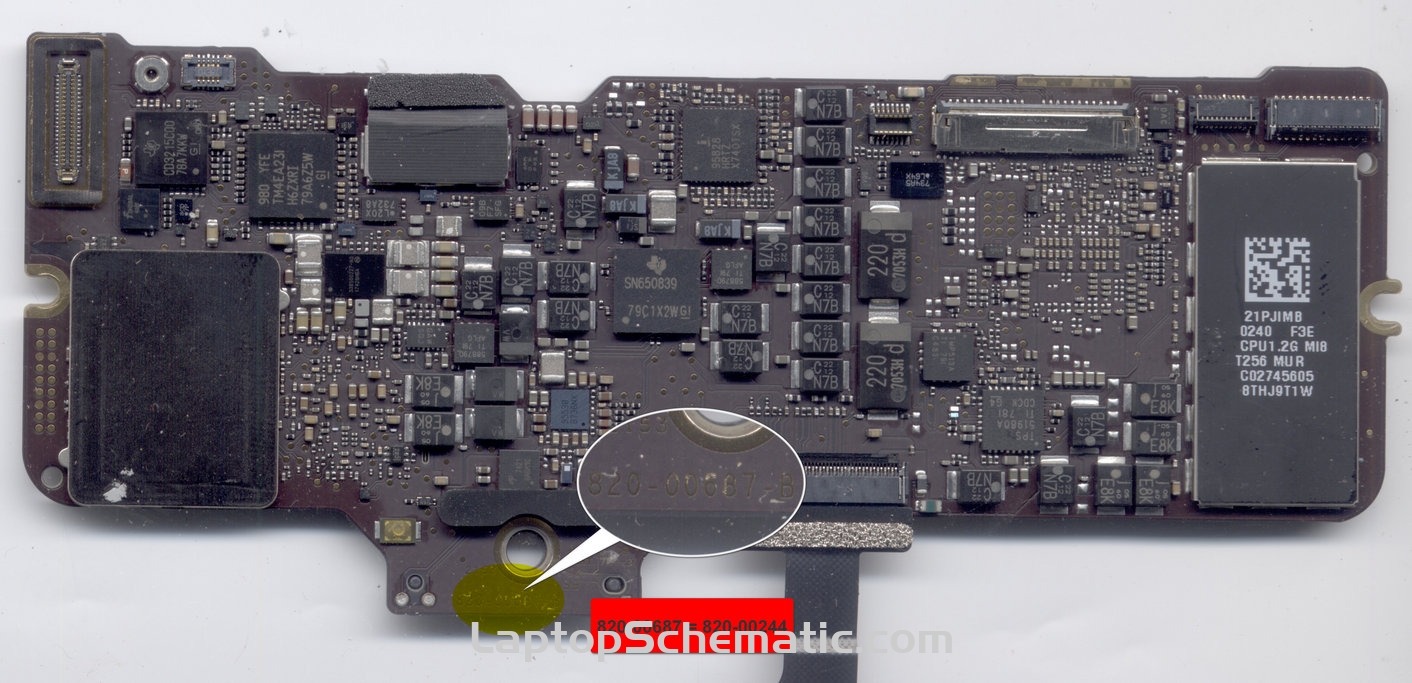

The Schematic (*.pdf), Boardview (*.brd), Motherboard PHOTOS (UHD quality) for Apple MacBook 12 2017 A1534 820-00687 820-00244.

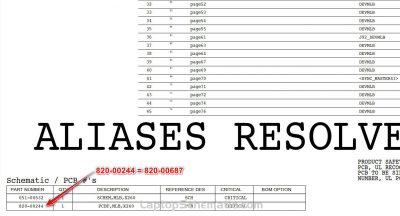

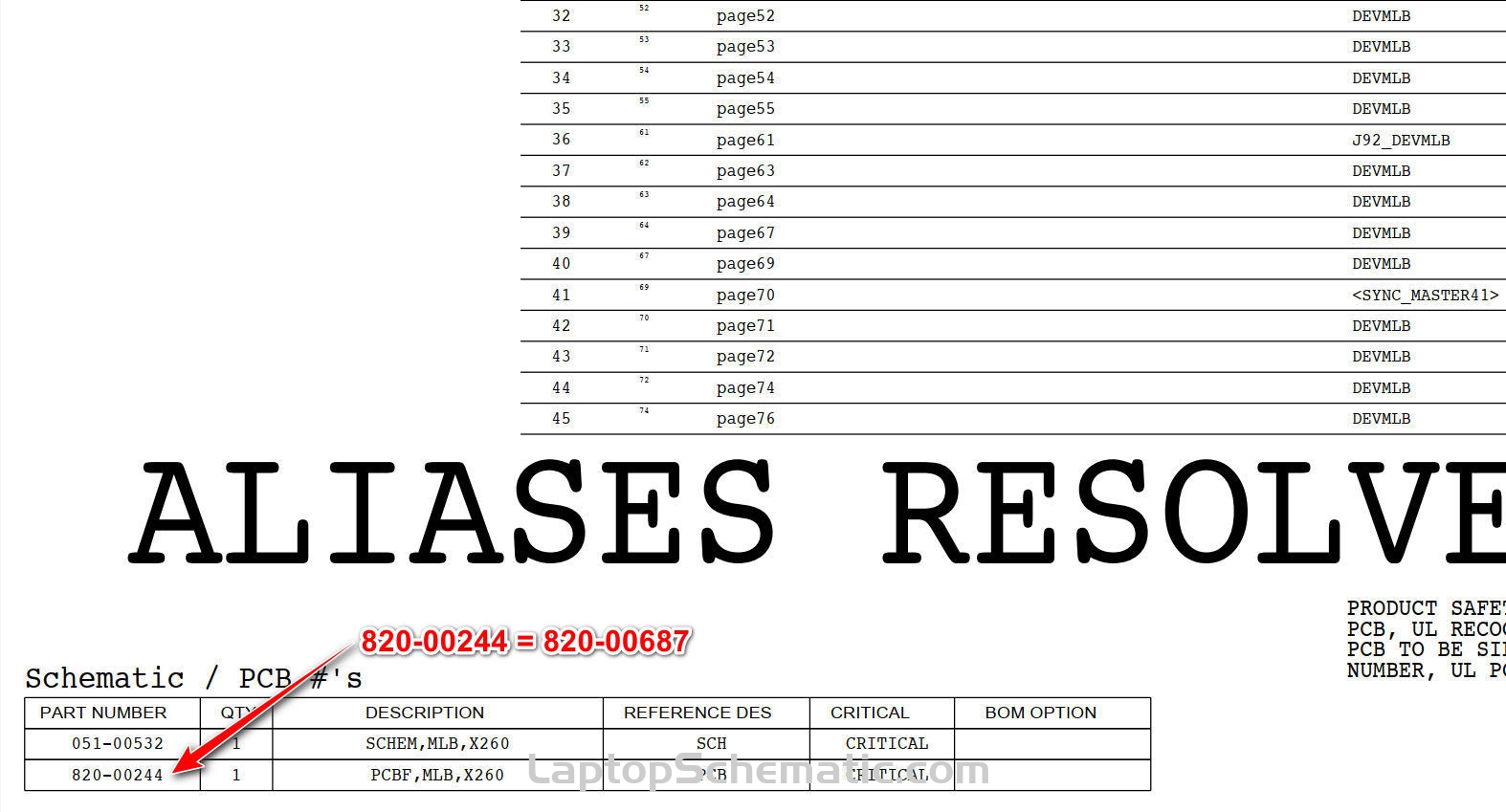

Motherboard 820-00687 = Motherboard 820-00244
PCB PART NUMBER: 820-00244 / 820-00687

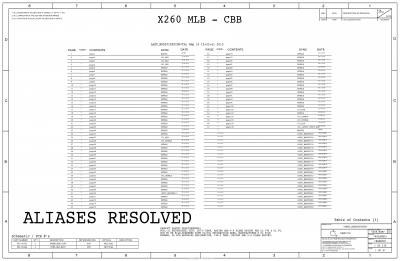

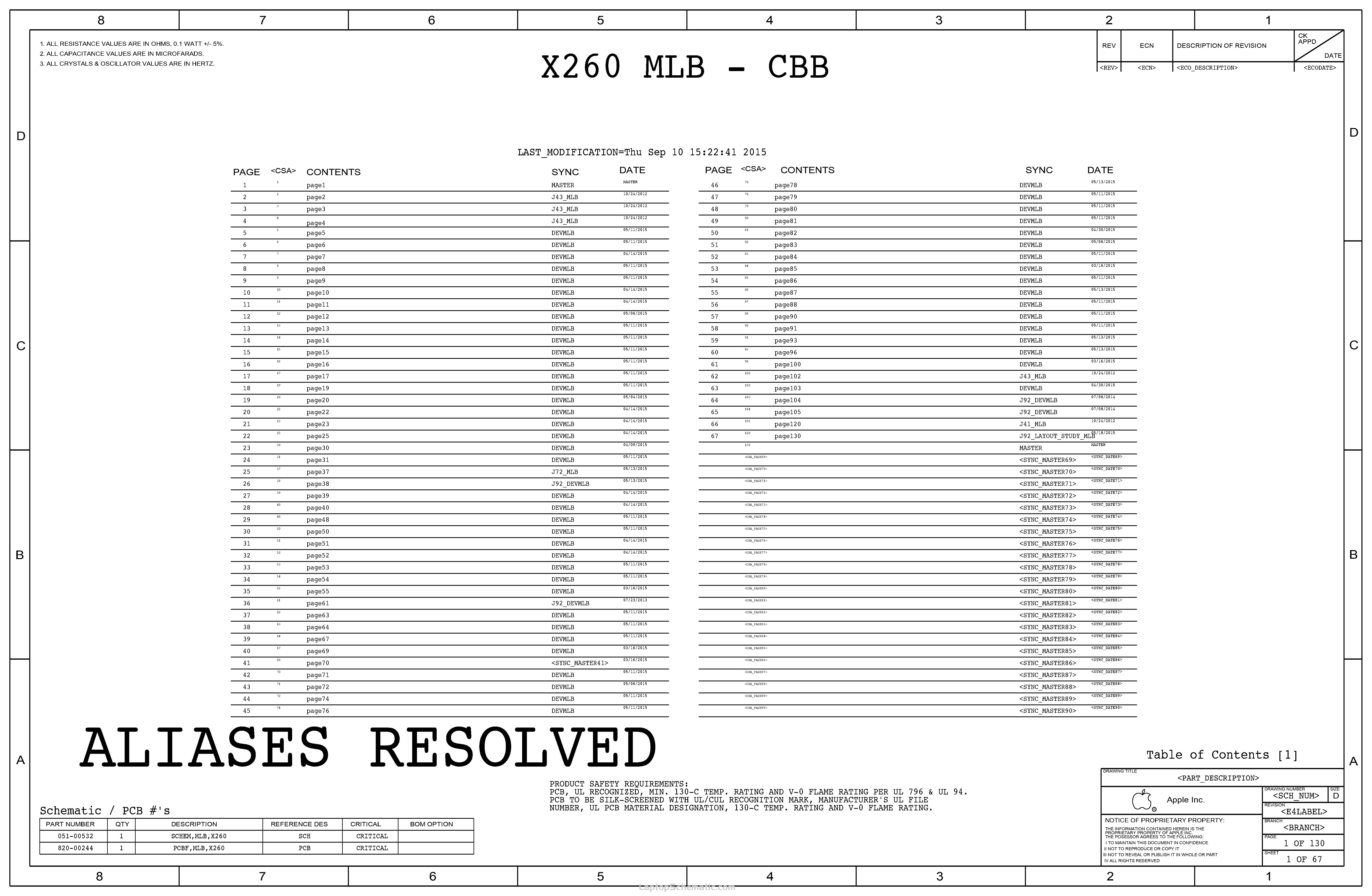

DRAWING TITLE: X260 MLB – CBB
DRAWING NUMBER: 051-00532
Format: PDF, BRD
Total sheet: 67
Language: English
Sale Price: 16.5$ (include *.brd Boardview)

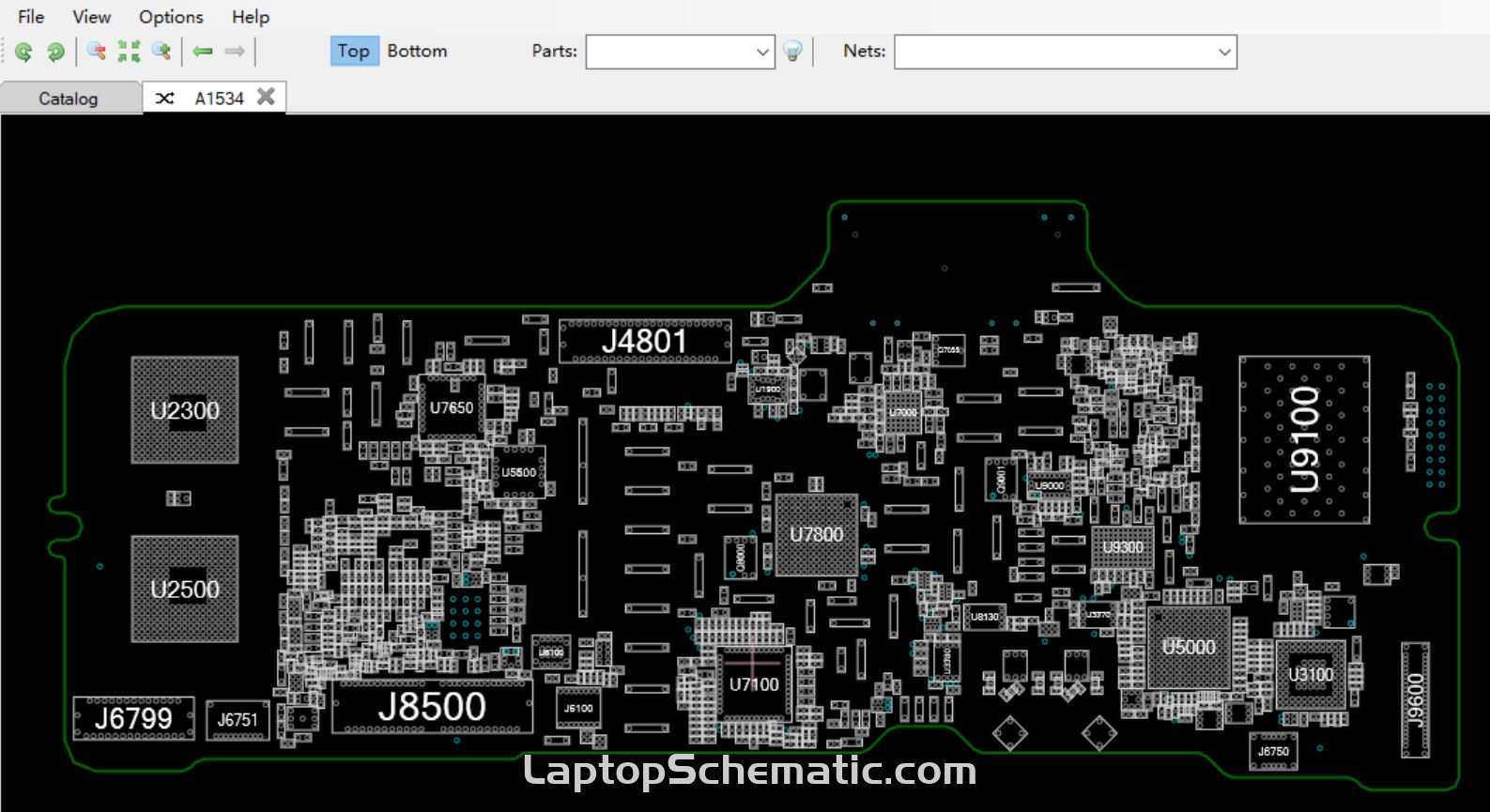

Boardview Software

  • Open Boardview(.brd) file with BoardViewer (Download)
