Dell Studio 1745 schematic, LA-5151P, KAT00 Discrete

The motherboard schematic for Dell Studio 1745 laptop/notebook, KAT00 Mainboard, Compal LA-5151P.
CPU: Pentium-M Penryn -4MB (Socket P)
North Bridge: INTEL Cantiga + AMD M96(M92)
South Bridge: INTEL ICH9-M
OEM: Compal Electronics, Inc.
Model Name: KAT00 DIS
PCB NO : LA-5151P
PCB P/N: DA80000E400
BOM P/N:
43169531L01 (M92)
43169531L02 (M96)
Document Number: LA-5151P
Rev: R10 (A00)
Format: PDF
Total Pages: 60
File size: 2.82MB
Sale Price: 10.5$

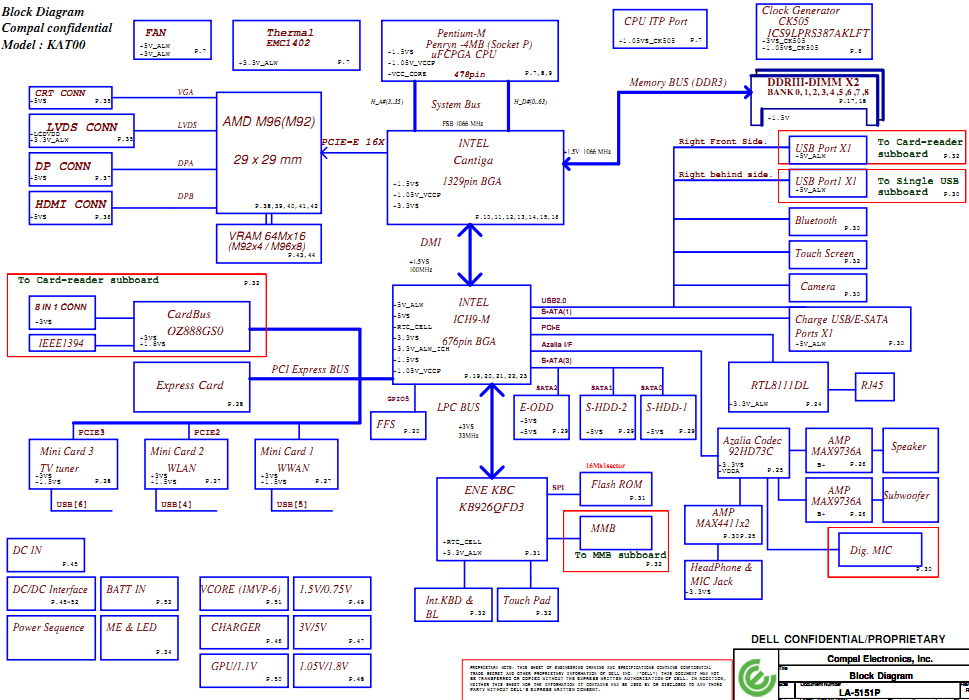

Dell Studio 1745 Block Diagram:
