HP Compaq 2230s schematic, HANGZHOU 1.0 MV

The motherboard schematic for HP Compaq 2230s laptop/notebook, INVENTEC HANGZHOU.
CPU: Penryn
North Bridge: CANTIGA GM &GML
South Bridge: ICH9-M
OEM: INVENTEC
Title: Hangzhou
DOC.NUMBER: 1310A2200001-0
REV: A02
Format: PDF
Total Pages: 56
File size: 1.44MB
Sale Price: 9.5$

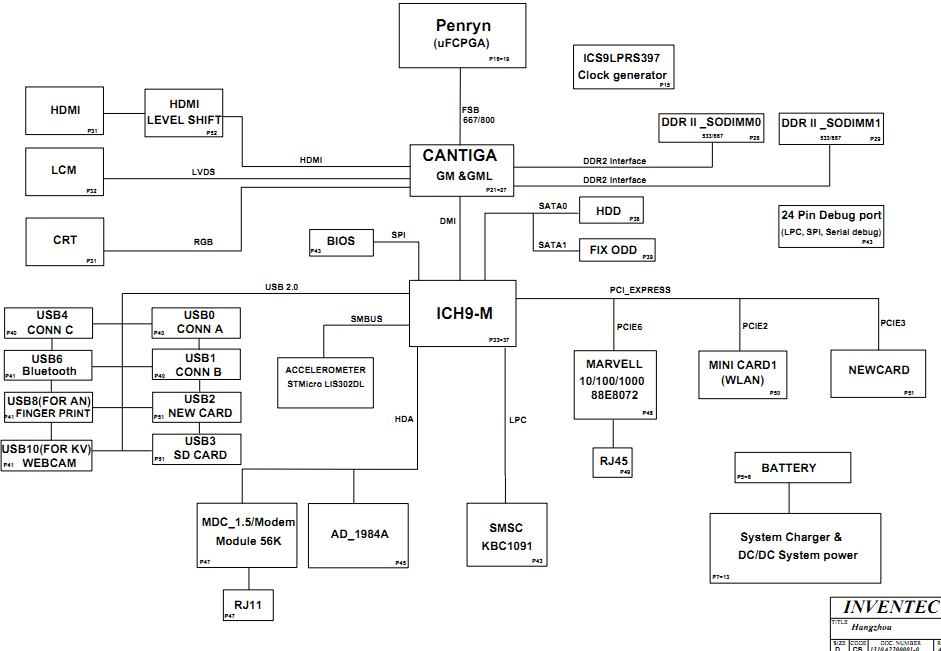

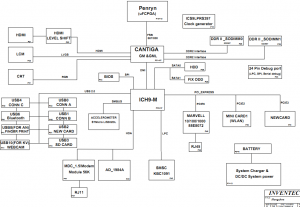

HP Compaq 2230s Block Diagram:
