HP Compaq 515/516 (Volna AMD-UMA) schematic

The motherboard schematic diagram for HP Compaq 515, HP Compaq 516 notebook/laptop, INVENTEC Volna 09 AMD-UMA.
CPU: AMD Griffin Turion/Sempron
North Bridge: AMD RS780MN
South Bridge: AMD SB700
OEM: INVENTEC
TITLE: Volna 09 AMD-UMA
Document Number: 1310A22587-0-MTR
Code: CS
REV: A03
Format: PDF
Total Pages: 53
File size: 665KB
Sale Price: 10.5$

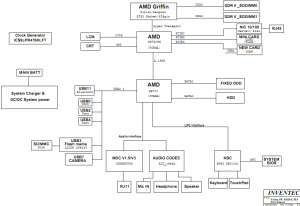

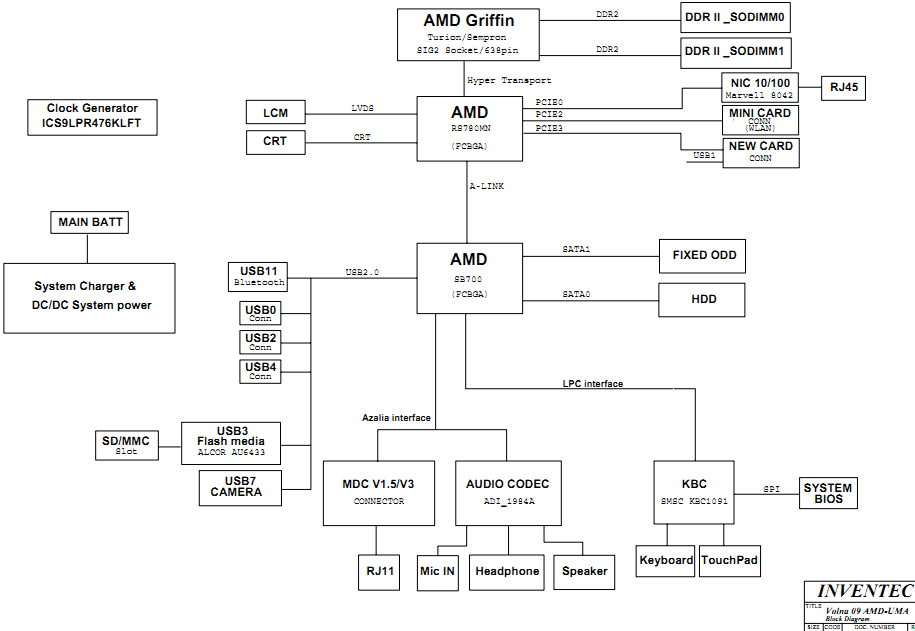

HP Compaq 515 516 Block Diagram:
