HP Elitebook 6440B/6540B schematic, Dior UMA KEL00 LA-4892P

The motherboard schematic for HP Elitebook 6440b, HP Elitebook 6540b laptop/notebook, Dior UMA Motherboard, Compal LA-4892P.
CPU: Mobile CPU Dual Core
Chipset: Intel Ibex Peak M
OEM: Compal Electronics
File Name : Dior UMA
Document Number: LA-4892P
Revision: 0.3
Format: PDF
Total Pages: 45
File size: 1.11MB
Sale Price: 11.5$

File list:

• COMPAL LA-4892P-KEL00 Dior UMA.pdf (Mainboard)
• COMPAL LS-4893P-Multi-Media board.pdf

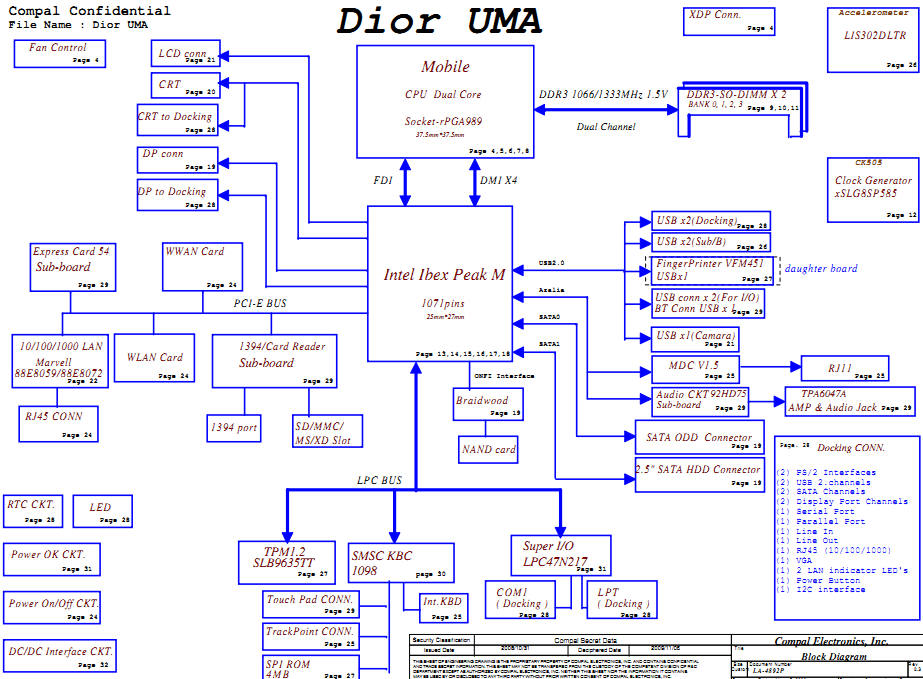

HP Elitebook 6440B/6540B Block Diagram:
