HP Pavilion DV5 Intel schematic, ST145i(PELE)

The motherboard schematic for HP Pavilion DV5 Intel laptop/notebook, INVENTEC ST145i, Calpella-UMA.
CPU: Arrandale
Chipset: PCH
OEM: INVENTEC
Title: Calpella-UMA
Format: PDF
Total Pages: 49
File size: 1.2MB
Sale Price: 10.5$

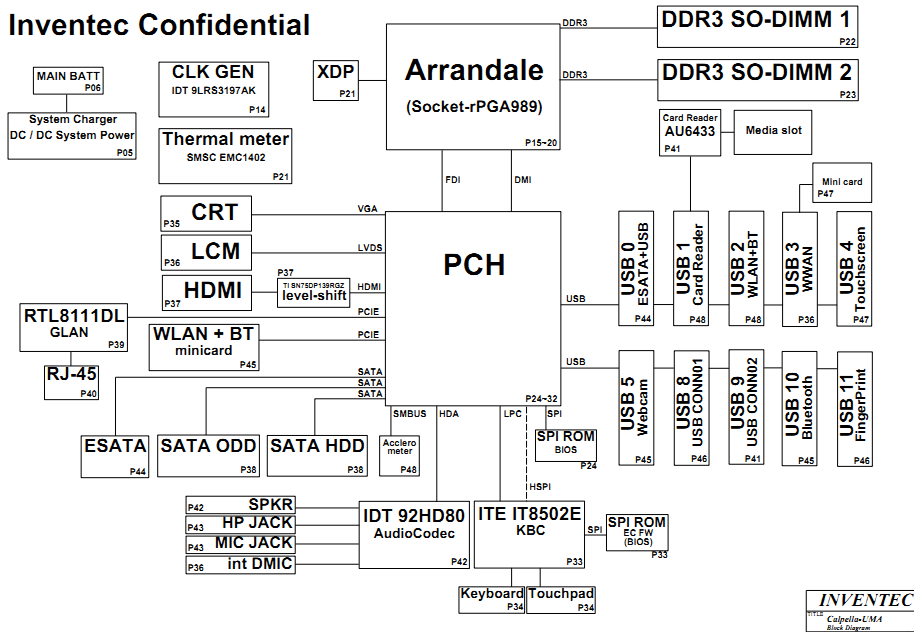

HP Pavilion DV5 Intel(ST145i) Block Diagram:
