HP Pavilion DV5 AMD schematic diagram & Boardview

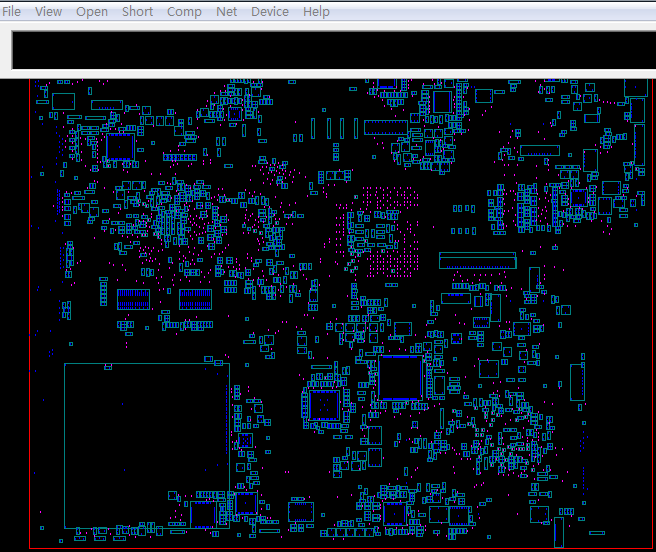

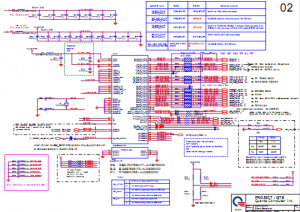

The motherboard schematic diagram(pdf) and Boardview for HP Pavilion DV5 AMD laptop/notebook, Quanta QT8.
CUP: AMD Griffin
North Bridge: RX781/RS780MN A12
South Bridge: SB700 A12
OEM: Quanta Computer Inc.
Project: QT8
Format: PDF
Total Pages: 45
File size: 794KB(pdf), 1.21MB(BoardView)
Language: English
Sale Price: 15.5$

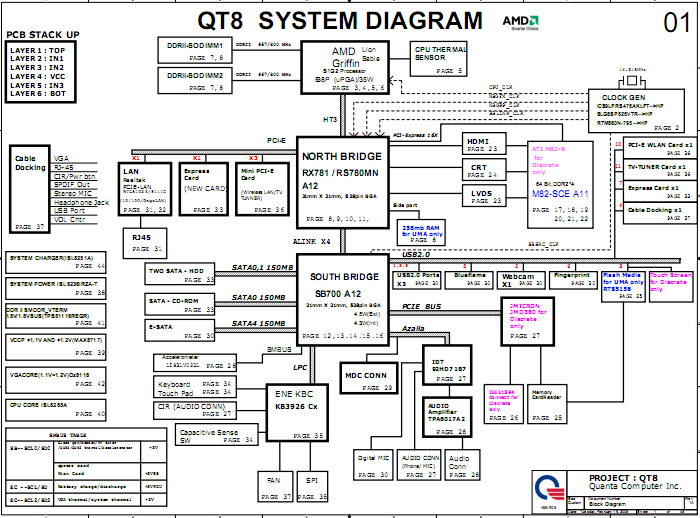

HP Pavilion DV5 AMD Block Diagram:
