HP Pavilion DV5 AMD schematic, ST145AU, ST145a-UMA

The motherboard schematic and Boardview(.bdv) for HP Pavilion DV5 Intel laptop/notebook, INVENTEC ST145AU.
CPU: AMD Champlain S1G4
North Bridge: AMD RS880M
South Bridge: AMD SB820M
OEM: INVENTEC
Title: ST145a-UMA
Rev: X01
Format: PDF
Total Pages: 50
File size: 1.41MB
Sale Price: 11.5$ (include boardview)

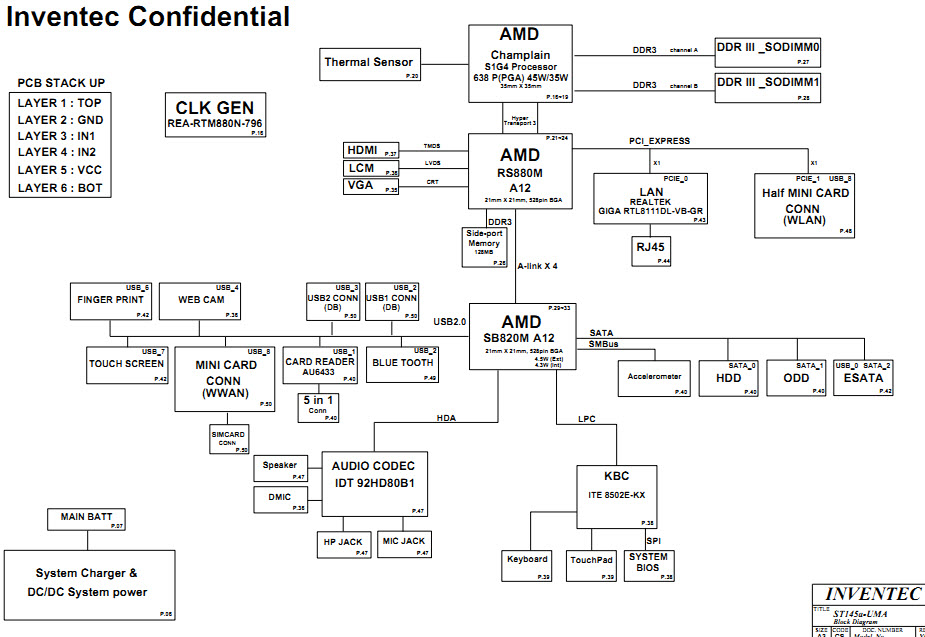

HP Pavilion DV5 AMD Block Diagram:
HP Pavilion DV5 AMD Block Diagram

HP Pavilion DV5 AMD Block Diagram

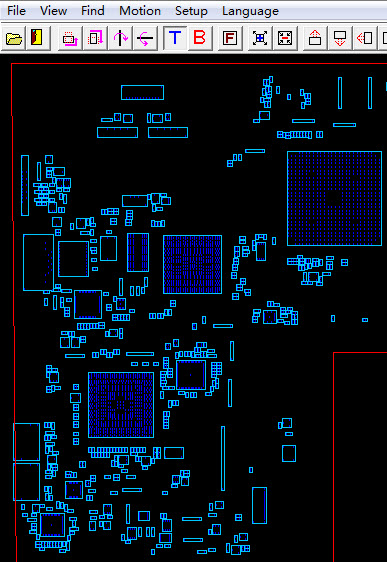

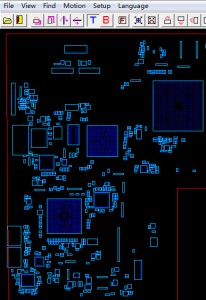

HP Pavilion DV5 AMD boardview:

HP Pavilion DV5 AMD Boardview

HP Pavilion DV5 AMD Boardview
