Lenovo E31-70 U31-70 Schematic & Boardview AIVS3 AIVE3 LA-C311P

Lenovo Schematics

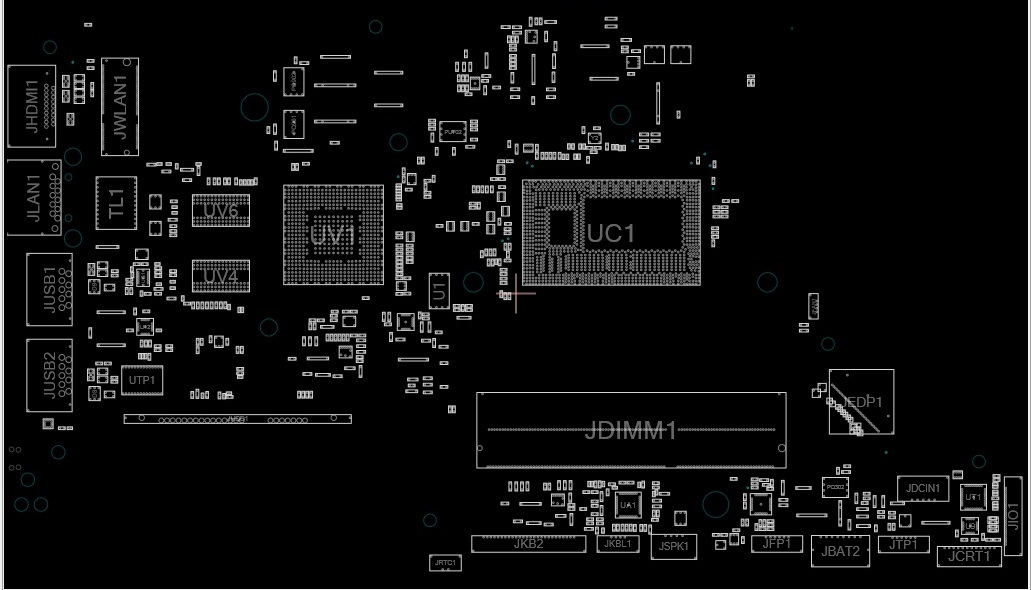

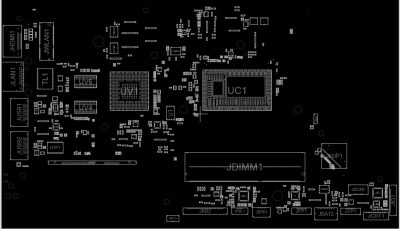

Schematic (*.PDF), Boardview (*.CAD) for Lenovo E31-70, Lenovo U31-70 laptop, Compal AIVS3 AIVE3 LA-C311P Motherboard.
Intel Broadwell U Processor with DDR3L, Nvidia N16V-GM(920M).
Format: PDF, CAD
Sale Price: 10.5$

File list:

Compal LA-C311P r0.1
Boardview (.CAD)
AIVE3 LED Board Compal LS-C313P r0.1.pdf
AIVS3 IO Board Compal LS-C311P r0.1.pdf
AIVS3 IO Board Compal LS-C312P r0.1.pdf

Boardview Software

  • Open Boardview(.CAD) file with BoardViewer (Download)

Original document, no irrelevant watermark.
