Lenovo Yoga Slim 7 PRO 14IHU5 14ITL5 HS450 NM-D231 Schematic & Boardview

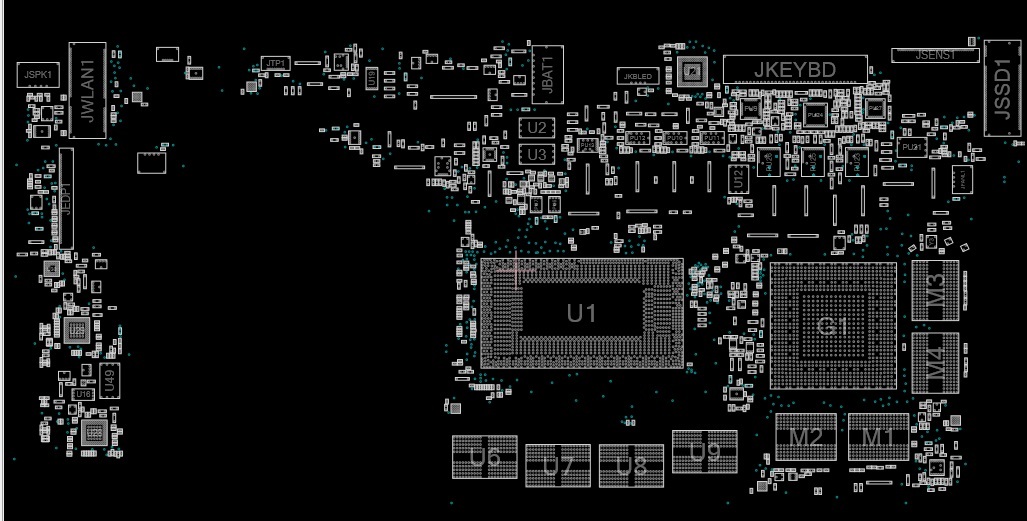

Schematic (*.pdf), Boardview file (*.tvw) for Lenovo Yoga Slim 7 Pro-14IHU5, Lenovo Yoga Slim 7 Pro-14ITL5 laptop, LCFC HS450 NM-D231 Motherboard.

CPU/HUB/RAM: Intel TigerLake-U (i5-1135G7 or i7-1165G7 / LPDDR4X
GPU/VRAM: UMA or DIS (nVidia MX450(N18S-G5-B-KA-A1) or GeForce GTX 1650 Max-Q(N18P-G61-MP2-A1） + GDDR6)
EC/SIO: ITE IT5507
PCB: NM-D231
OEM: LCFC
Language: English
Format：PDF, TVW
Sale Price: 15.5$

Boardview Software

• Open Boardview(*.tvw) file with BoardViewer (Download)

Original document, no irrelevant watermark.

What’s included:

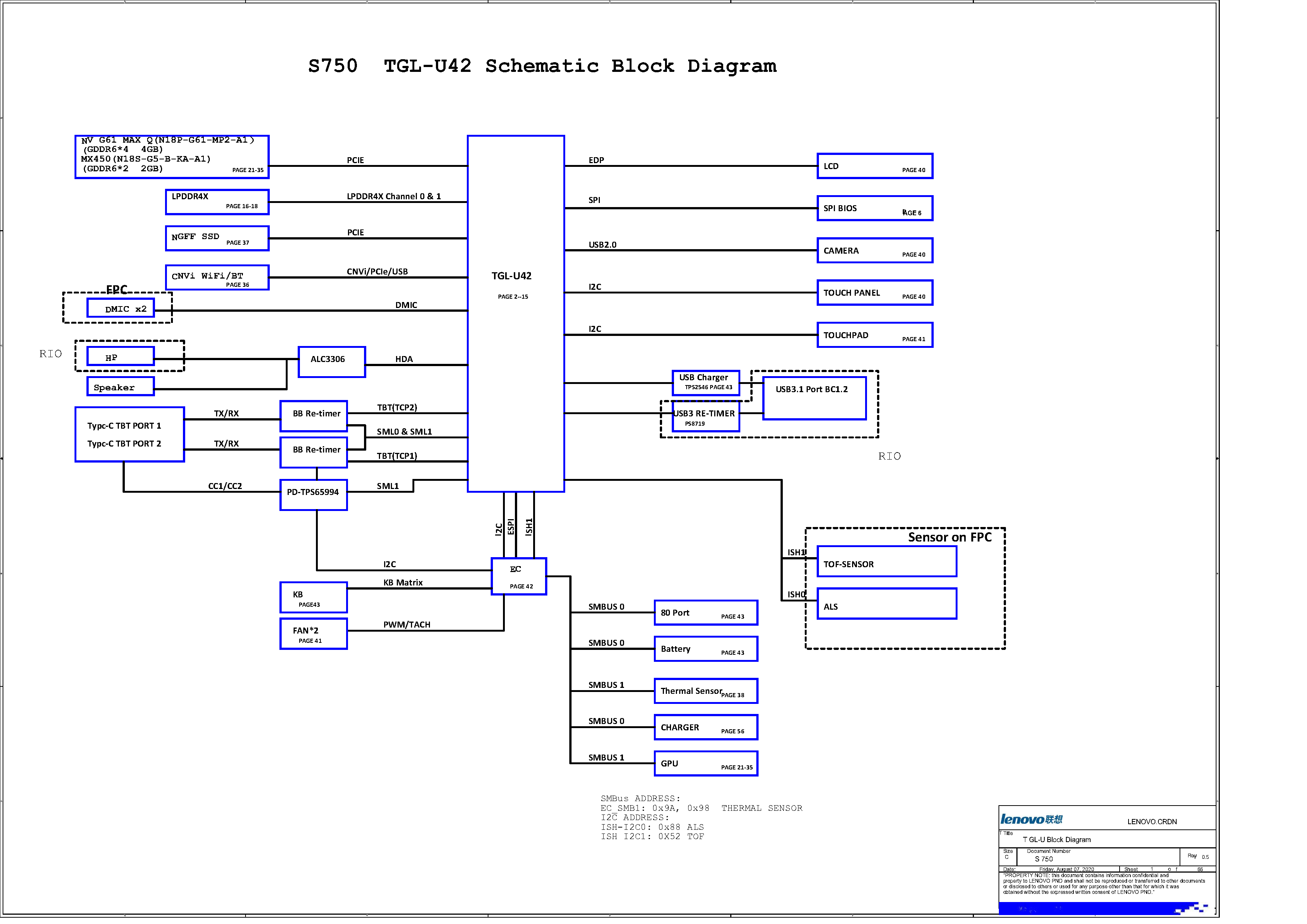

— Schematic Diagram (*.pdf) for Motherboard
— BoardView file (*.tvw) for Motherboard
