Lenovo Legion Y520-15IKBN (NM-B191) Schematic Circuit Diagram & Boardview

The motherboard schematic & Boardview (*.tvw) for Lenovo Legion Y520-15IKBN laptop/notebook, LCFC NM-B191, DY512 M/B Schematics Document. Intel Kabylake H-Processor with DDR4 + NV N17P-G0/G1 GPU.

CPU: Intel CPU Kaby Lake-H 45W
Chipset: Intel PCH Kaby Lake-H
OEM: LCFC.
Document Number: DY512
Board No: NM-B191
Format: PDF
Total Pages: 75
Sale Price: 12.5$ (include Boardview)

Lenovo Legion Y520-15IKBN (NM-B191) Block Diagram:

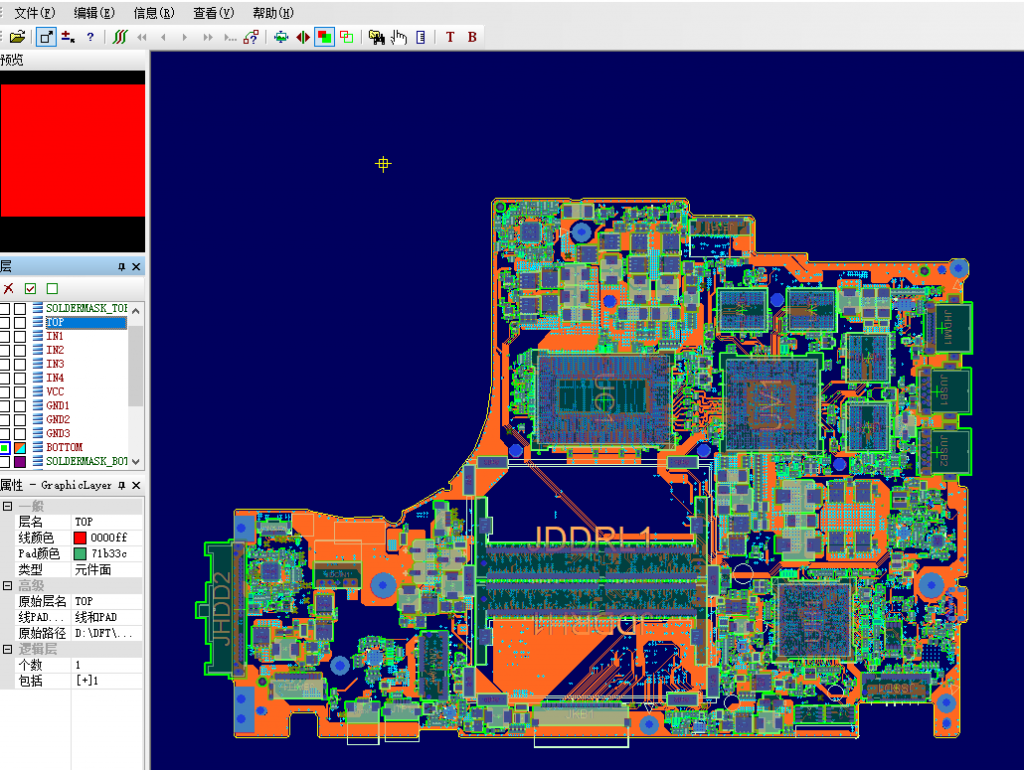

Lenovo Legion Y520-15IKBN (NM-B191) Boardview:
