Lenovo IdeaPad S300 S400 LA-8951P Schematic Circuit Diagram

Lenovo IdeaPad S300 S400 LA-8951P Motherboard

The motherboard schematic for Lenovo IdeaPad S300 S400 laptop/notebook, Compal LA-8951P. VIUS3/S4 M/B Schematics Document, Intel Ivy Bridge ULV Processor + Panther Point PCH AMD Seymour XT

File Name: LA-8951PR01
Model Name: VIUS3/S4
Format: PDF
Total Pages: 55
Sale Price: 11.5$

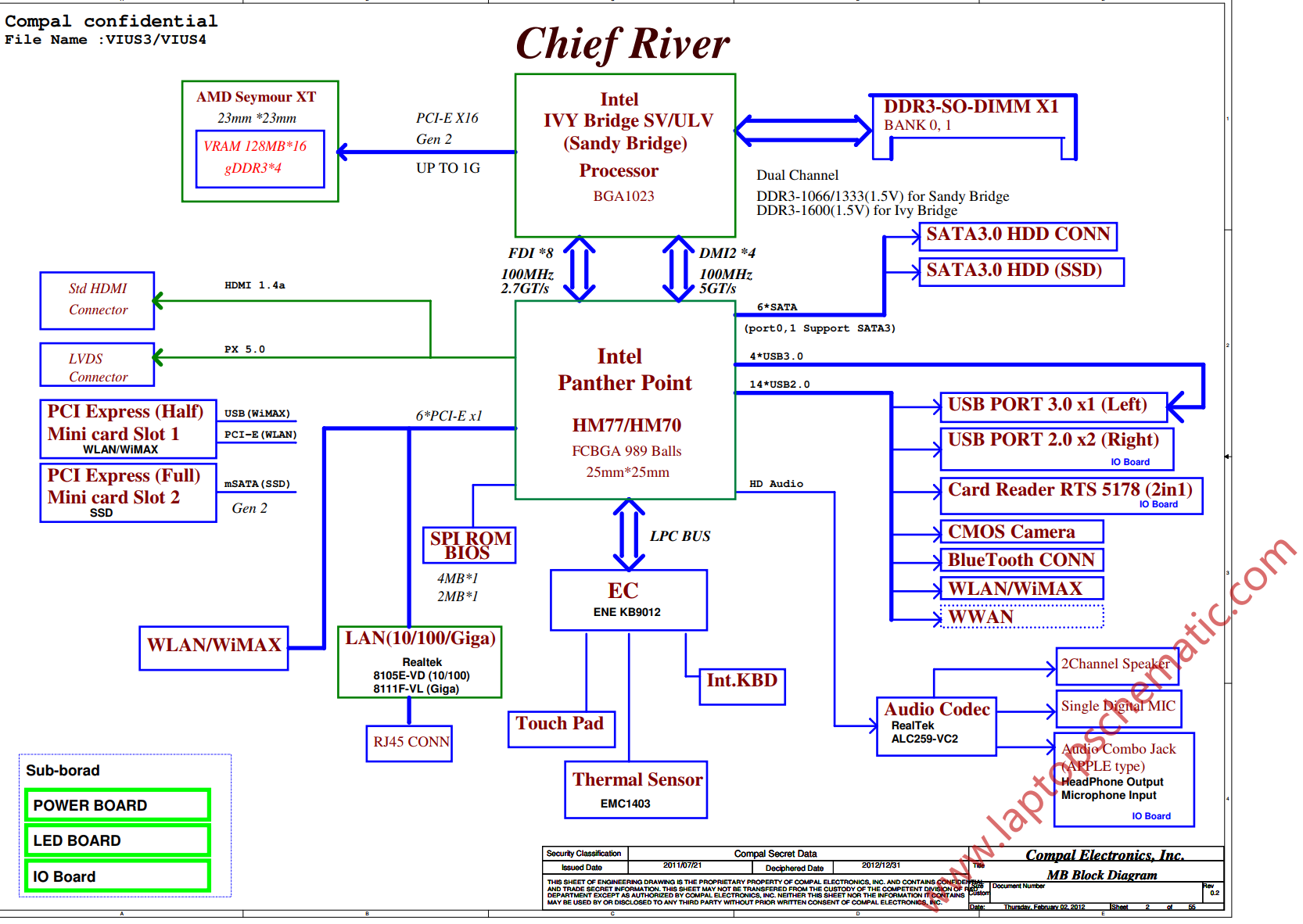

Lenovo IdeaPad S300 S400 LA-8951P Block Diagram:

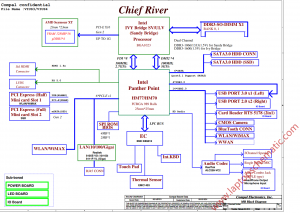

Lenovo IdeaPad S300 S400 LA-8951P Block Diagram:

Lenovo IdeaPad S300 S400 LA-8951P Block Diagram:

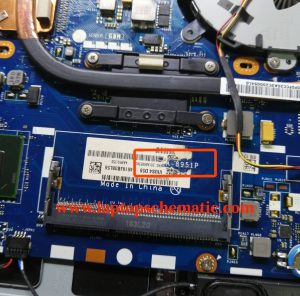

Lenovo IdeaPad S300 S400 LA-8951P Motherboard:

Lenovo IdeaPad S300 S400 LA-8951P Motherboard

Lenovo IdeaPad S300 S400 LA-8951P Motherboard
