Sony Vaio VGN-N Series schematic, MS71 MBX-160

The motherboard schematic for Sony Ms71-1-01 Main Board , fit for VGN-N130, VGN-N160, VGN-N365E, VGN-N250N,VGN-N320,VGN-N320E,VGN-N365,VGN-N365E…
Project Code & Schematics Subject: MS71 Main Board
PCB P/N:
(FUBAI) 1P-006A100-6010
(NAN YA) 1P-006A200-6010
(HANSTAR) 1P-006A500-6010
CPU: Yonah/Celeron-M
North Bridge: Calistoga 945GM/945GML
South Bridge: ICH7-M
OEM: FOXCONN
Document Number: MS71-1-01
Rev: 1.0
Format: PDF
Total Pages: 55
Sale Price: 10.5$

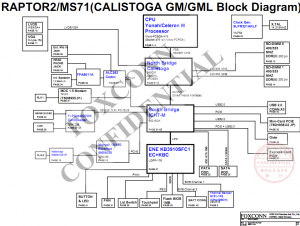

Sony Vaio VGN-N Series (MS71 MBX-160) Block Diagram:
Sony Vaio VGN-N Series (MS71 MBX-160) Block Diagram

Sony VGN-N Series (MS71 MBX-160) Block Diagram
