Lenovo Ideapad 320-15AST Schematic, DG425/DG525/DG725 NM-B321

Lenovo Schematics

The motherboard schematic diagram forLenovo Ideapad 320-15AST laptop/notebook, G 320 AST M/B Schematics Document, AMD FT4 Stoney SOC with DDRIIII, AMD R17M-M1-70, DG425/DG525/DG725 NM-B321 motherboard.
CPU: AMD FP4 Bristol Ridge SOC + DDR4
GPU: AMD R17M-M1-70 (DIS) or (UMA)
EC: ITE IT8586E-LQFP
Document Number: 320AST
Format: PDF
Searchable PDF file, No watermark of website
Total Pages: 50
Language: English
Sale Price: 9.5$

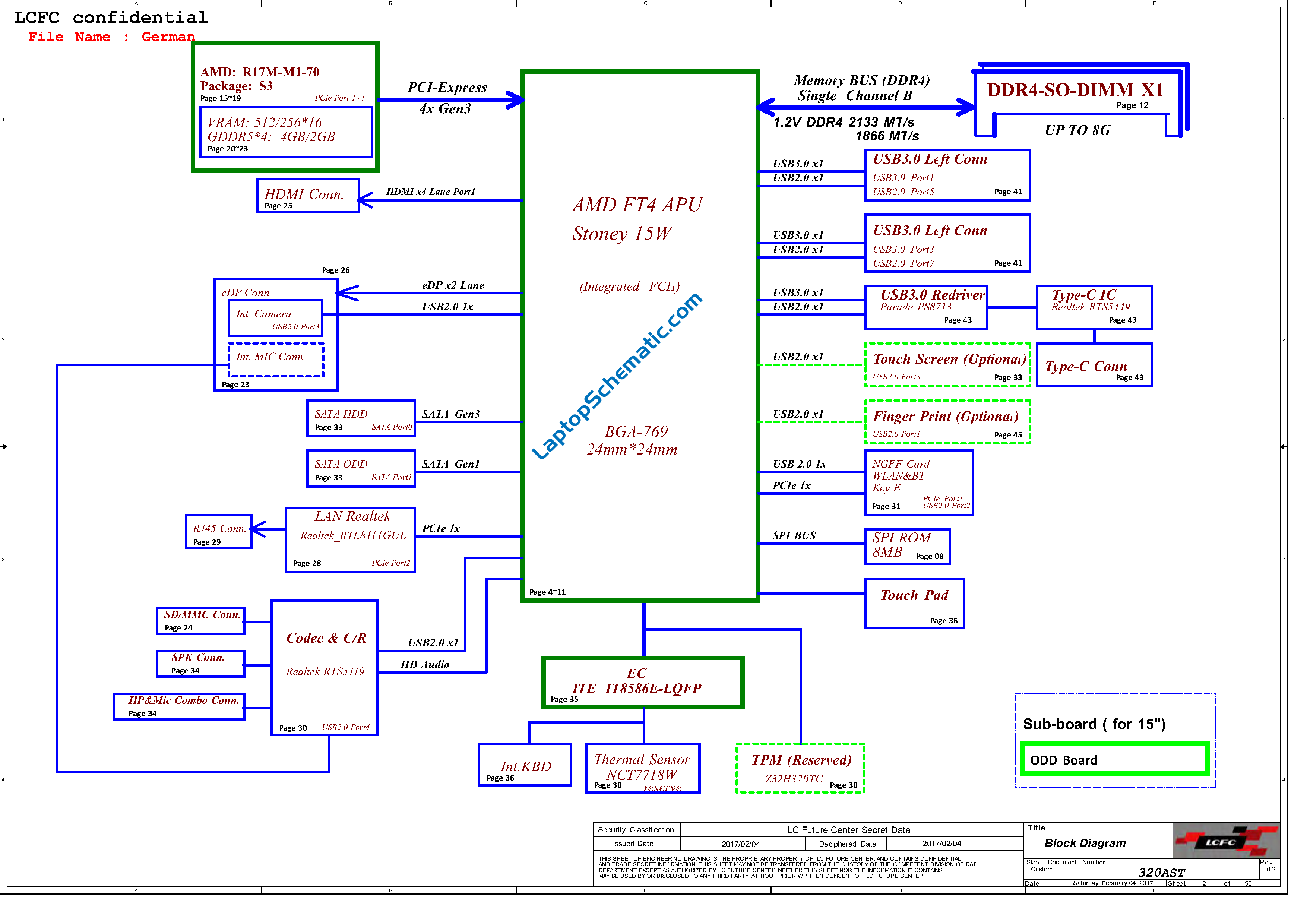

Lenovo Ideapad 320-15AST NM-B321 Block Diagram:
Lenovo Ideapad 320-15AST Schematic NM-B321

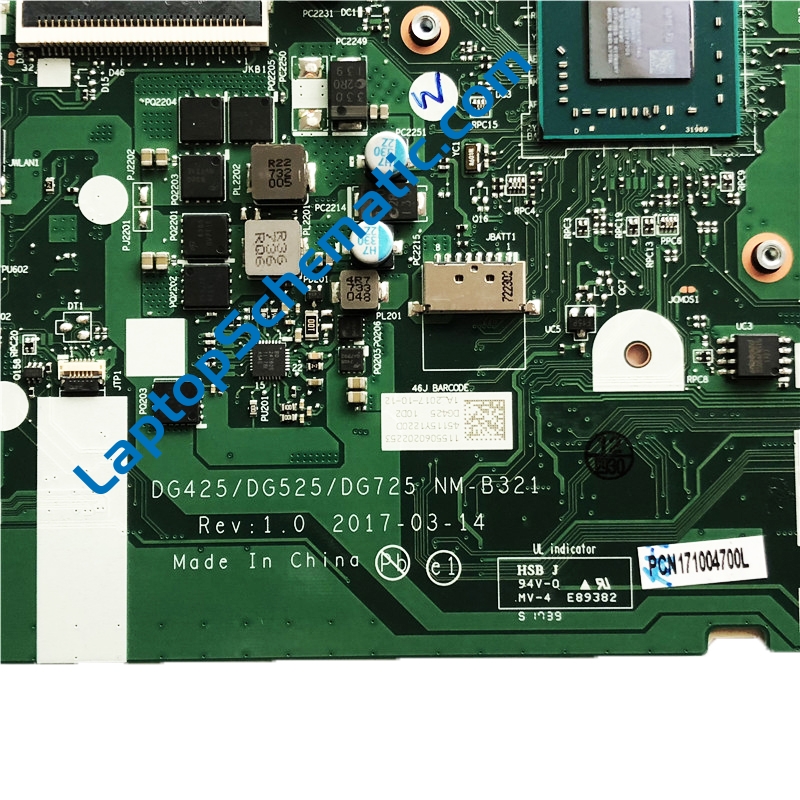

Lenovo Ideapad 320-15AST NM-B321 Motherboard:
Lenovo Ideapad 320-15AST NM-B321 Motherboard
