Lenovo IdeaPad Y500 schematic, QIQY6 LA-8692P

The schematic diagram for Lenovo IdeaPad Y500 laptop/notebook, QIQY6 Mainboard Compal LA-8692P.
CPU: Intel IVY Bridge
Discrete VGA N13P-GT1 + 2nd VGA N13P-GT1
Chipset: Intel Panther Point PCH
OEM: Compal Electronics, Inc.
Document Number: LA-8692P
Rev: 0.2
Format: PDF
Total Pages: 66
File size: 1.95MB
Sale Price: 11.5$

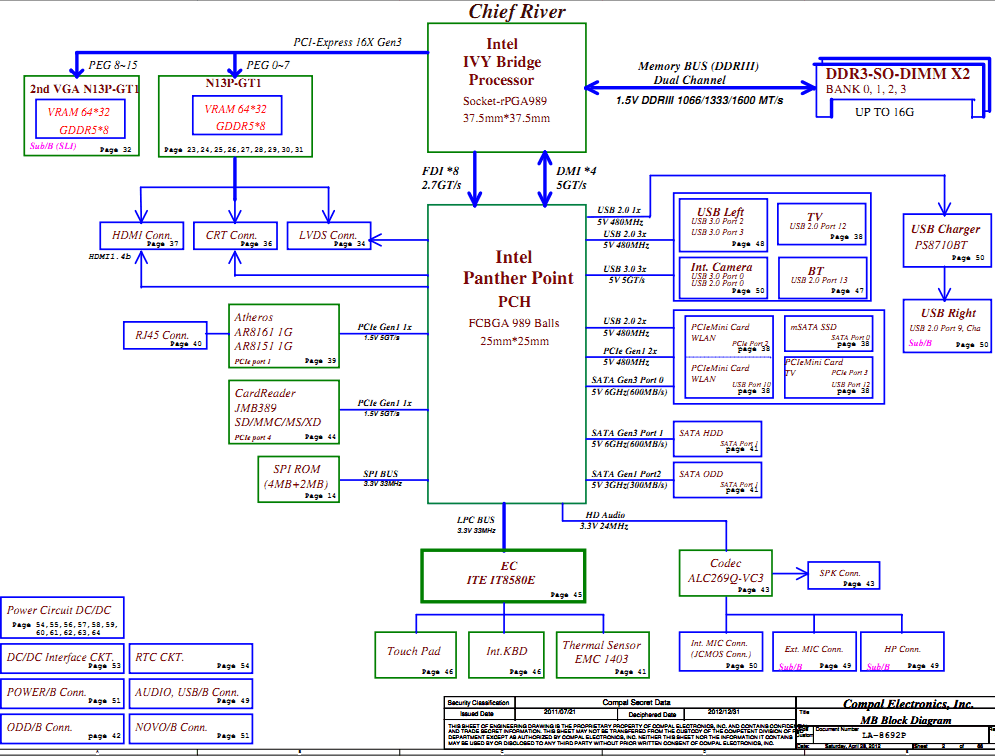

Lenovo IdeaPad Y500 Block Diagram:
