Lenovo IdeaPad Y490 schematic, QIQY5 LA-8691P

The schematic diagram for Lenovo IdeaPad Y490 laptop/notebook, QIQY5 Mainboard Compal LA-8691P Rev 0.2 & Rev 0.3, Intel IVY Bridge Processor with DDRIII + Panther Point PCH, nVIDIA N13P GT1-A2 + 2nd VGA N13P GT1-A2.
CPU: Intel Ivy Bridge
Discrete VGA N13P-GT1 + 2nd VGA N13P-GT1
Chipset: Intel PCH Panther Point
OEM: Compal Electronics, Inc.
Document Number: Y490-LA8691P
Rev: 0.2 & 0.3
Format: PDF
Total Pages: 65
File size: 3.7MB (2 files)
Sale Price: 11.5$

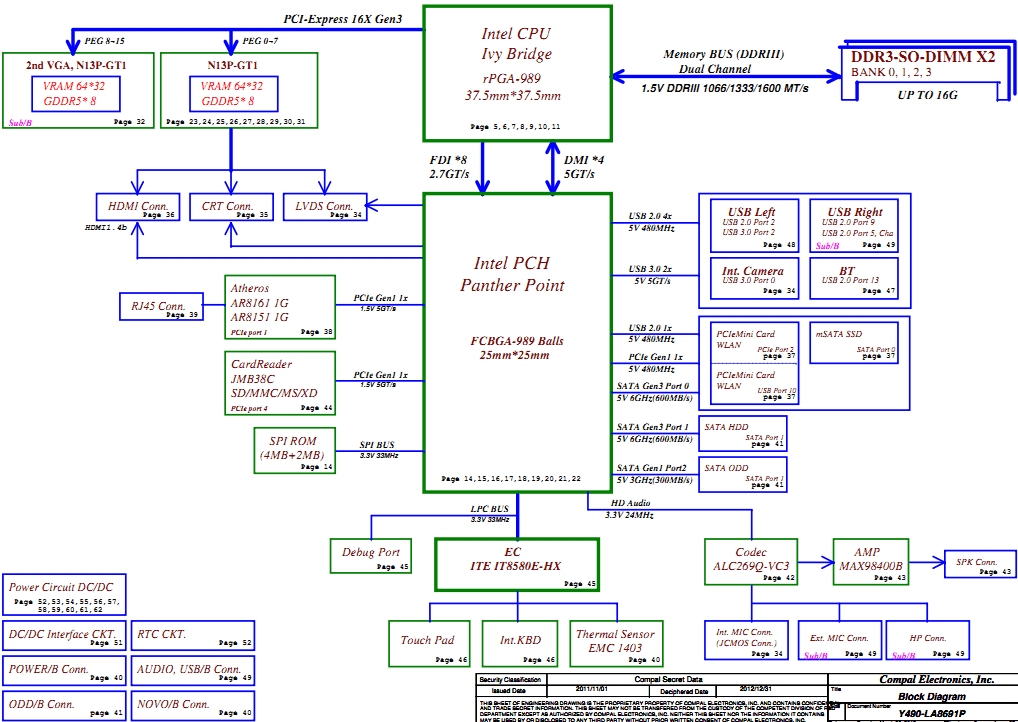

Lenovo IdeaPad Y490 Block Diagram:
Lenovo IdeaPad Y490 Block Diagram

Lenovo IdeaPad Y490 Block Diagram
