Lenovo ThinkPad E40 Intel UMA Schematic & Boardview, GC5A DAGC5AMB8F0

Lenovo Schematics

The motherboard schematic diagram & Boardview (.BRD) for Lenovo ThinkPad E40 Intel UMA laptop/notebook, GC5A Intel Calpella Platform with UMA GFX, GC5A DAGC5AMB8F0 motherboard.
CPU: Intel Arrandale
Chipset: PCH Ibex Peak-M
OEM: Quanta
Project: GC5A
Format: PDF & BRD
Searchable PDF file, No watermark of website
Language: English
Total Pages: 54
Sale Price: 7.5$ (include Boardview)

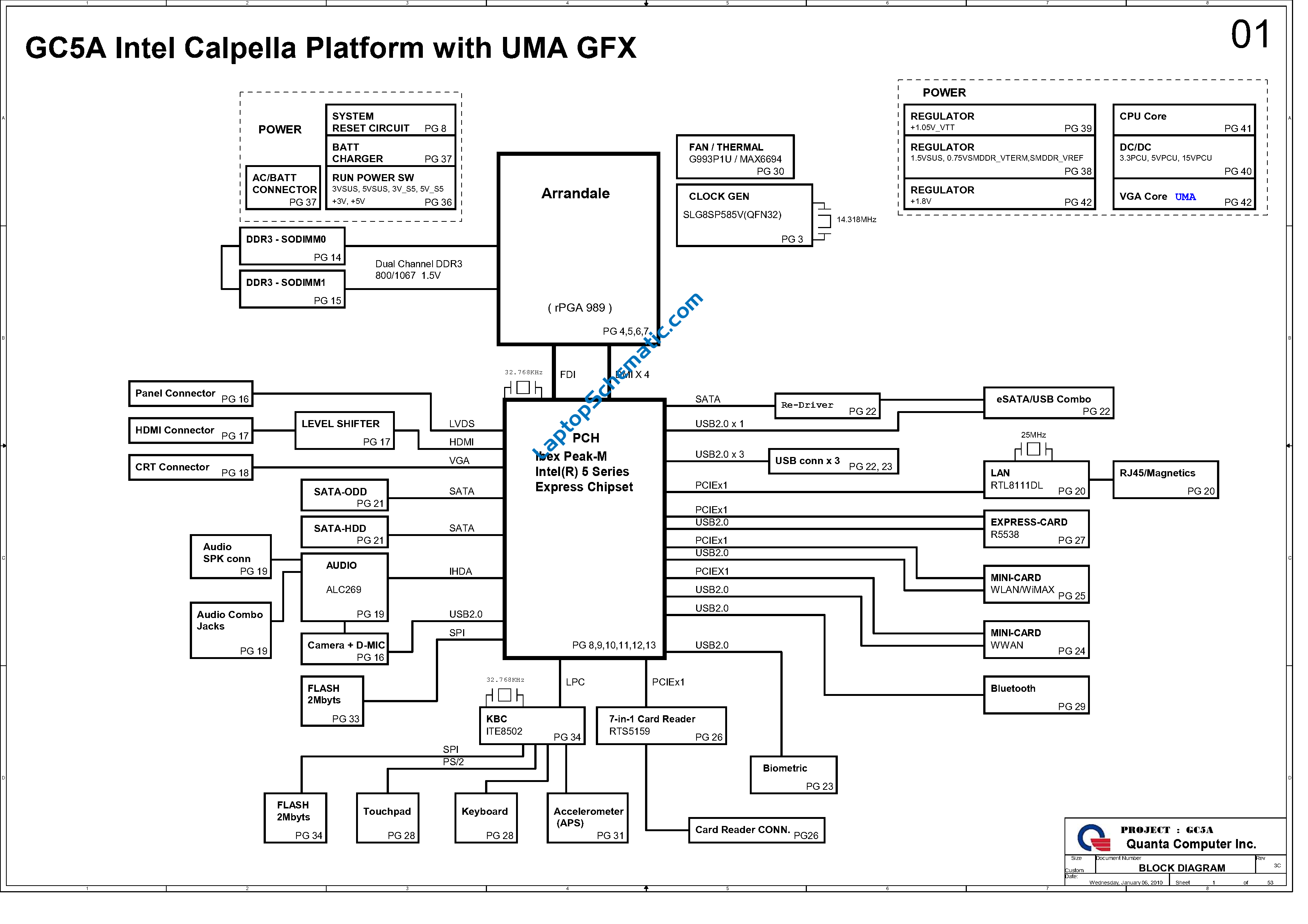

Lenovo ThinkPad E40 Intel UMA GC5A Schematic Block Diagram:
Lenovo Thinkpad E40 Intel (UMA) Schematic GC5A DAGC5AMB8F0

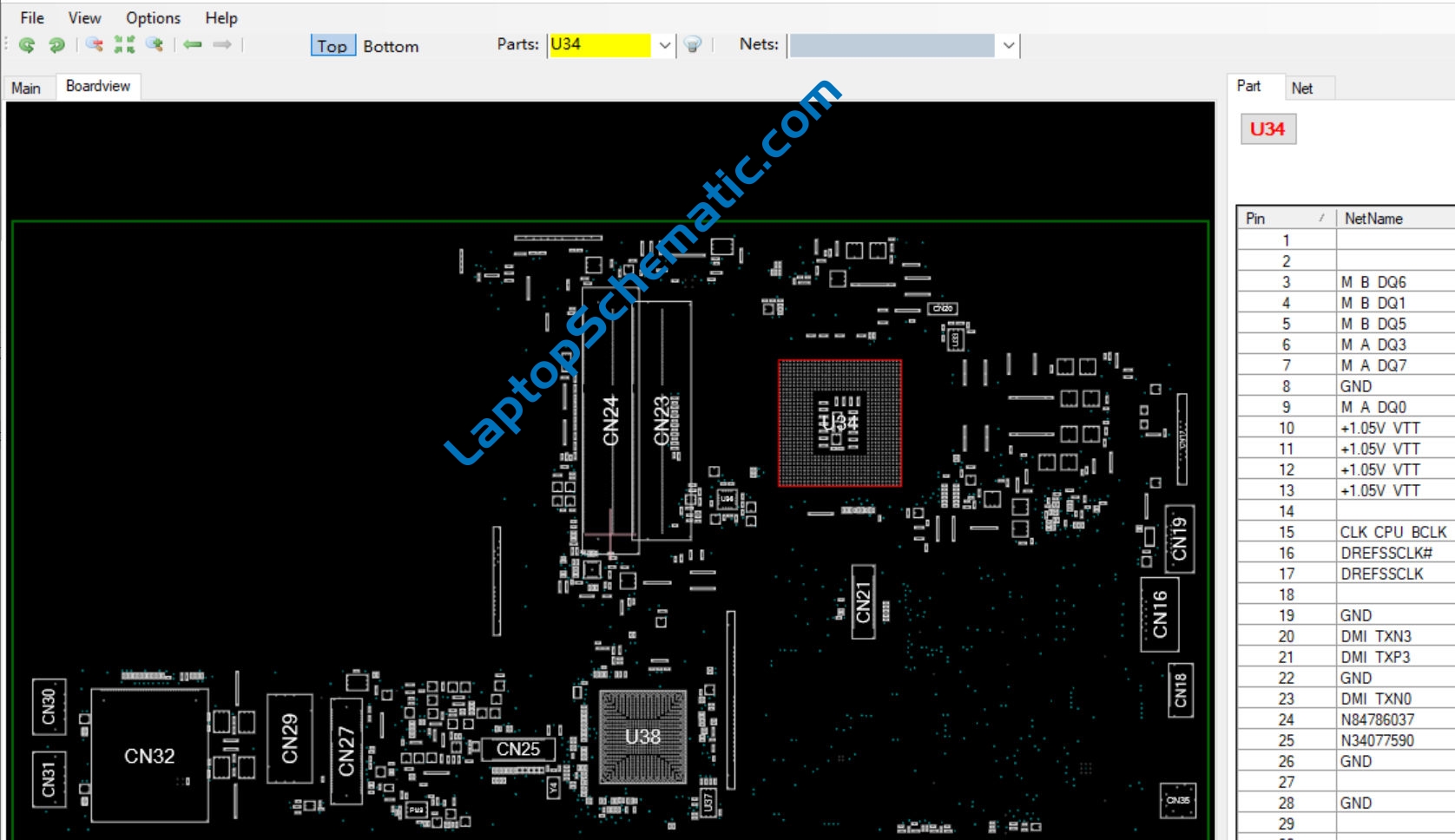

Lenovo ThinkPad E40 Intel UMA GC5A BoardView:
Lenovo Thinkpad E40 Intel (UMA) Boardview GC5A
