Lenovo ThinkPad L470 Schematic & Boardview, DL470 NM-B021

2021-02-11 Lenovo Schematics

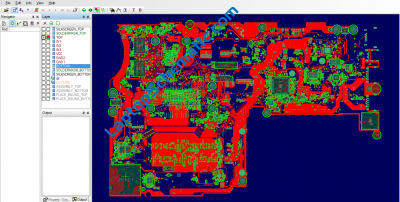

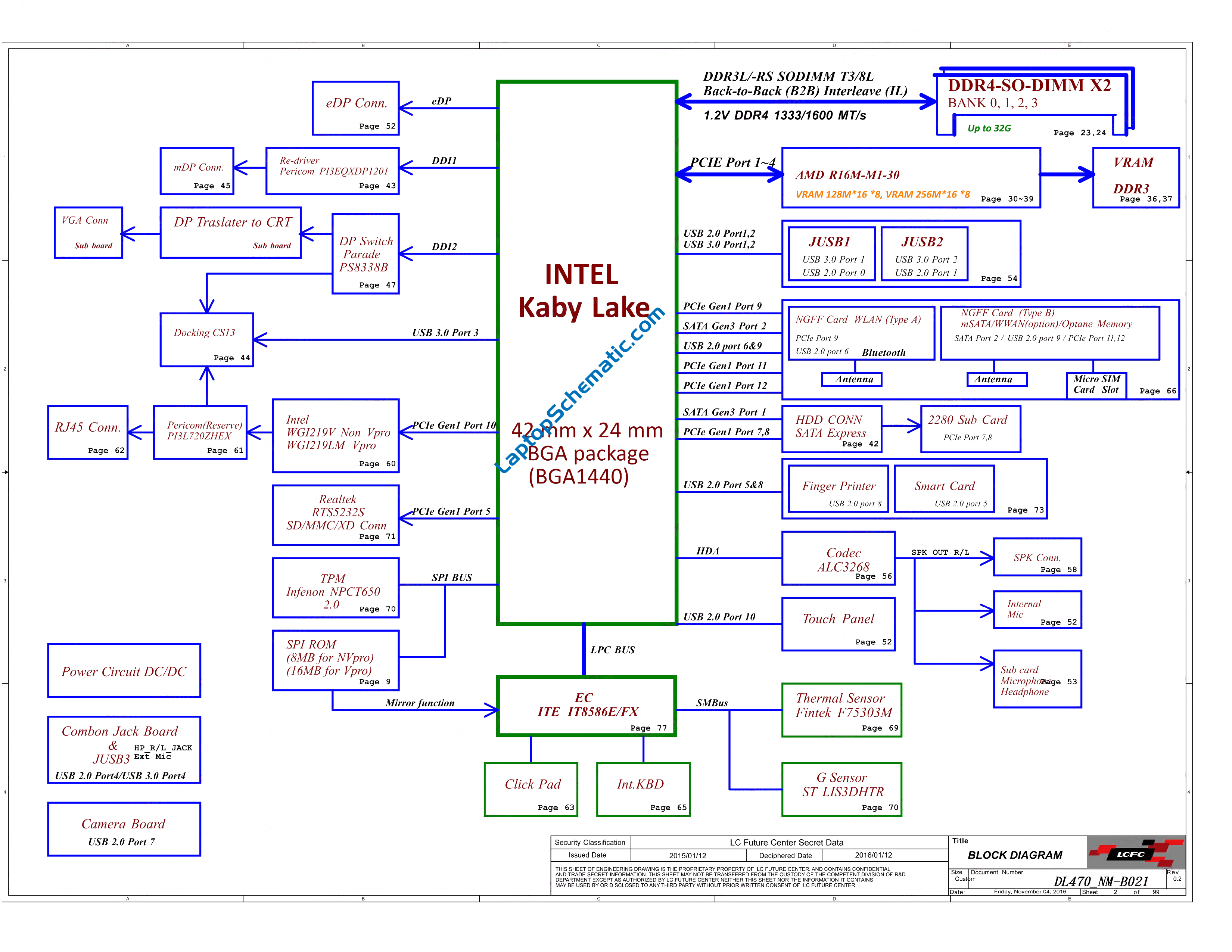

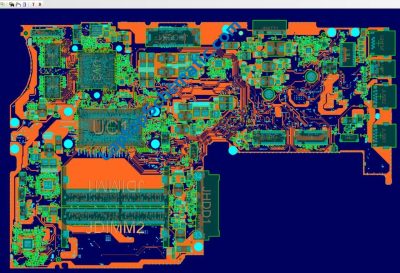

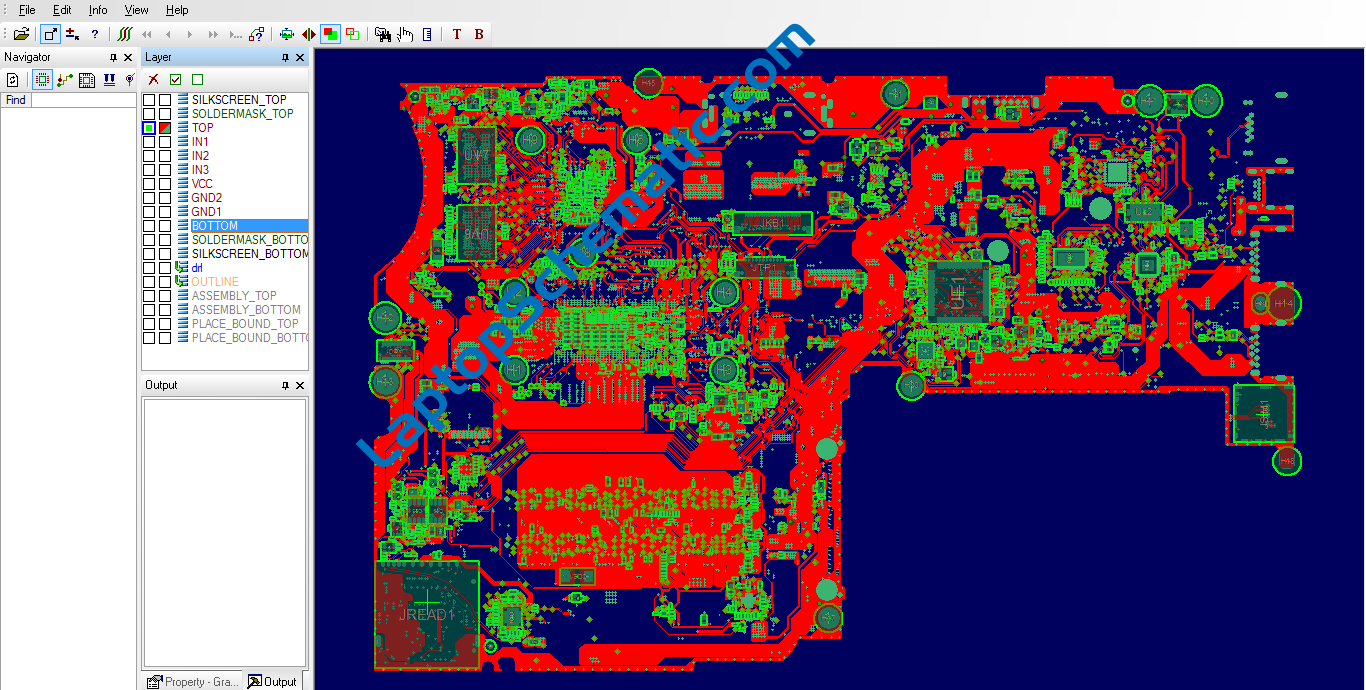

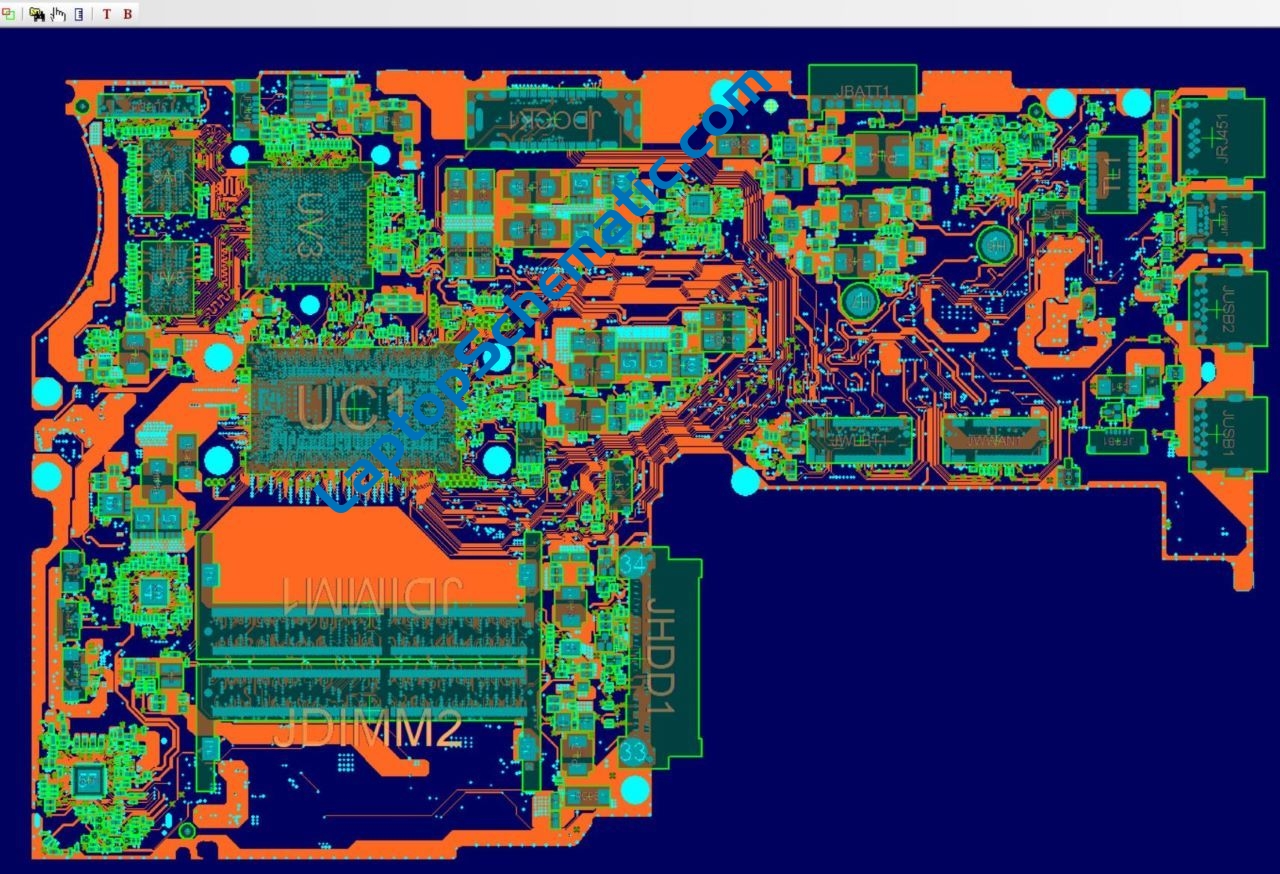

The motherboard schematic diagram & BoardView (.BRD) for Lenovo ThinkPad L470 laptop/notebook, DL470

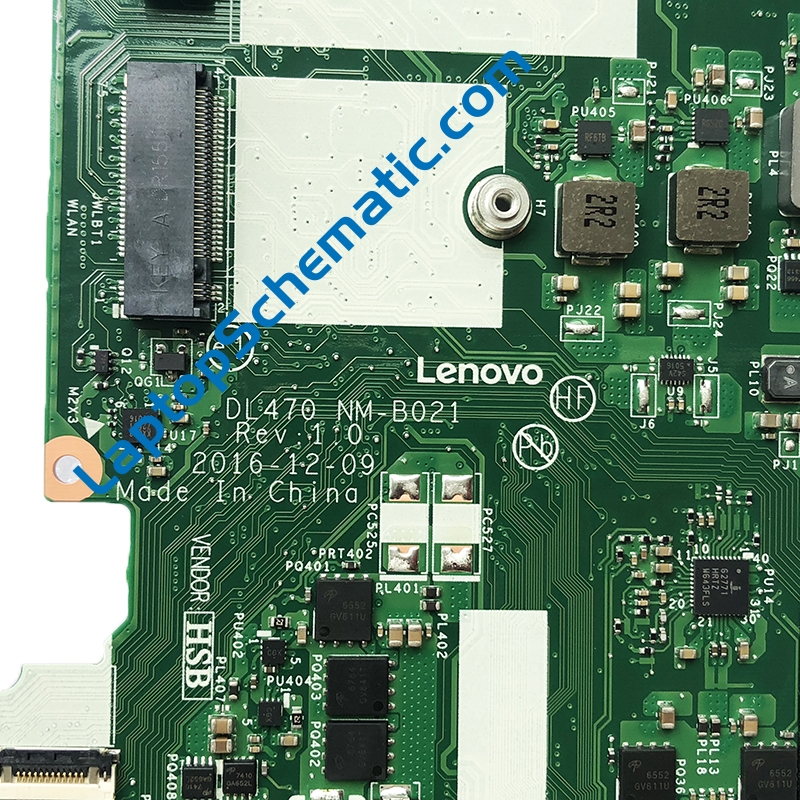

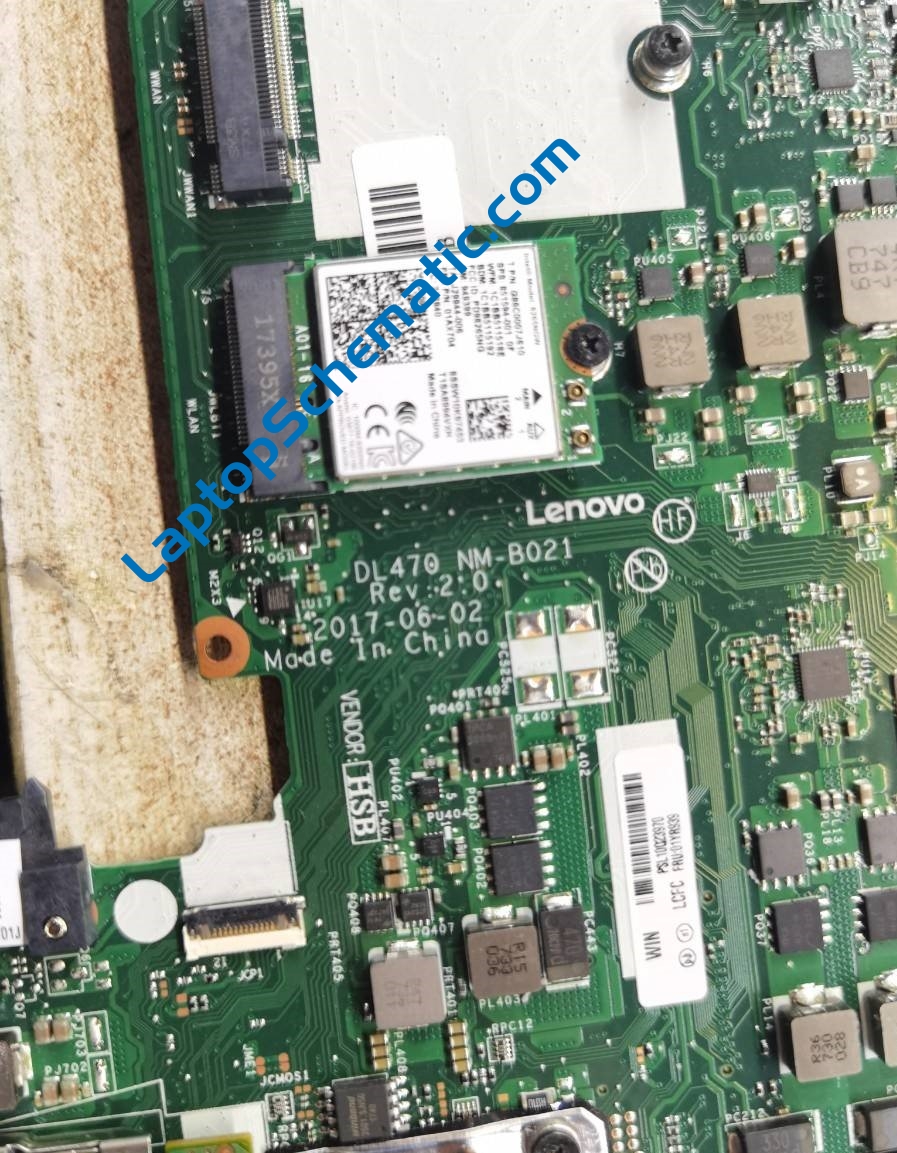

(L470 ) NM-B021 RevO.1 Schematic, Intel KabyLake Processor with DDR4 + PCH, AMD R16M-M1-30, DL470 NM-B021 motherboard
CPU/RAM: Intel Kabylake + DDR4
GPU: AMD R16M-M1-30 (DIS)
EC: ITE IT8586E/FX
Document Number: DL470_NM-B021
OEM: LCFC
Format: PDF
No watermark of website
Language: English
Total Pages: 99
File size: 45.7MB
Sale Price: 16.5$ (include Boardview)
