Lenovo ThinkPad T420 schematic, NOZOMI-3 DIS

Lenovo Schematics

The motherboard schematic for Lenovo ThinkPad T420 (DIS) laptop/notebook.
BASE LOGIC :NZM3 SWG SDV
NZM3H-2
VER 1.22
CPU: Sandy Bridge + DDR3
Chipset: PCH COUGAR_POINT
OEM: Flex Computing
Project Name: NOZOMI-3 SWG SDV2
Rev: 2.10
Format: PDF
Total Pages: 99
Sale Price: 11.5$

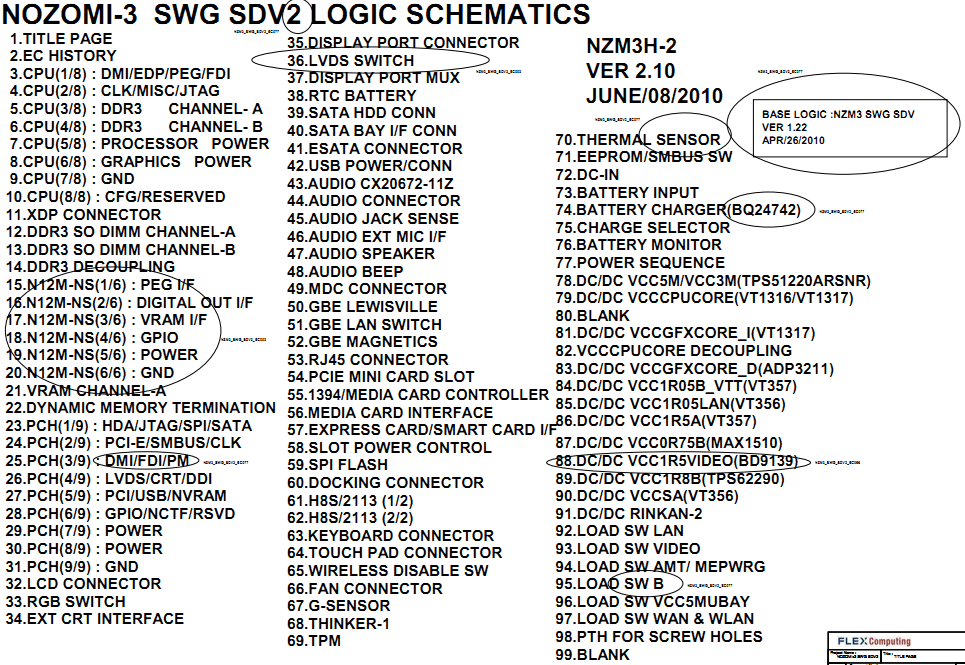

NOZOMI-3 SWG SDV2 LOGIC SCHEMATICS:
NOZOMI-3 SWG SDV2 LOGIC SCHEMATICS

NOZOMI-3 SWG SDV2 LOGIC SCHEMATICS
