Lenovo ThinkPad W520 schematic, 10222-SA Kendo-3 Workstation

The motherboard schematic for Lenovo ThinkPad W520 laptop/notebook, Wistron Kendo-3 WS Mainboard.
CPU: Intel SandyBridge (QC)
Discrete VGA NVIDIA N12P-Q1/Q3
Chipset: Intel PCH Cougar Point
Project code : 91.4KE01.001
PCB (Raw Card): 10222-SA
Document Number: Kendo-3 WS
Rev: SA
Format: PDF
Total Pages: 107
File size: 4.05MB
Sale Price: 11.5$

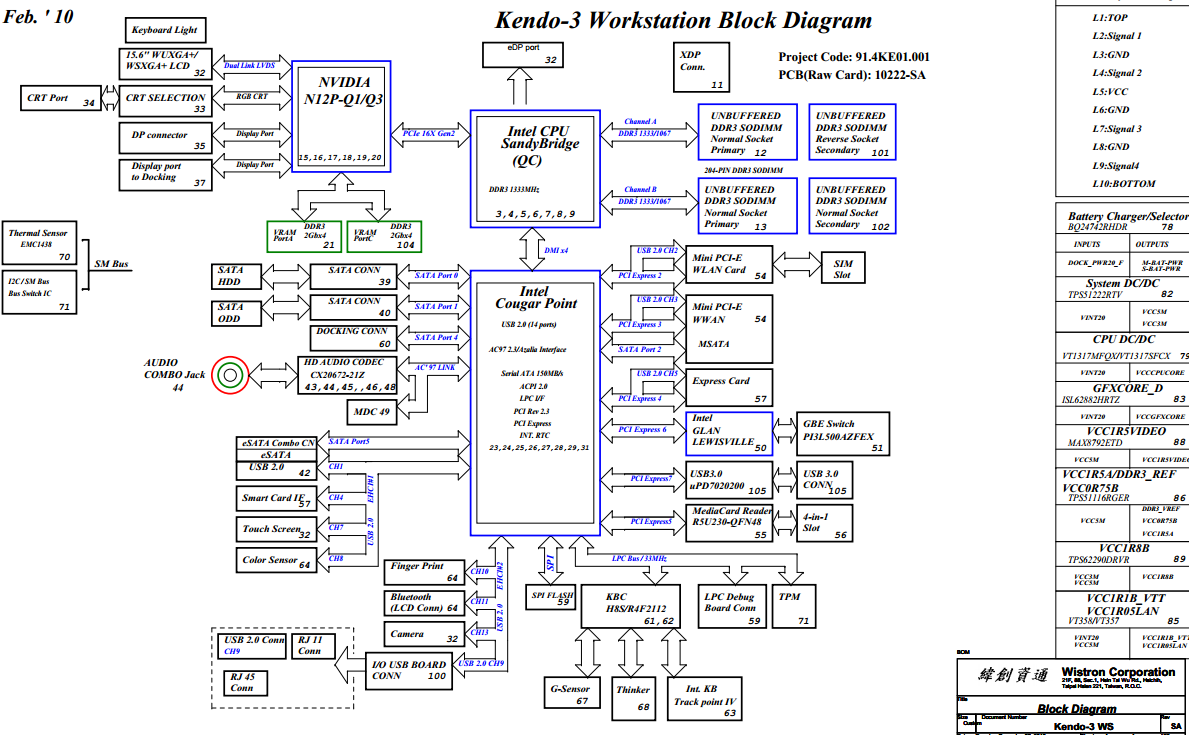

Lenovo ThinkPad W520 Block Diagram:
