HP DV4 Series schematic,Intel UMA, JAL50 LA-4105P

The motherboard schematic for HP DV4 Intel Series laptop/notebook, JAL50 Mainboard Compal LA-4105P. HP DV4 Series: DV4-1000 series, DV4-1601TU,…
CPU: Mobile Penryn
North Bridge: Intel Cantiga MCH
South Bridge: Intel ICH9-M
Discrete Nvidia NB9M-GE
OEM: Compal Electronics
Document Number: Montevina Blade UMA LA4105P
Rev: 1.0
Format: PDF
Total Pages: 45
File size: 1.48MB
Sale Price: 9.5$

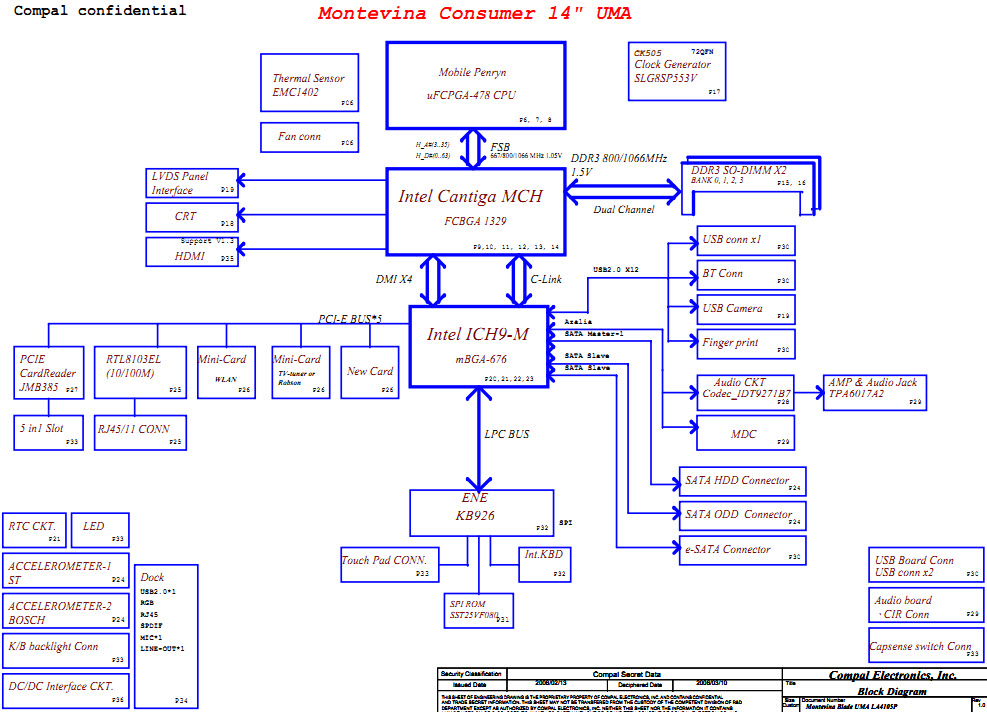

HP DV4 Series (LA-4105P) Block Diagram:
HP DV4 Series (LA-4105P) Block Diagram

HP DV4 Series (LA-4105P) Block Diagram
