Lenovo IdeaPad Y480 schematic, Compal LA-8001P

The motherbord schematic for Lenovo IdeaPad Y480 notebook/laptop, QIWY3 Mainboard Compal LA-8001P, QIWY3 M/B Schematics Document.
CPU: Intel IVY Bridge
Discrete VGA nVIDIA N13P-GT/GL1
Chipset: Intel Panther Point PCH
OEM: Compal Electronics, Inc.
File Name: Y480
Document Number: QIWY3 LA-8001P
Rev: 1.0
Format: PDF
Total Pages: 64
File size: 1.27MB
Sale Price: 13.5$

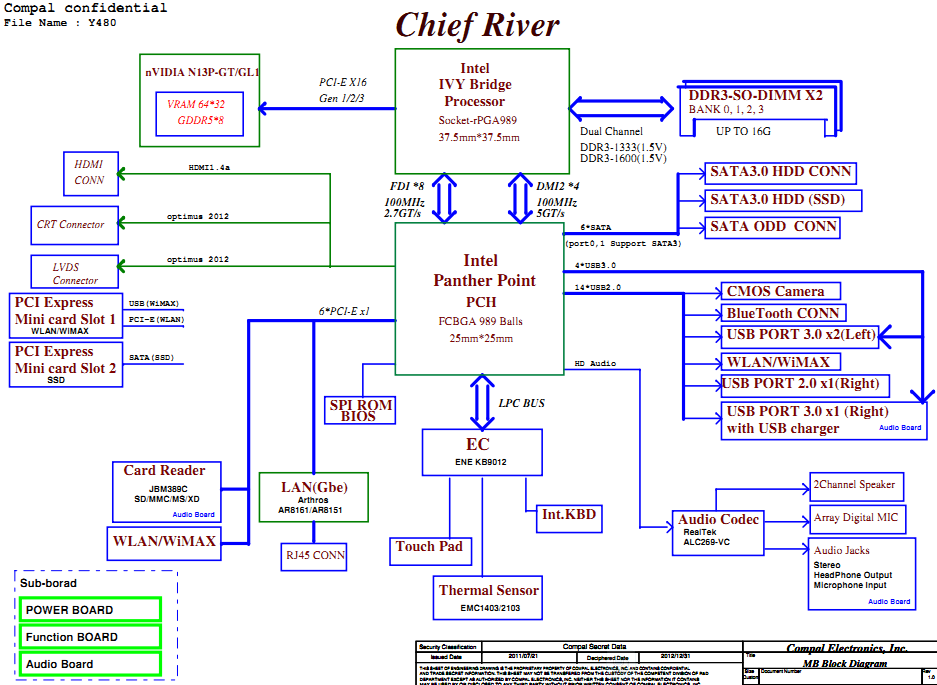

Lenovo IdeaPad Y480 (LA-8001P) Block Diagram:
