Lenovo IdeaPad Y485 schematic, QAWYA LA-8641P

The motherboard schematic diagram for Lenovo IdeaPad Y485 laptop/notebook, QAWYA Mainboard Compal LA-8641P, QAWYA M/B Schematics Document, AMD Fs1r2 Processor with DDRIII + Husdon M3 FCH, AMD VGA ThamesXTX.
CPU: AMD FS1r2 APU Trinity + DDR3
VGA AMD Thames XTX
Chipset: Hudson M3
OEM: Compal Electronics, Inc.
File Name : Y485
Document Number: LA8641P
Format: PDF
REV: 0.2
Total Pages: 55
File size: 1.40MB
Sale Price: 10.5$

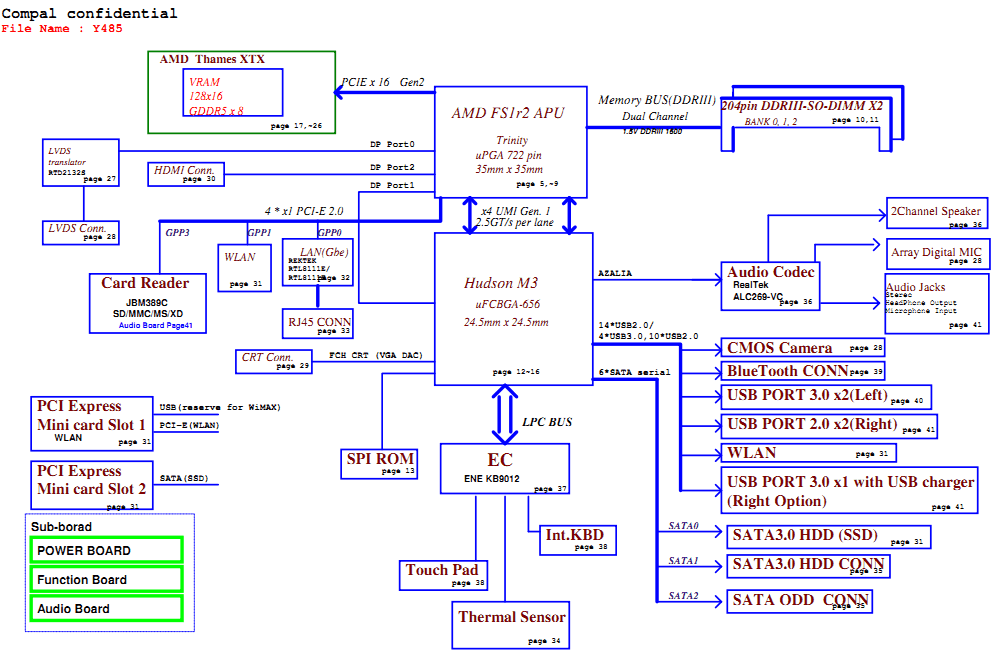

Lenovo IdeaPad Y485 Block Diagram:
