Lenovo Thinkpad R500 (Discrete VGA) schematic, Waikiki-3 EXT SIT

The schematic diagram for Lenovo Waikiki-3 (Discrete VGA) laptop/notebook, Waikiki-3 EXT SIT LOGIC SCHEMATIC 20080303.
CPU: Penryn
North Bridge: Calistoga + GPU M82-S
South Bridge: ICH9-M
OEM: Lenovo
Part No: 44C4375
EC No: L53618
Title: Waikiki-3 EXT SIT
Format: PDF
Total Pages: 101
File Size: 1.65MB
Sale Price: 9.5$

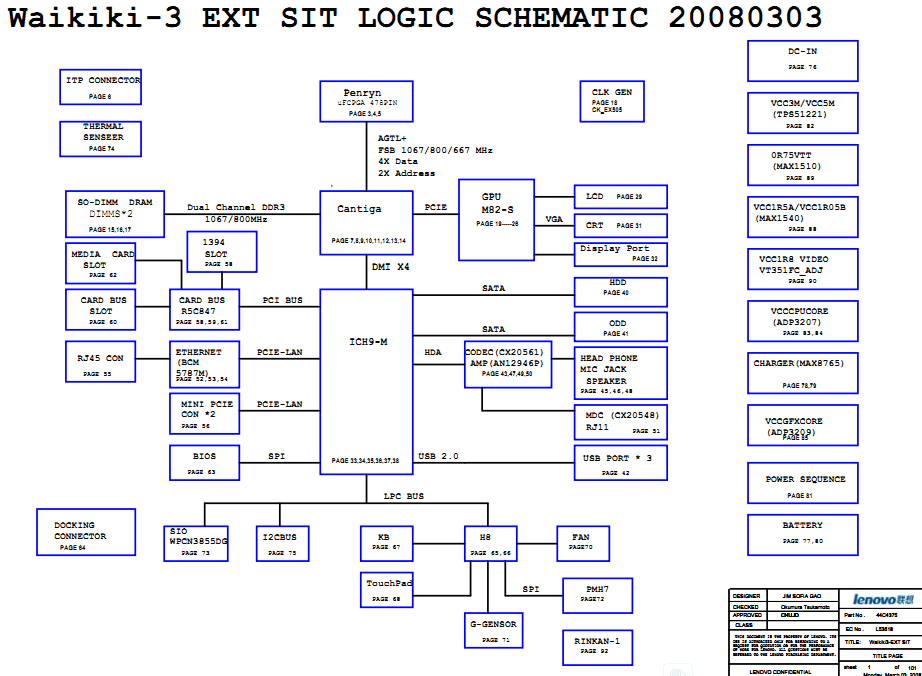

Lenovo Thinkpad R500(Waikiki-3 EXT SIT) Block Diagram:
