Lenovo Thinkpad R500 (Intergated) schematic, Waikiki-3 INTEG SIT

The schematic diagram for Lenovo Waikiki-3 laptop/notebook, Waikiki-3 INTEG SIT LOGIC SCHEMATICS.
CPU: Penryn
North Bridge: Calistoga
South Bridge: ICH9-M
OEM: Lenovo
Part No: 44C4371
EC No: L53618
Title: Waikiki3_INT SIT
Format: PDF
Total Pages: 101
File Size: 1.44MB
Sale Price: 9.5$

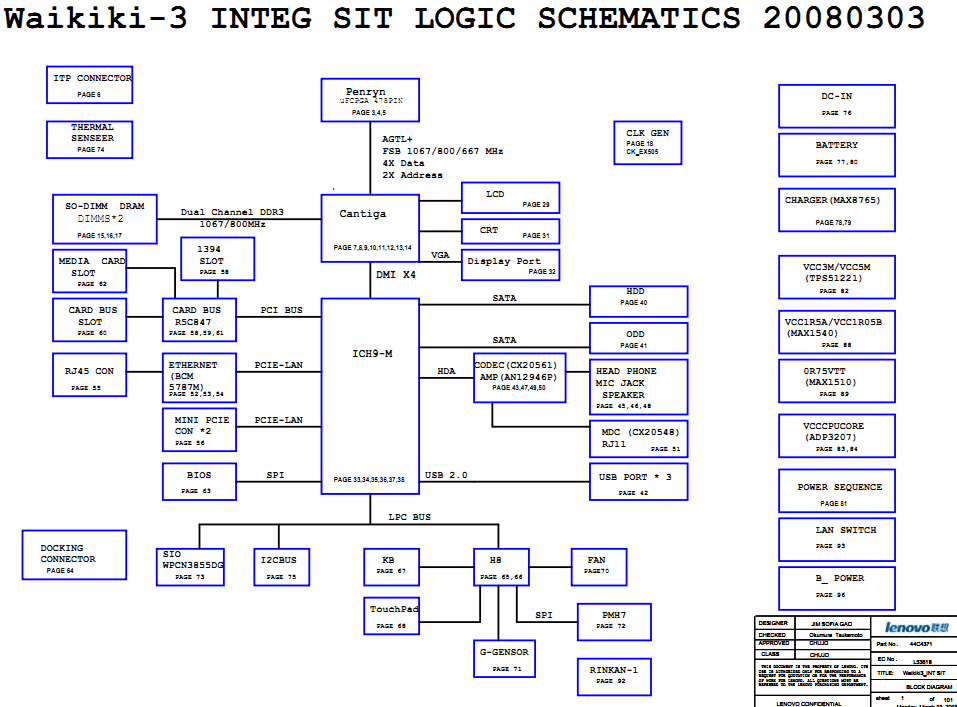

Lenovo Thinkpad R500 (Intergated) Block Diagram:
