Lenovo Thinkpad X270 Schematic & Boardview, NM-B061

The motherboard schematic and Boardview (*.brd and PDF file) for Lenovo Thinkpad X270 laptop/notebook, LCFC WolVerine4, NM-B061.
CPU: Intel Kabylake-U
Project: DX270
BOARD NO: NM-B061
OEM: LCFC
Document Number: WolVerine4 UMA
Schematic Format: PDF
Boardview Format: brd (allegro free viewer), PDF
Sale Price: 12.5$ (include Boardview)

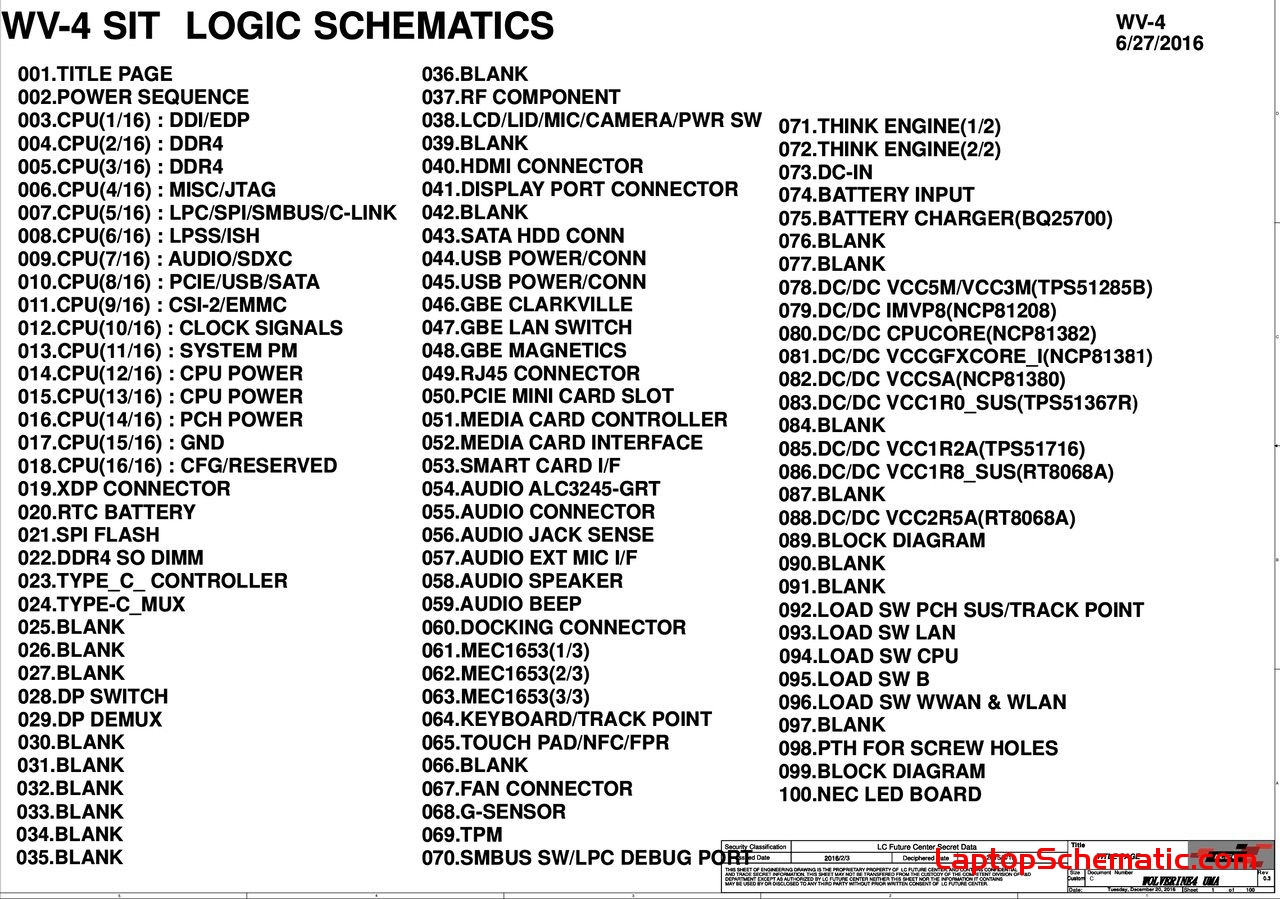

Thinkpad X270 Schematic:

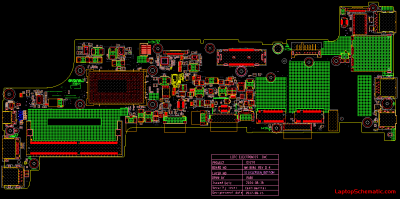

Thinkpad X270 Boardview:
