Lenovo V310-14ISK V310-15ISK Schematic & Boardview, LV6 DA0LV6MB6F0

The motherboard schematic diagram & BoardView (.BRD) for Lenovo V310-14ISK, Lenovo V310-15ISK laptop/notebook, LV6 DA0LV6MB6F0 motherboard.
Intel Skylake-U SoC with DDR4
GPU: UMA or DIS (AMD R16M-M1-30)
EC: IT8886
Project: LV6
OEM: Quanta
Format: PDF
Searchable PDF file, No watermark of website
Language: English
Total Pages: 61
Sale Price: 16.5$ (include Boardview)

Also included:
— Boardview file and BoardView software
— Power Sequence Timing Diagram

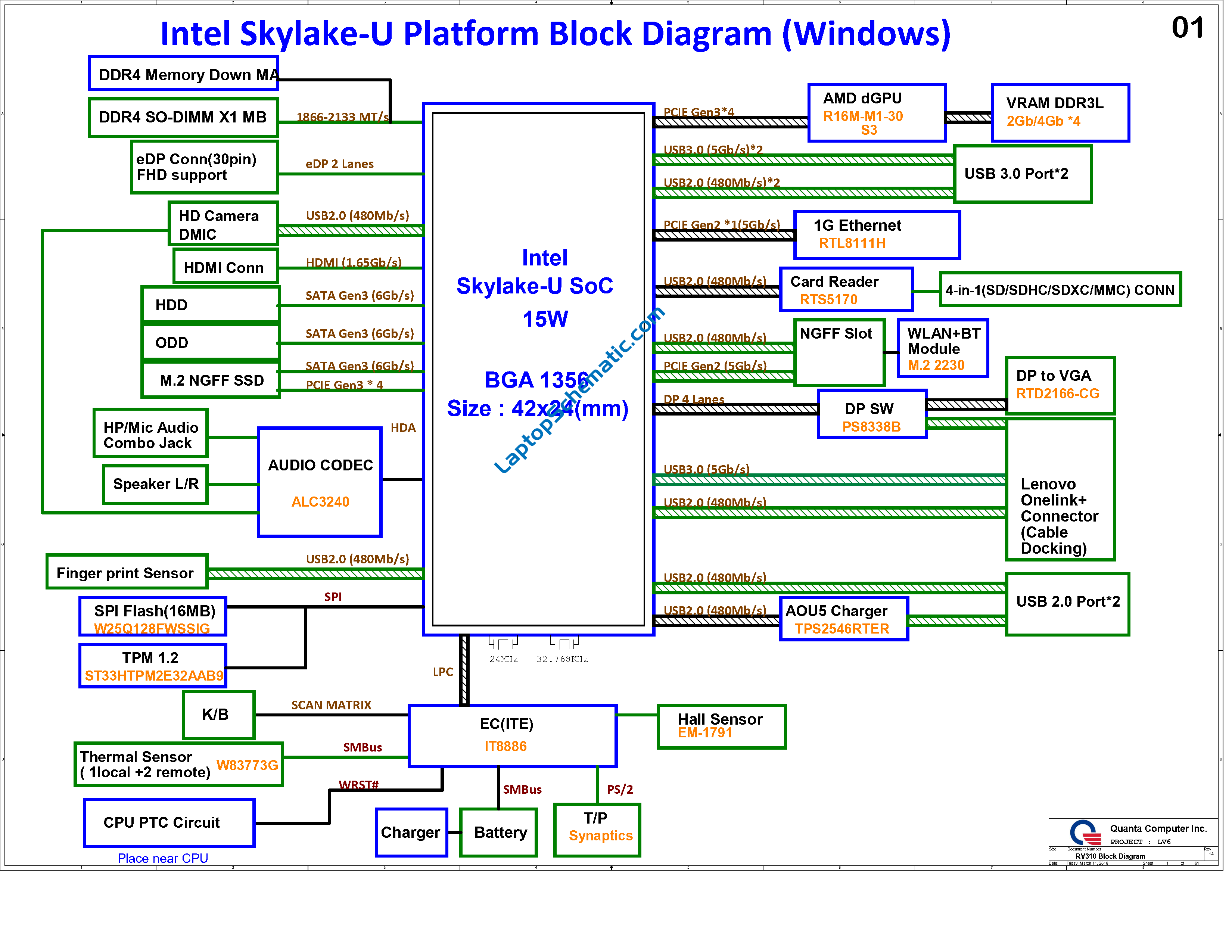

Lenovo V310-14ISK V310-15ISK LV6 DA0LV6MB6F0 schematic Block Diagram:

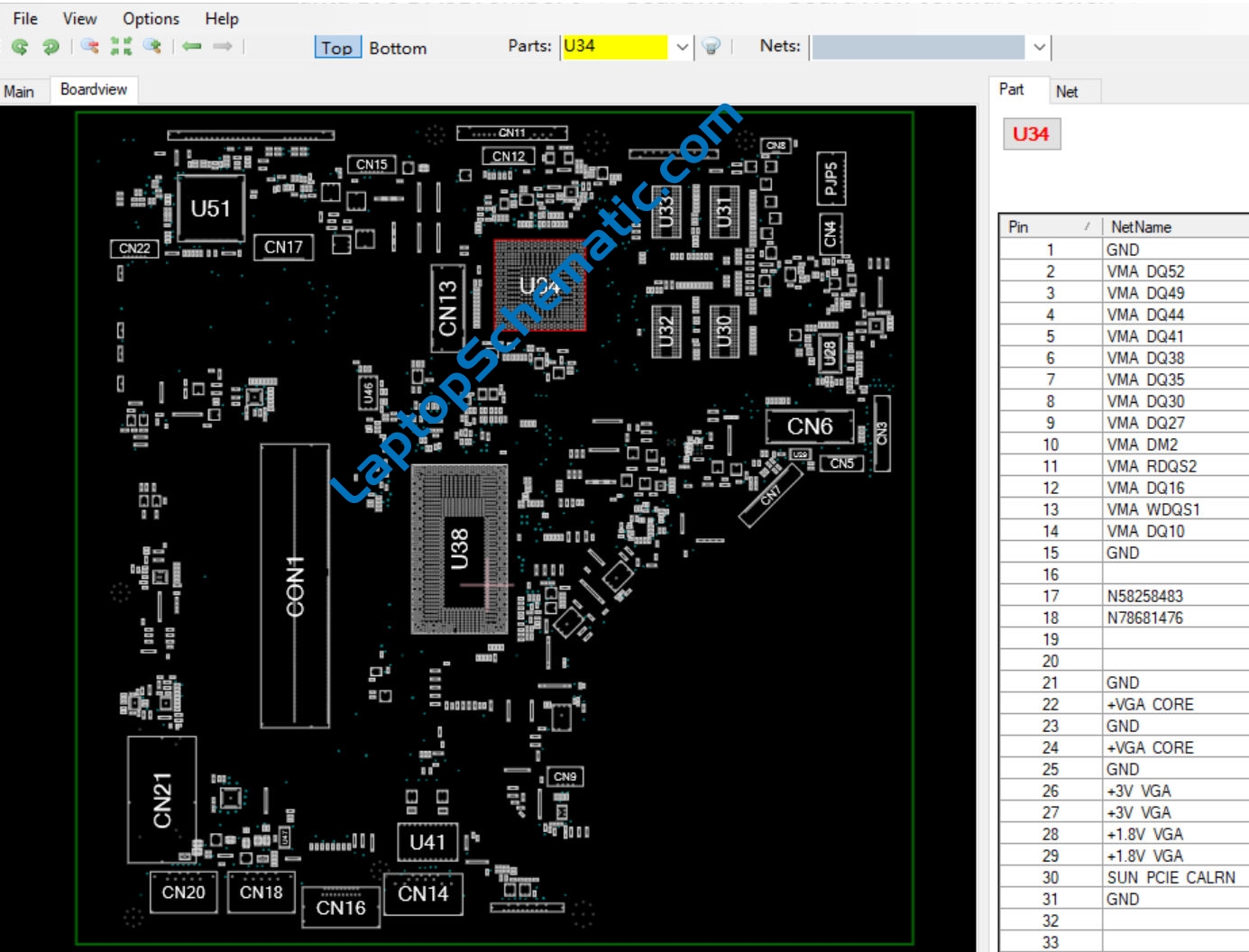

Lenovo V310-14ISK V310-15ISK LV6 DA0LV6MB6F0 BoardView:

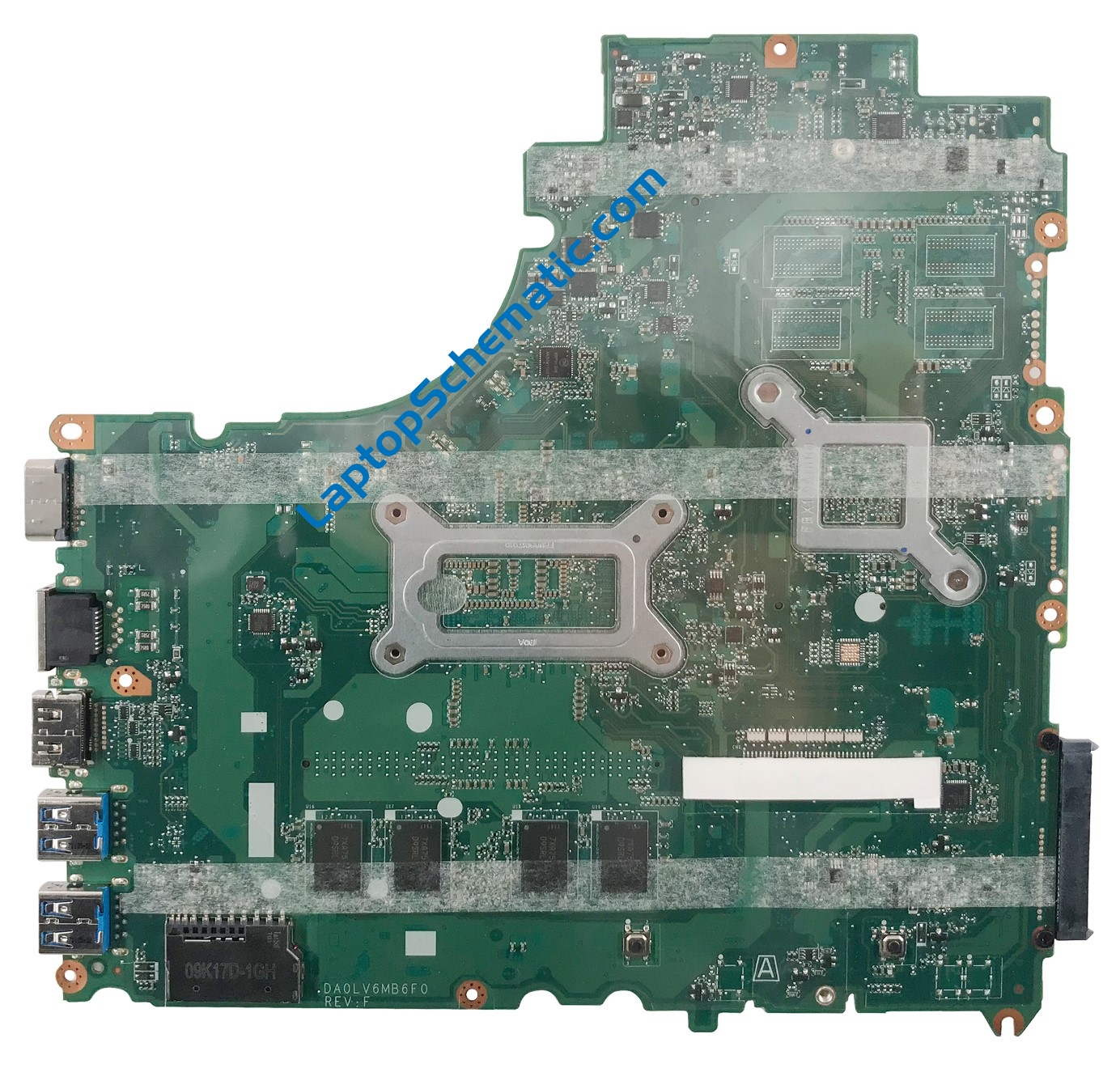

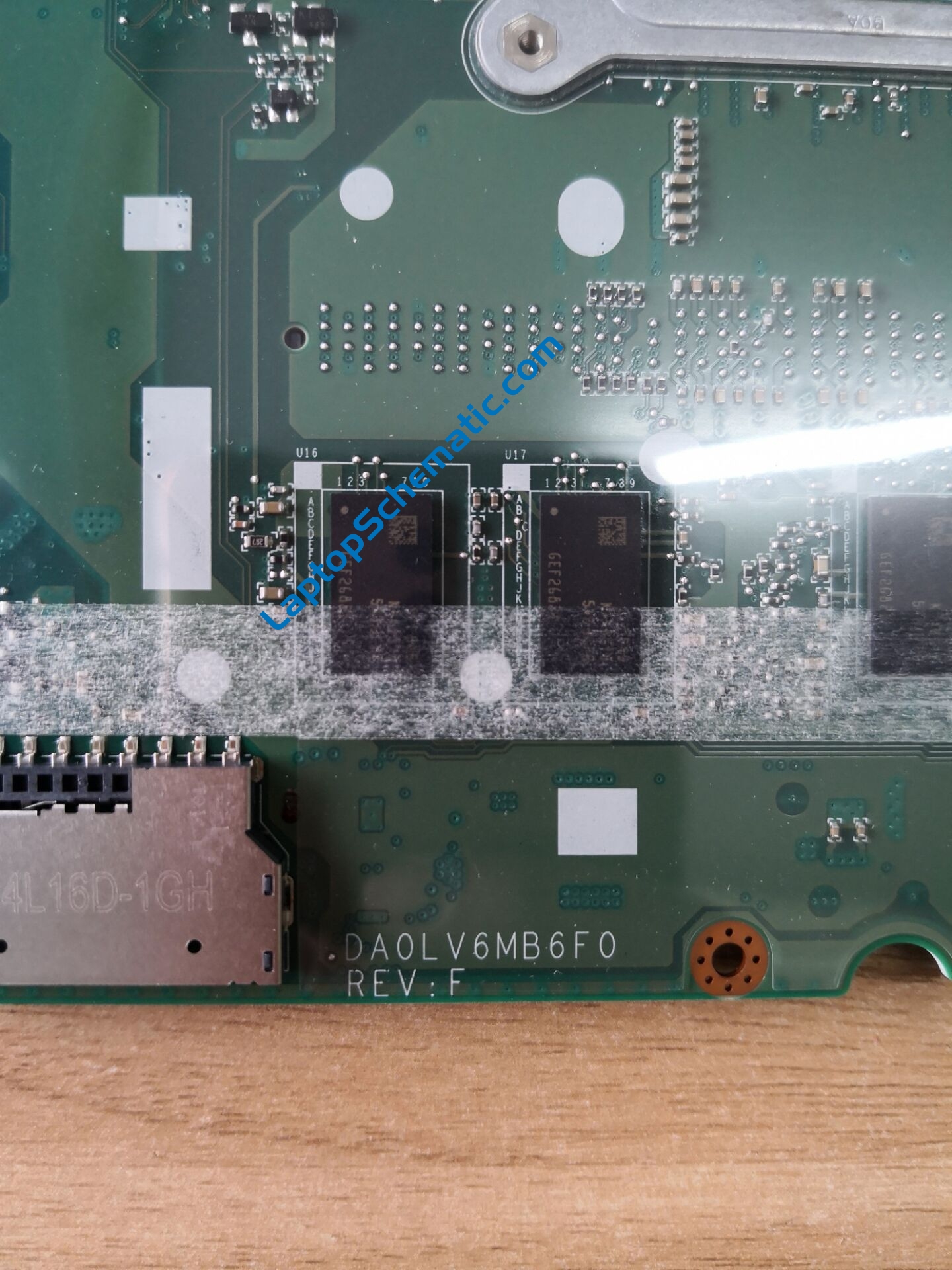

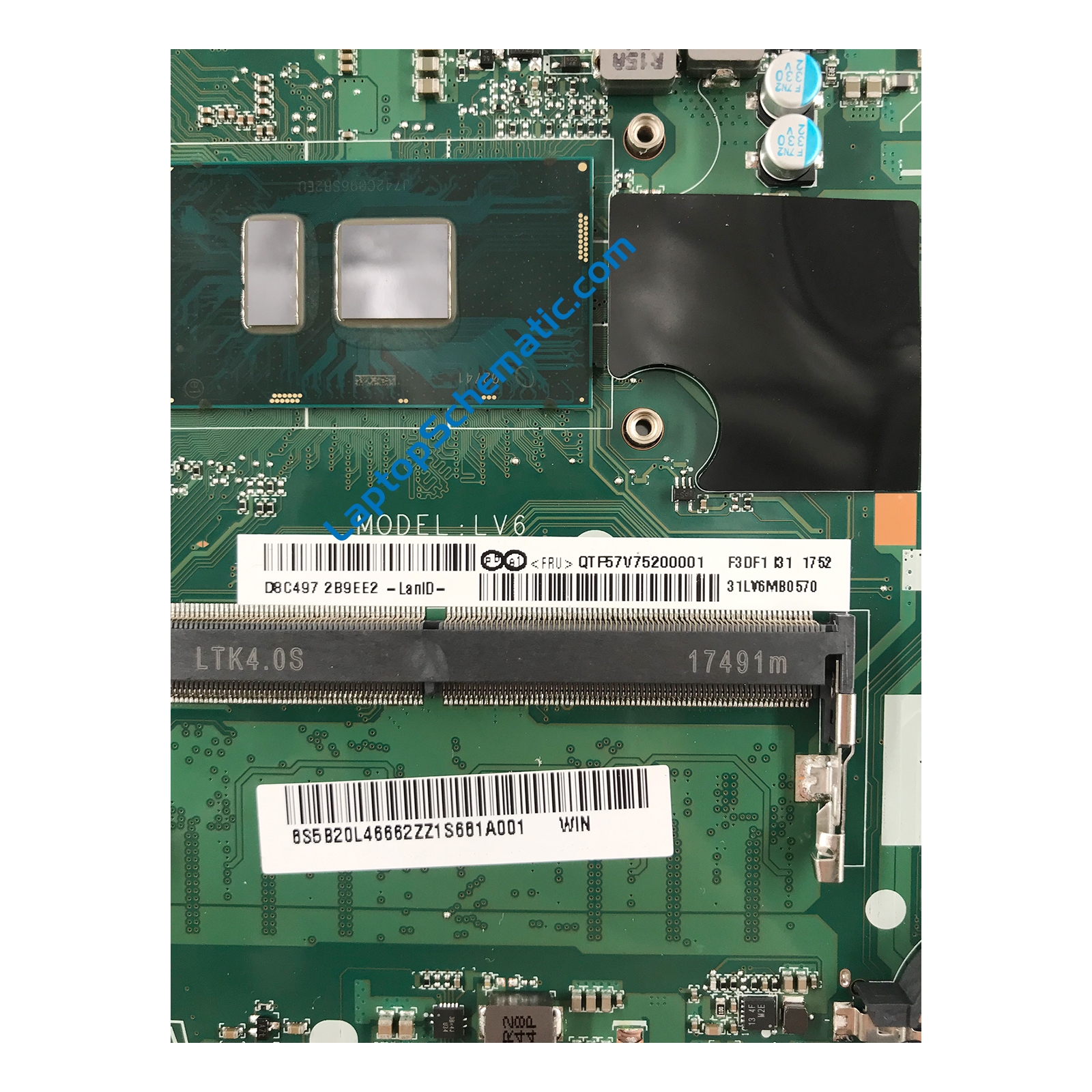

Lenovo V310-14ISK V310-15ISK LV6 DA0LV6MB6F0 Motherboard:
